1/05
4-59
DocuColor 12/DCCS50
REP 3.3.1
Repairs and Adjustments
Reissue

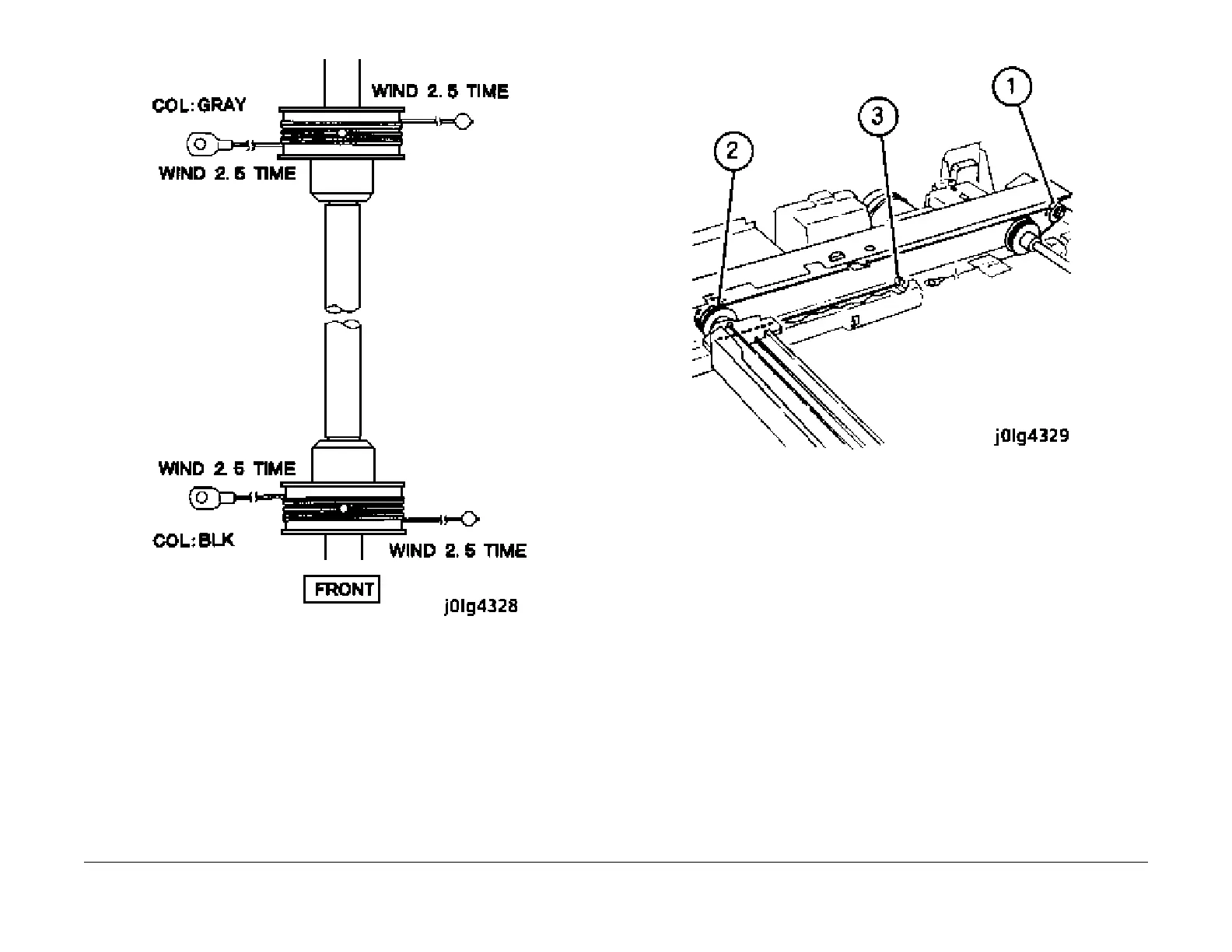

Figure 8 Carriage Cable Windings
2. Install the Carriage Cable (ball side) (Figu
re 9).
1. Hook the cable to the pulley (from bottom to top).
2. Hook the cable to the large pulley in the Half Rate Carriage (from top to bottom).
3. Insert the ball into the frame hole.
Figure 9 Installing the Carriage Cable (ball side)
3. Install the Carriage Cable (spring hook side) (F
igure 10).
1.
Hook the cable to the pulley (from bottom to top).
2. Hook the cable to the small pulley in the Half Rate Carriage (from bottom to top).
3. Hook the cable to the stud (from bottom to top).
4. Install the spring on the cable (spring hook side).
5. Hook the spring onto the frame.
To Next Page
