1/05
8d-139
DocuColor 12/DCCS50
PL 18.5
Finisher/Sorter
Reissue

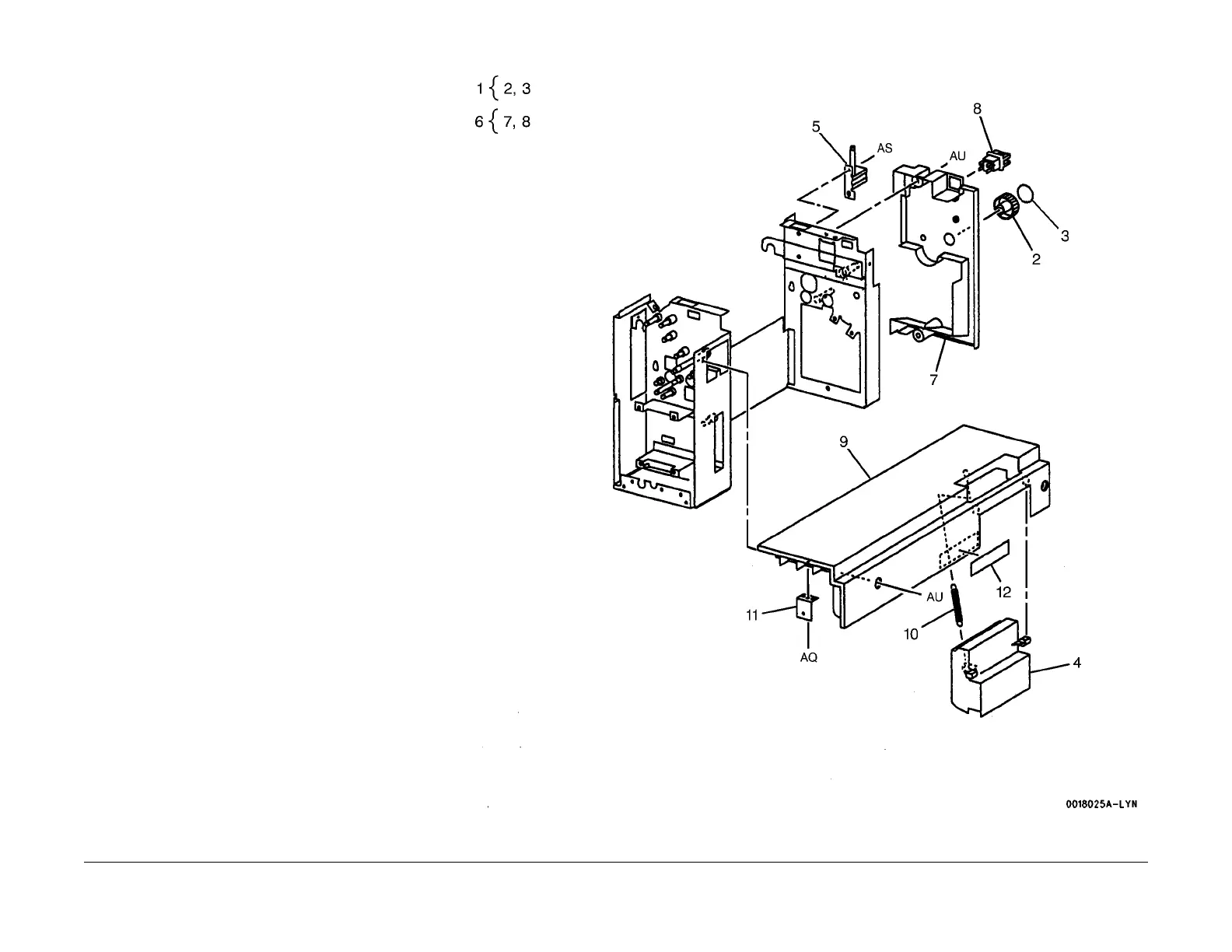

PL 18.5 Decurler Cover
Item Part Description
1 003K85570 Knob Assembly
2 003K83211 Knob
3 – Label (P/O PL 18.5 Item 1)
4 003E46501 Handle
5 003K85101 Hinge
6 048K77420 Decurler Inner Cover (REP
15.
3.14)
7 – D
ecurler Inner Cover (P/O PL 18.5
It
em
6)
8 110E97990 Decurler Door Interlock Switch
(RE
P 15.
3.25)
9 048E65730 Decurler Top Cover (REP 15.3.12)
10 809E02991 Spring
11 – Bracket (Not Spared)
12 – Label (Not Spared)
