Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-140
DocuColor 12/DCCS50
PL 18.6
Reissue
Finisher/Sorter

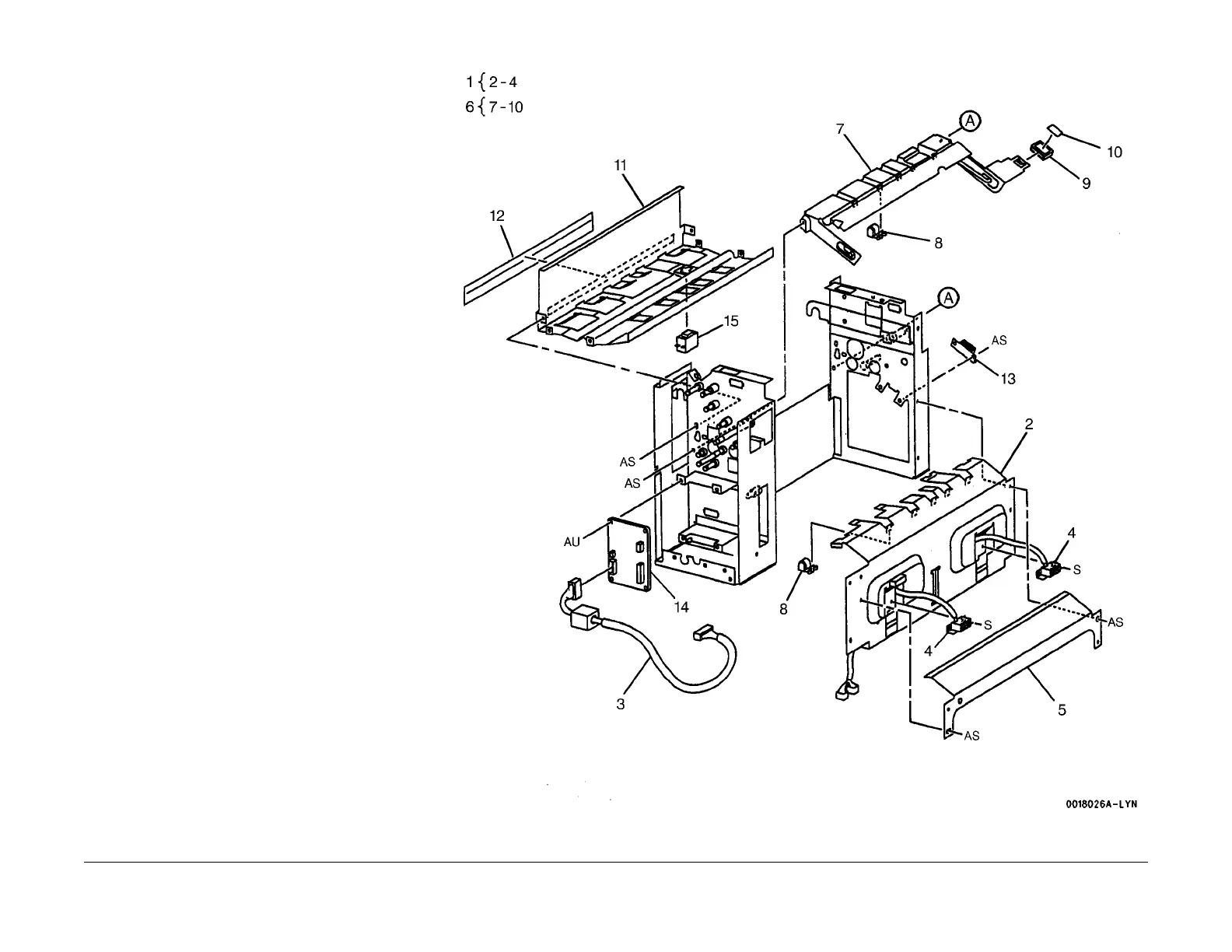

PL 18.6 Decurler Chute, PWB
Item Part Description
1 – Entrance Lower Chute (Not
Spar
ed)
2 – Entrance Lower Chute (P/O PL
18.
6 It
em 1)
3 – Wire Harness (Decurler PWB-Fin-
isher PWB) (P/O PL 18.6 Item 1)
4 – Docking Interlock Switch 1, Switch
2
(
P/O PL 18.6 Item 1) (REP
15.3.23)
5 054E14510 Chute
6 054K13920 Exit Lower Baffle Assembly
7 – Exit Lower Baffle (P/O PL 18.6
It
em
6)
8 059K08590 Pinch Roll (5 Places) (REP 15.1.6
RE
P 15.1.5)
9 003E362
90 Knob
10 – Label (5) (P/O PL 18.6 Item 6)
11 – Upper Chute (Not Spared)
12 105E09160 Static Eliminator
13 121E91450 Magnet Catch
14 160K67991 Decurler PWB (REP 15.1.7)
