8d-141
DocuColor 12/DCCS50
PL 18.7
Finisher/Sorter
Reissue

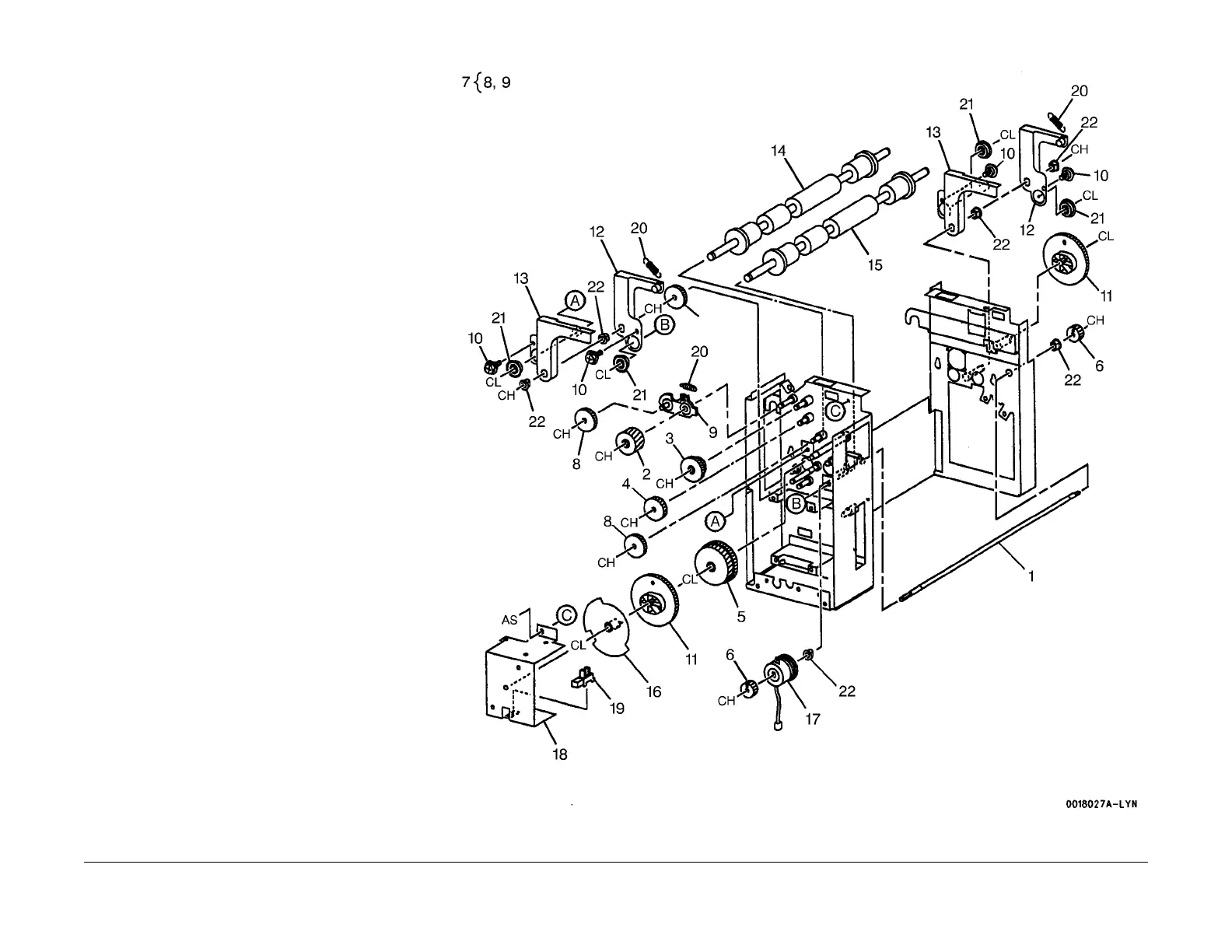

PL 18.7 Decurler Roll
Item Part Description
1 006E61320 Cam Drive Shaft (REP 15.1.8)
2 007E54990 Gear (32)
3 007E55010 Gear (28/33)
4 007E45131 Gear (32)
5 007E55030 Gear (52/56)
6 007E55040 Gear (20)
7 015K28141 Idler Gear Assembly
8 007E45091 Gear (32)
9 – Bracket (P/O PL 18.7 Item 7)
10 – Screw (Not Spared)
11 008E93390 Cam (REP 15.1.3)
12 011K94401 Front Lever
13 011K94411 Rear Lever
14 022K57120 Decurler Roll 1 (Upper) (REP
15.
1.2)
15 022K571
30 Decurler Roll 2 (Lower) (REP
15.
1.2)
16 062E987
11 Reflector (REP 15.1.3)
17 121K83981 Decurler Cam Clutch
18 – Sensor Bracket (Not Spared)
19 130E82530 Decurler Cam Position Sensor
20 809E14570 Spring
21 413W08350 Bearing
22 413W75959 Bearing
