Xerox DocuColor 12/DCCS50 User Manual

1/05
4-129
DocuColor 12/DCCS50
REP 8.4.1
Repairs and Adjustments
Reissue
4. Remove the screw.
5. Remove the bracket.

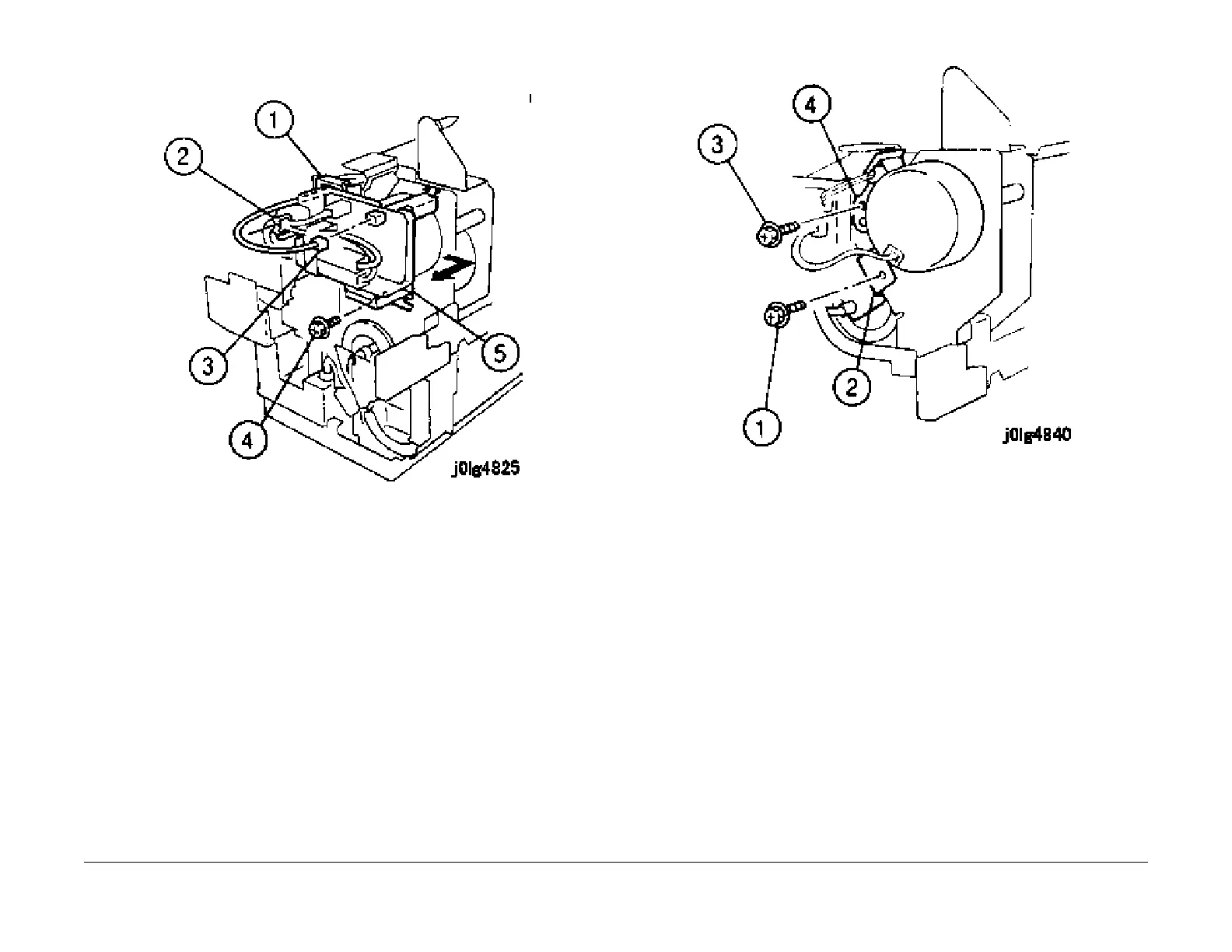

Figure 2 Remove the Bracket
6. Remove the sensor (Figure 3).
1.
Remove the screw.
2. Remove the bracket.
3. Remove the screw.
4. Remove the sensor.
Figure 3 Remove the Sensor
7. Remove the EXT-H/R Retract Motor (F
igure 4
).
1. Disconnect the connector.
2. Remove the screws (3).
3. Remove the stud screw.
4. Remove the bracket.
5. Remove the screws (2).
6. Loosen the set screw.
7. Remove the gear.
8. Remove the motor.
