1/05
4-130
DocuColor 12/DCCS50
REP 8.4.1
Reissue
Repairs and Adjustments

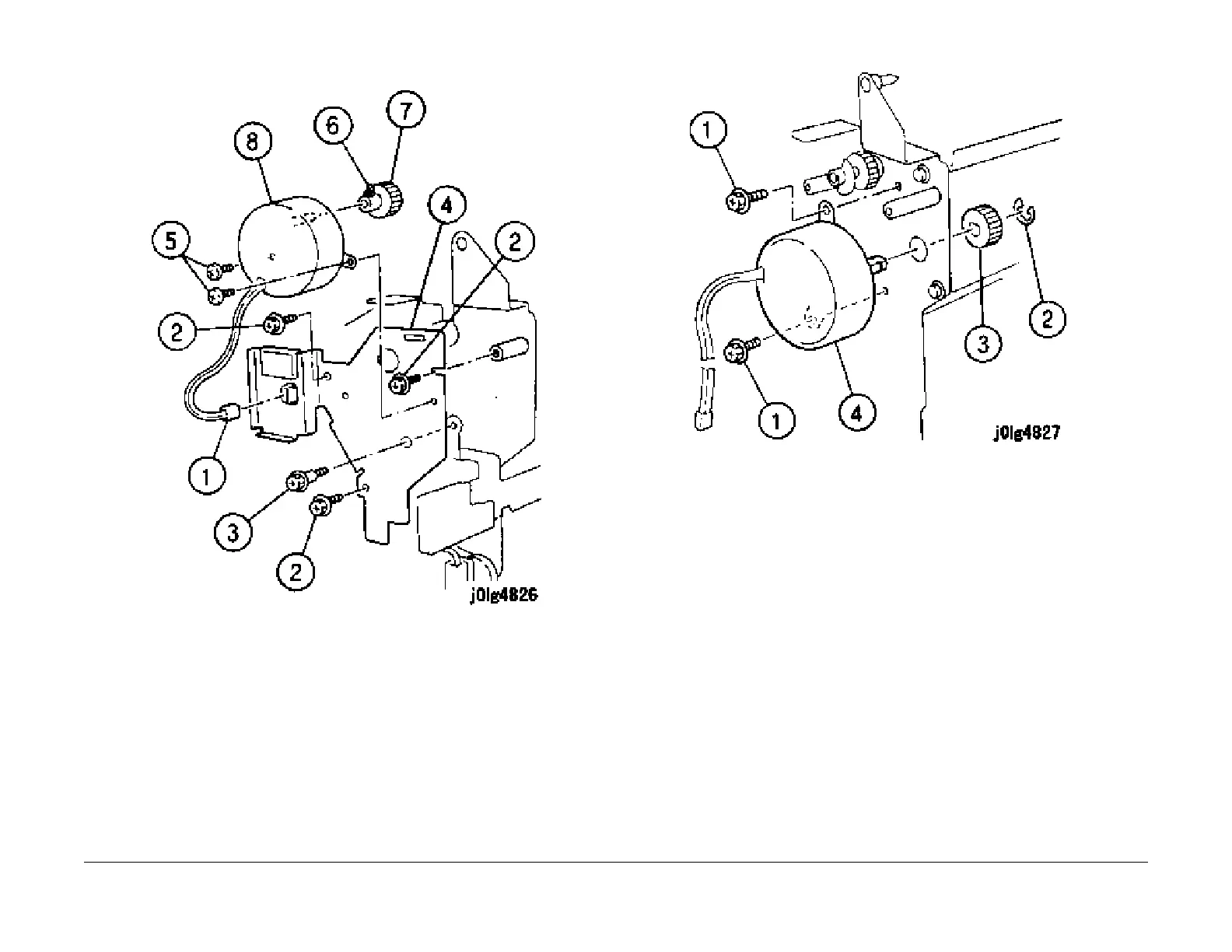

Figure 4 Remove the EXT-H/R Retract Motor
8. Remove the Web Motor (Figu
re 5).
1. Remove the screws (2).
2. Remove the E-clip.
3. Remove the gear.
4. Remove the Web Motor.
Figure 5 Remove the Web Motor
Installation
1. Reinstall the parts in the reverse order of disassembly.
