1/05
6-147
DocuColor 12/DCCS50
Installation Space Requirements
General Procedures
Reissue

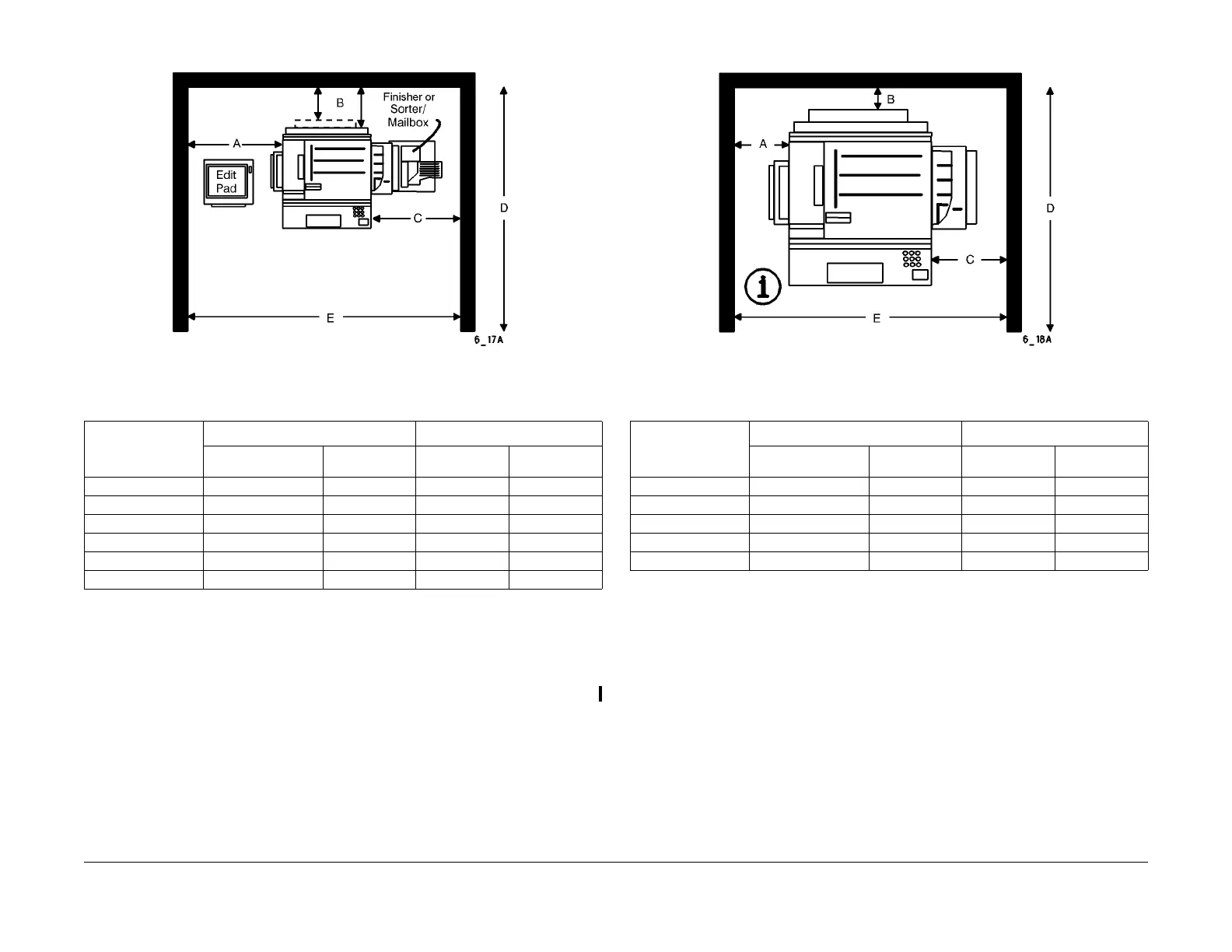

Figure 8 Installation Space Requirements with Sorter/Mailbox and Edit Pad (Left Side)
¹ Measured from the rear of processor if IDFE is not present.
² 106.5 in. (2705mm) if installed in hallway.
³ 110.5 in. (2807mm) if installed in hallway.
* 86.5 in. (2200mm) if installed in hallway.
** 90.5 in. (2300mm) if installed in hallway.
Installation Space Requirements without Accessories
(Figure 9)
Figure 9 Installation Space Requirements without Accessories (LP Only)
¹ Measured from the rear of Integrated Digital Front End.
² 110.5 in. (2807mm) if installed in hallway.
³ 90.5 in. (2300mm) if installed in hallway.
Installation Space Requirements with HCF
(Figure 10)
Table 8 Installation Space Requirements with Sorter/Mailbox and Edit Pad
Dimensions
Fixed Space Requirements Movable Space Requirements
in. mm in. mm
A 86.5 2185 86 2185
B ¹ 24 610 4 100
C 65.5 1665 65.5 1665
D w/o IDFE 91.5 ² 2324 ² 71.5 * 1816 *
D w/ IDFE 95.5 ³ 2426 ² 75.5 ** 1918 **
E 176 4470 176 4470
Table 9 Installation Space Requirements without Accessories (LP Only
Dimensions
Fixed Space Requirements Movable Space Requirements
in. mm in. mm
A 21 533 21 533
B ¹ 24 610 4 100
C 23 585 23 585
D 95.5 ² 2324 ² 71.5 ³ 1918 ³
E 68.5 1740 68.5 1740
