1/05
8d-156
DocuColor 12/DCCS50
PL 18.22
Reissue
Finisher/Sorter

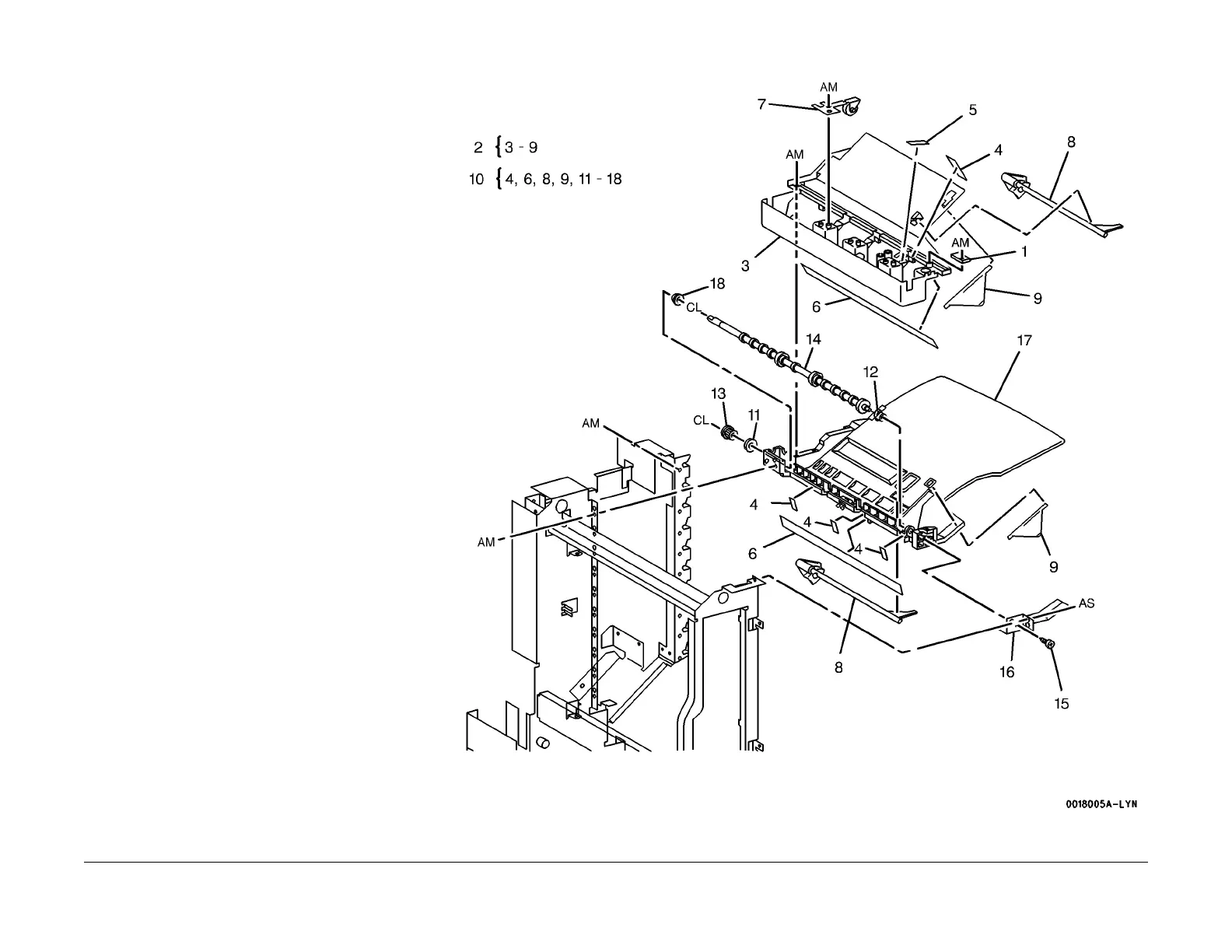

PL 18.22 Bin Tray 1
Item Part Description
1 160K53431 Vertical LED (REP 15.3.30)
2 802K09190 Bin Tray 1 Cover Assembly
3 – Bin Tray 1 Cover (P/O PL 18.22
It
em
2)
4 038E88980 Paper Guide
5 038E86180 Paper Guide
6 038E21280 Static Eliminator
7 022K43710 Pinch Roll (3 Places)
8 120E13130 Actuator
9 120E17020 Actuator
10 050K36832 Bin Tray 1 Assembly (REP
15.
3.31)
11 005E
83570 Collar
12 013E89540 Bearing
13 – Pulley (P/O PL 18.22 Item 10)
14 022E83451 Roll
15 – Tapping Screw (P/O PL 18.22 Item
10)
16 830E32600 Support
17 050E88781 Bin Tray
18 413W77559 Bearing
