Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-157
DocuColor 12/DCCS50
PL 18.23
Finisher/Sorter
Reissue

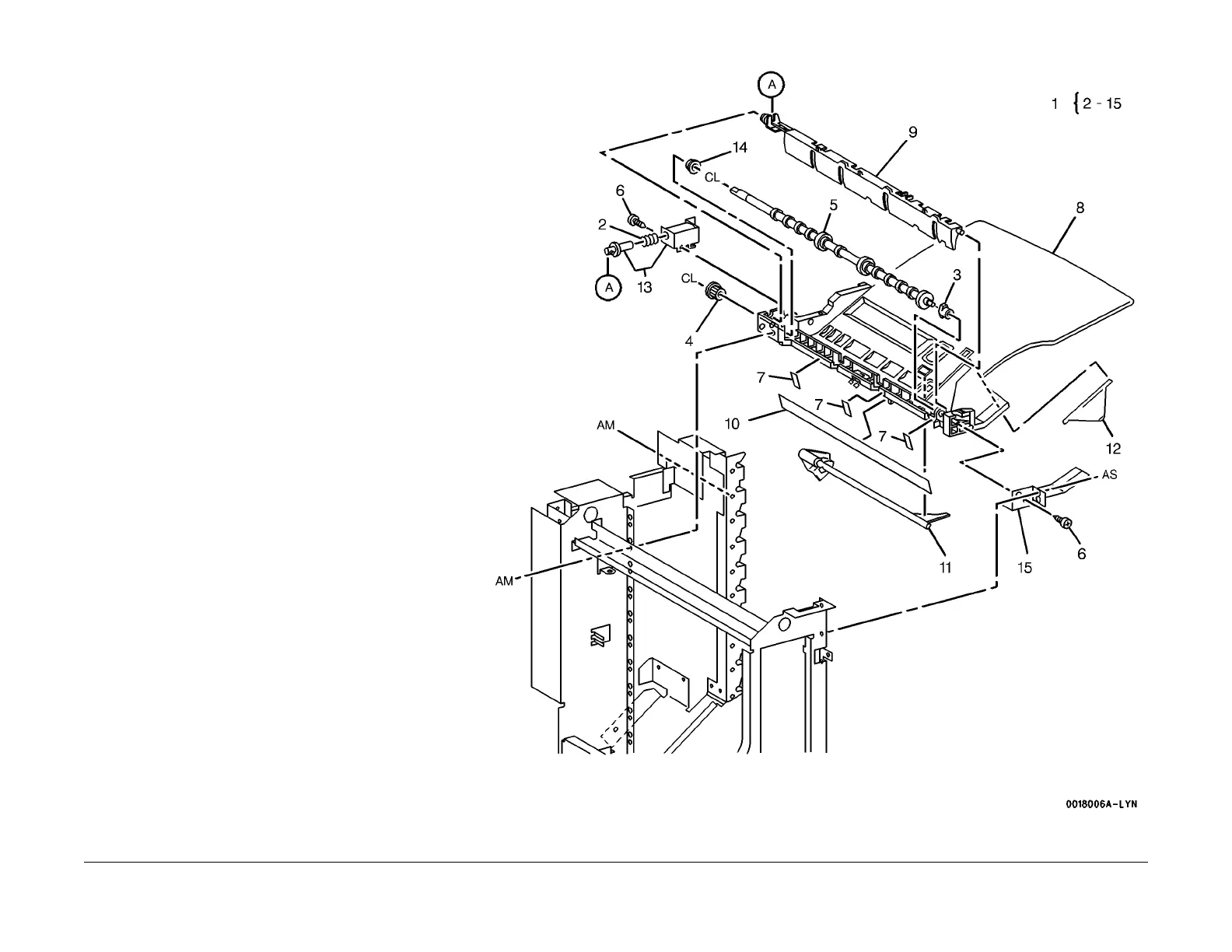

PL 18.23 Bin Tray 2/4/6/8
Item Part Description
1 050K36822 Bin Tray 2/4/6/8 Assembly (REP
15.3.32)
2 009E641
40 Spring
3 013E89540 Bearing
4 – Pulley (P/O PL 18.23 Item 1)
5 022E83451 Roll
6 – Tapping Screw (P/O PL 18.23 Item
1)
7 038E88980 Paper Guide
8 050E88781 Bin Tray
9 050K33220 Gate
10 – Static Eliminator (P/O PL 18.23
It
em
1)
11 120E13130 Actuator
12 120E17020 Actuator
13 121E83120 Gate Solenoid
14 413W77559 Bearing
15 830E32600 Support
