1/05
8d-158
DocuColor 12/DCCS50
PL 18.24
Reissue
Finisher/Sorter

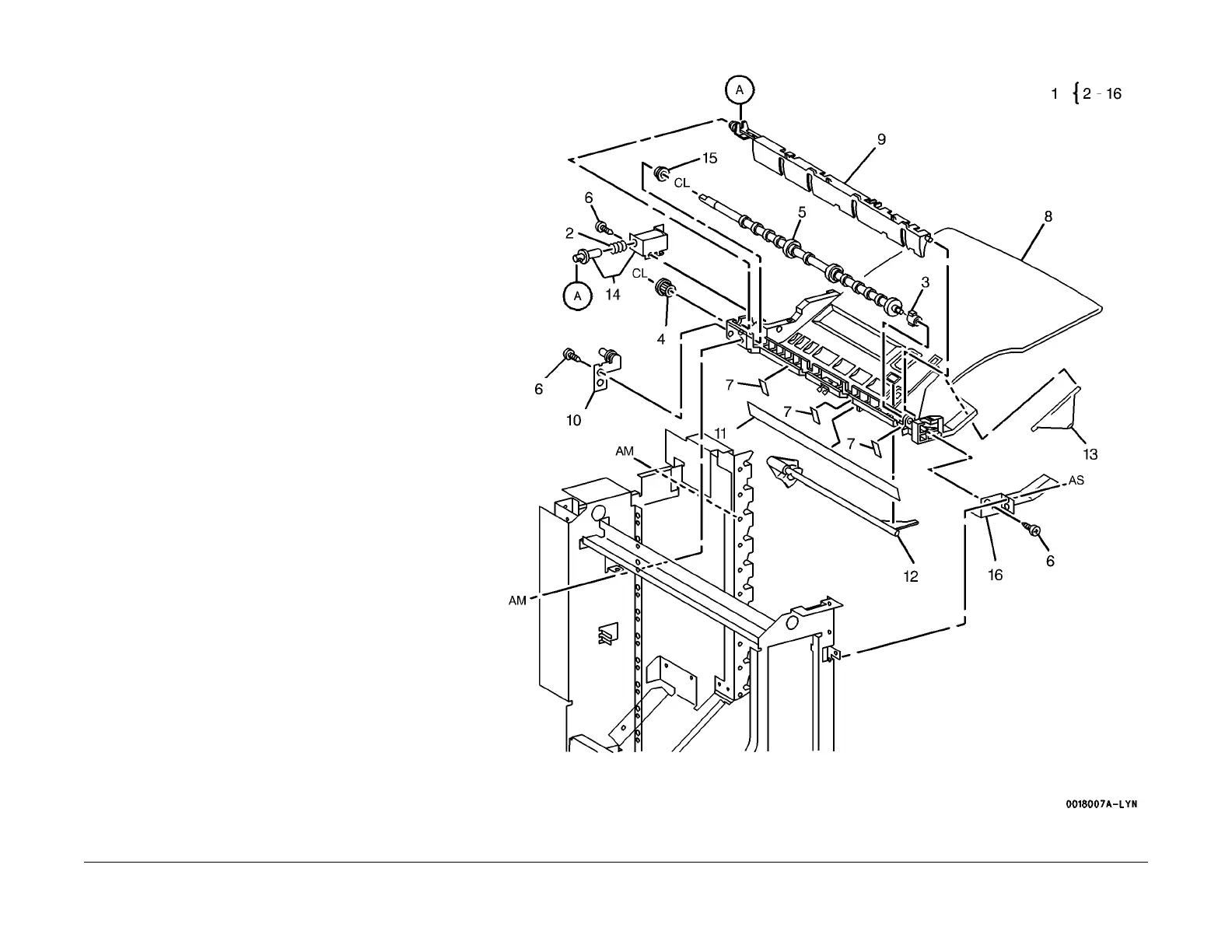

PL 18.24 Bin Tray 3/5/7/9
Item Part Description
1 050K36812 Bin Tray 3/5/7/9 Assembly (REP
15.3.32)
2 009E641
40 Spring
3 013E89540 Bearing
4 – Pulley (P/O PL 18.24 Item 1)
5 022E83451 Roll
6 – Tapping Screw (P/O PL 18.24 Item
1)
7 038E88980 Paper Guide
8 050E88781 Bin Tray
9 050K33220 Gate
10 059K13261 Idler Roll
11 – Static Eliminator (P/O PL 18.24
It
e
m
1)
12 120E13130 Actuator
13 120E17020 Actuator
14 121E83120 Gate Solenoid
15 413W77559 Bearing
16 830E32600 Support
