1/05
8d-159
DocuColor 12/DCCS50
PL 18.25
Finisher/Sorter
Reissue

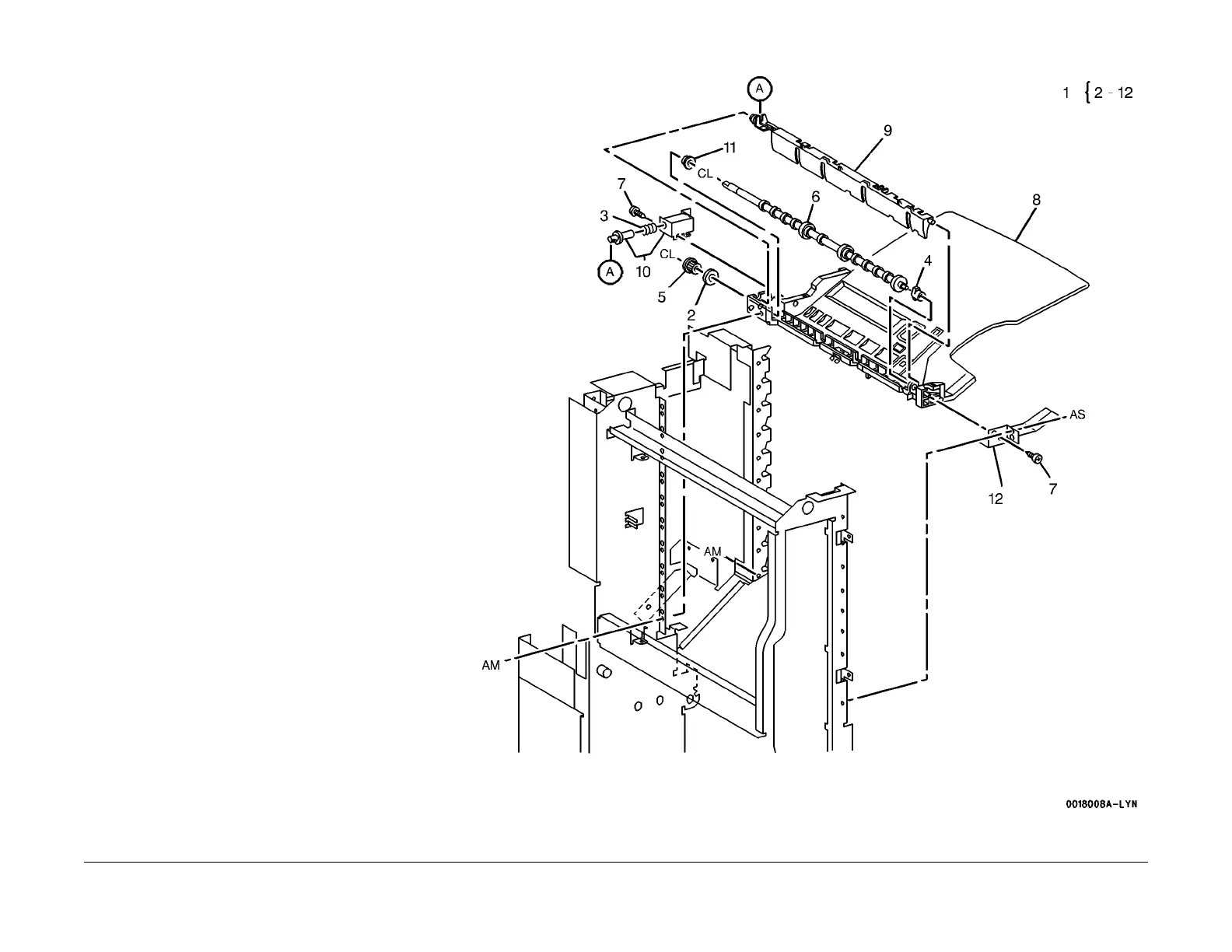

PL 18.25 Bin Tray 10
Item Part Description
1 050K36801 Bin Tray 10 Assembly (REP
15.3.32)
2 005E
83570 Collar
3 009E64140 Spring
4 013E89540 Bearing
5 Pulley (P/O PL 18.25 Item 1)
6 022E83451 Roll
7 Tapping Screw (P/O PL 18.25 Item
1)
8 050E88781 Bin Tray
9 050K33220 Gate
10 121E83120 Gate Solenoid
11 413W77559 Bearing
12 830E32600 Support
