Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-160
DocuColor 12/DCCS50
PL 18.26
Reissue
Finisher/Sorter

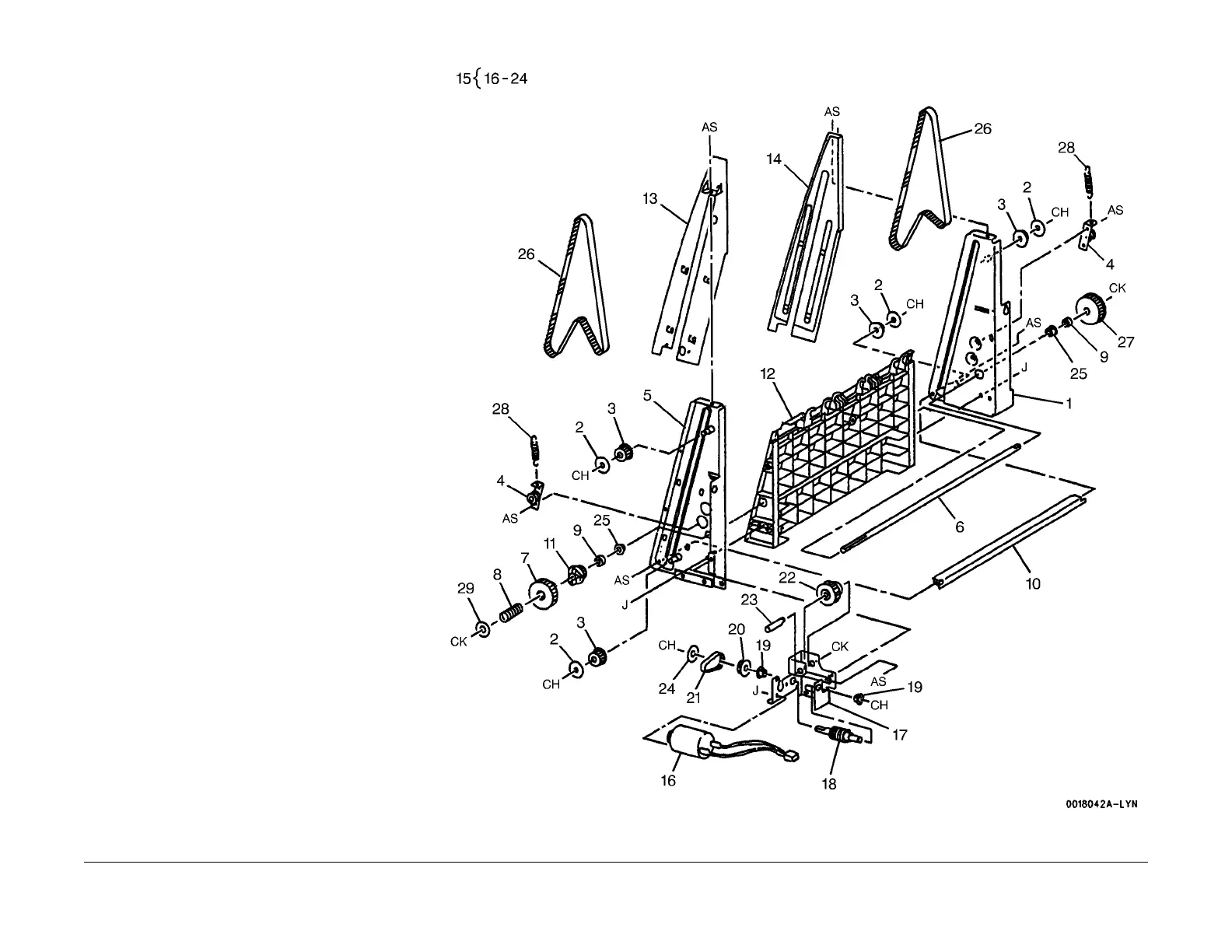

PL 18.26 Stacker Tray Drive
Item Part Description
1 – Front Frame (Not Spared)
2 005E91640 Flange
3 020E24770 Pulley
4 015K28070 Tension Roll
5 – Rear Frame
6 006E70950 Shaft
7 007E62840 Dog Clutch Gear
8 809E26230 Dog Clutch Spring
9 – Spacer (Not Spared)
10 – Tie Plate (Not Spared)
11 020E33820 Dog Clutch Pulley
12 – Guide Tray (Not Spared)
13 802E13970 Rear Inner Cover
14 802E13980 Front Inner Cover
15 127K29491 Stacker Motor Assembly
16 127K29500 Stacker Motor (REP 15.2.7)
17 – Motor Bracket (P/O PL 18.26 Item
15)
18 007K85791 Worm
19 413W75959 Bearing
20 499W14233 Pulley
21 423W25954 Belt
22 020E33830 Worm Wheel
23 – Shaft (P/O PL 18.26 Item 15)
24 – Nylon Washer (P/O PL 18.26 Item
15)
25 413W77559 Bearing
26 423W90654 Stacker Tray Drive Belt (REP
15.
2.9)
27 499W
14432 Pulley
28 809E27360 Spring
29 – Washer (Not Spared)
