1/05

8d-154

DocuColor 12/DCCS50

PL 18.20

Reissue

Finisher/Sorter

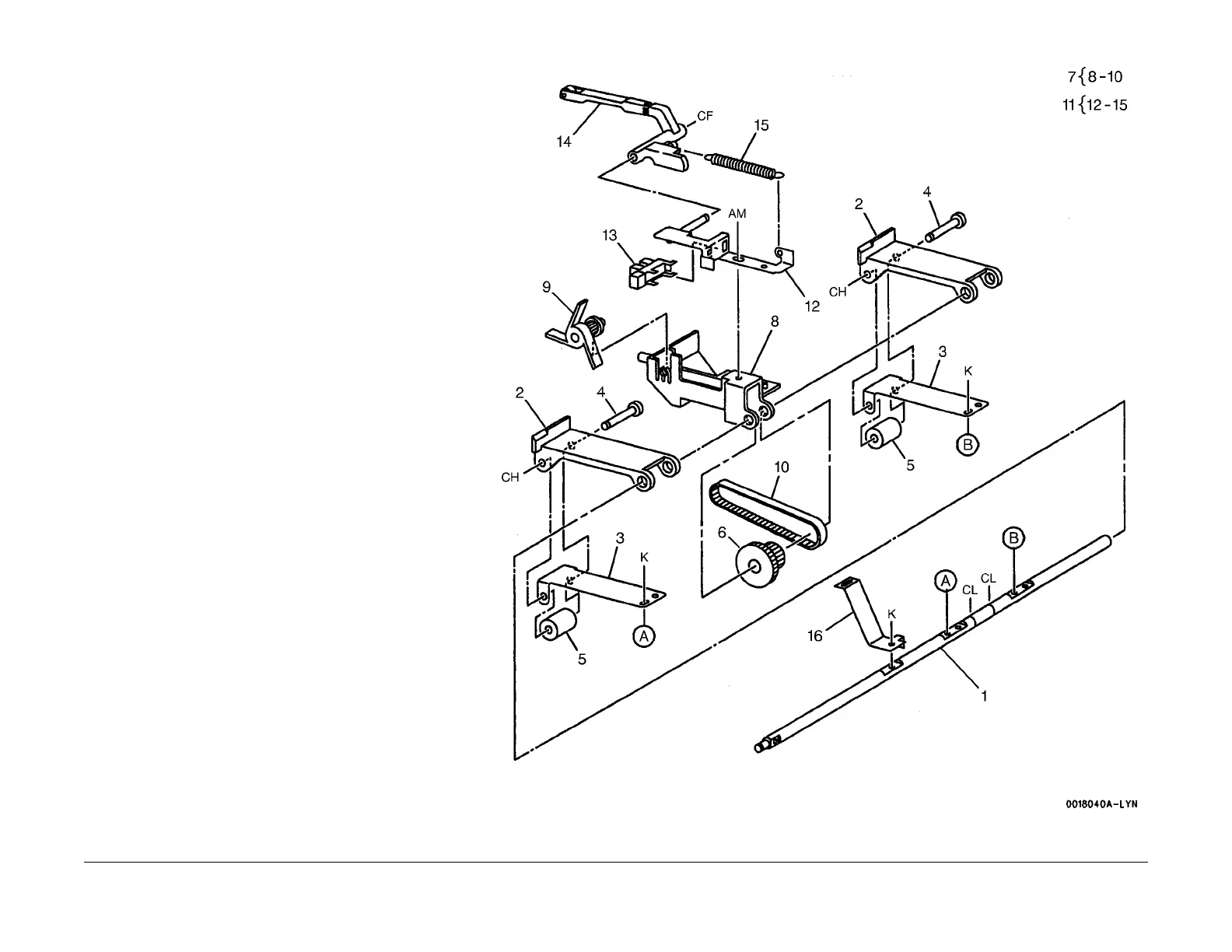

PL 18.20 Eject And Paddle

Components

Item Part Description

1 – Pinch Roll Shaft (Not Spared)

(REP 15.

2.23)

2 048K62471 Pinch Roll Cover

3 – Pinch Spring (Not Spared)

4 – Shaft (Not Spared)

5 022K61480 Eject Clamp Pinch Roll

6 020E24800 Gear Pulley

7 033K92751 Reverse Paddle Assembly

8 – Cover (P/O PL 18.20 Item 7)

9 – Paddle (P/O PL 18.20 Item 7)

10 – Paddle Drive Belt (P/O PL 18.20

tem 7) (REP

15.2.27)

11 130K87332 Stack Height Sensor Assembly

12 – Bracket (P/O PL 18.20 Item 11)

13 130E82530 Stack Height Sensor (REP

15.

2.28)

14 – A

ctuator (P/O PL 18.20 Item 11)

15 – Spring (P/O PL 18.20 Item 11)

16 – Lever (Not Spared)
