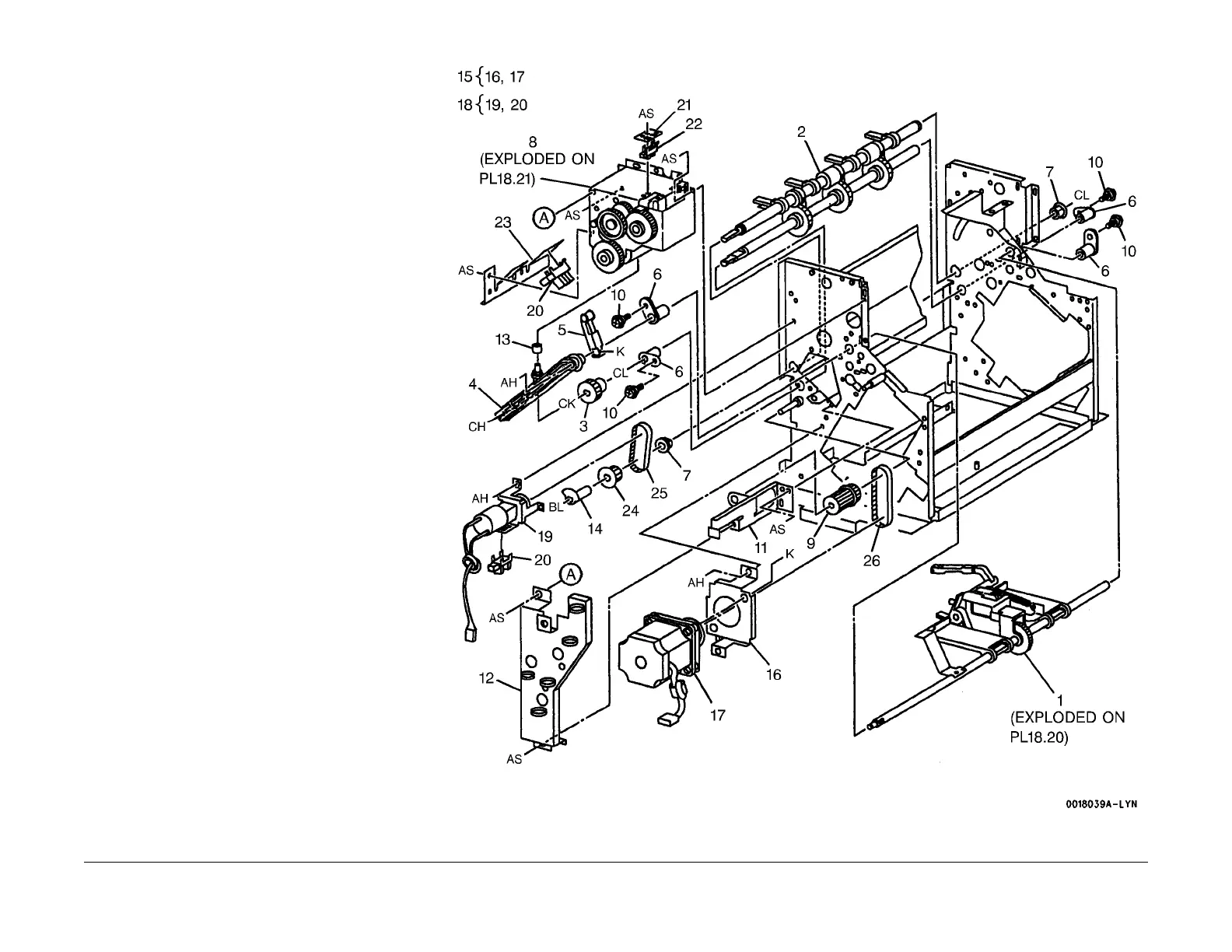

PL 18.19 Offset And Set Eject
Item Part Description
1 006K21000 Eject Clamp Pinch Roll And
Rev
erse Paddle (REF: PL 18.20)
2 006K83642 Eject Paddle Eject Roll (REP
15.
2.21)
3 007E451
70 Gear
4 011K93650 Offset Lever
5 011K93870 Eject Clamp Lever
6 013E85870 Bearing
7 013P60796 Bearing
8 015K89062 Eject Clamp/Offset Cam (REF:PL
18.
21)
9 020E248
20 Gear Pulley
10 – Screw (Not Spared)
11 – Bracket (Not Spared)
12 – Bracket (Not Spared)
13 059E92070 Cam Follower
14 120E99651 Eject Paddle Actuator
15 127K20930 Eject Motor Assembly
16 – Motor Bracket (P/O PL 18.19 Item
15)
17 127K20900 Eject Motor (REP 15.2.32)
18 127K29540 Eject Paddle Motor Assembly
19 – Eject Paddle Motor (P/O PL 18.19
I
tem 18) (REP
15.2.20)
20 130E82540 Eject Paddle Home Sensor (REP
15.
2.
31), Offset Home Sensor
(REP 15.2.18)
21 – Sensor Bracket (Not Spared)
22 130E82530 Eject Clamp Sensor (REP 15.2.17)
23 – Sensor Bracket (Not Spared)
24 499W15123 Pulley
25 423W25953 Eject Paddle Drive Belt (REP
15.
2.20)
26 423W
46753 Eject Motor Belt
