Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-152
DocuColor 12/DCCS50
PL 18.18
Reissue
Finisher/Sorter

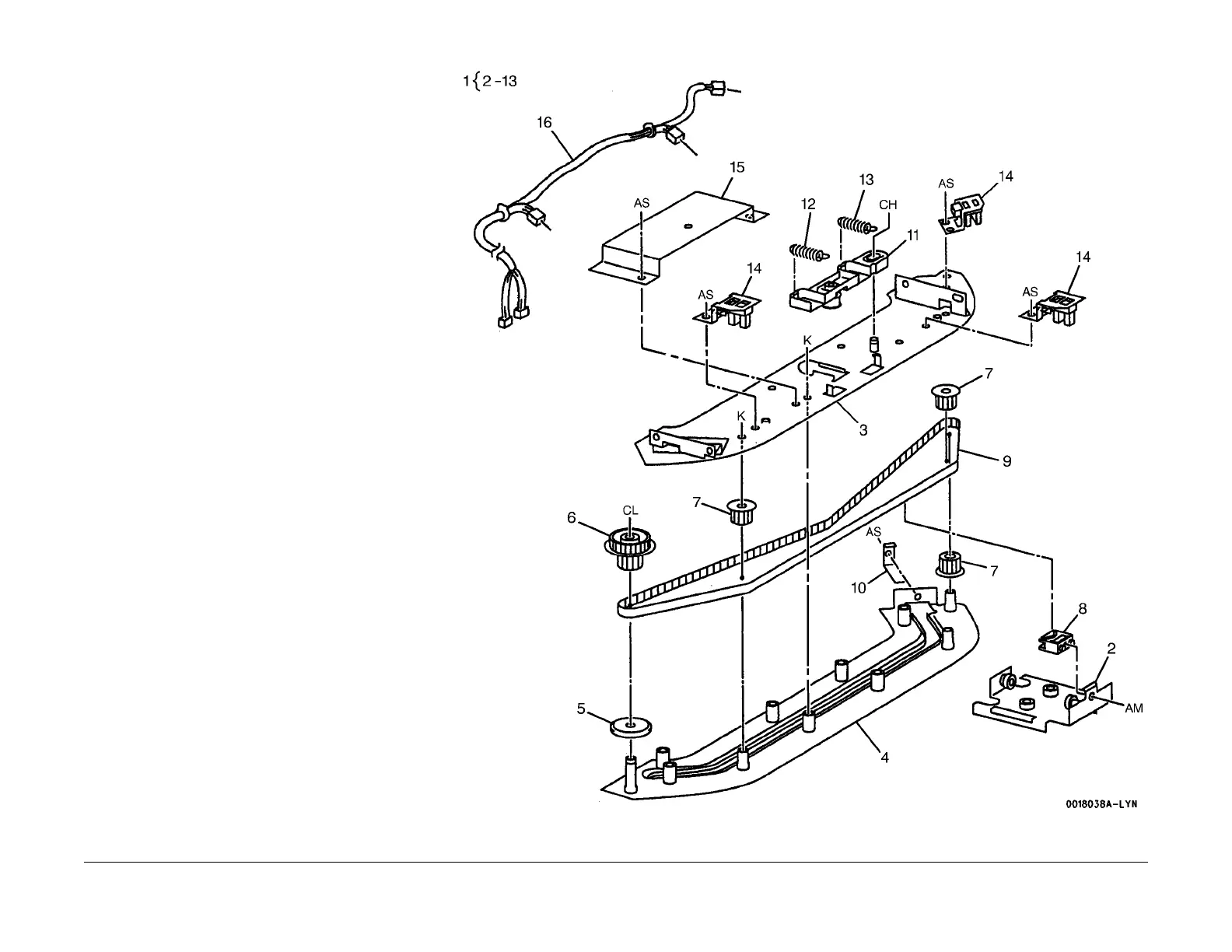

PL 18.18 Stapler Rail Component
Item Part Description
1 015K28452 Stapler Rail
2 – Slider (P/O PL 18.18 Item 1)
3 – Upper Bracket (P/O PL 18.18 Item
1)
4 – Lower Bracket (P/O PL 18.18 Item
1)
5 005E91660 Flange
6 020E22210 Pulley
7 020E22220 Pulley
8 – Belt Clamp (P/O PL 18.18 Item 1)
9 023E15560 Stapler Rail Belt (REP 15.3.18)
10 – Stopper (P/O PL 18.18 Item 1)
11 – Tension Pulley (P/O PL 18.18 Item
1)
12 – Rear Spring (P/O PL 18.18 Item 1)
13 – Front Spring (P/O PL 18.18 Item 1)
14 130K55360 Stapler Position Sensor (Front Cor-
ner, Front Straight, Rear Straight) (3
Places
) (R
EP 15.3.17)
15 – Tension Cover (Not Spared)
16 – Wire Harness (Not Spared)
