Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-144
DocuColor 12/DCCS50
PL 18.10
Reissue
Finisher/Sorter

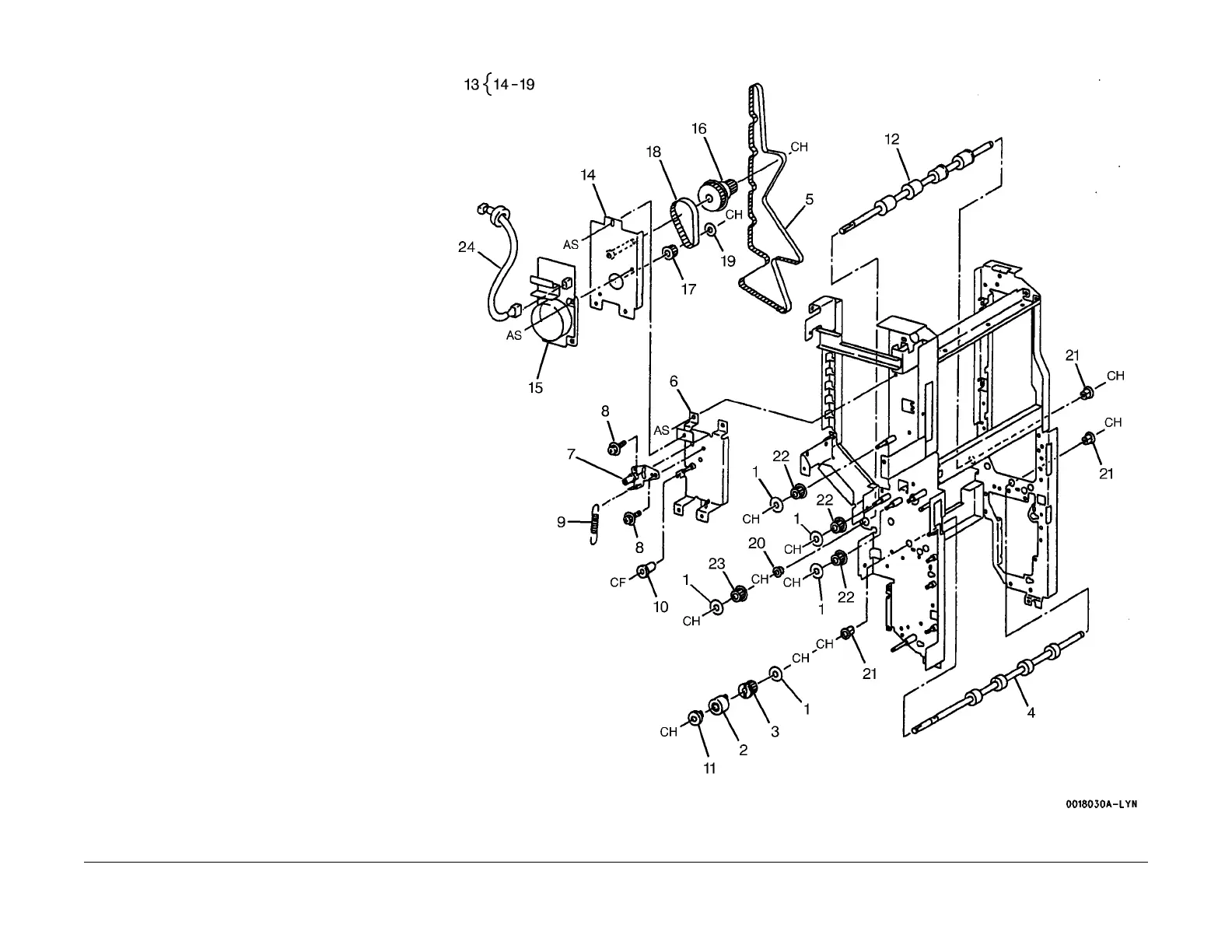

PL 18.10 Mailbox Entrance Roll, Sct
Exit Roll
Item Part Description
1 – Collar (Not Spared)
2 005E15350 Friction Clutch
3 020E33840 Pulley (23)
4 022K61470 Mailbox Entrance Roll
5 023E13160 Mailbox Drive Belt (Not Spared)
(RE
P 15.
3.21)
6 015K48190 Belt Tension Bracket
7 – Tension Pulley (Not Spared)
8 – Screw (Not Spared)
9 809E14980 Spring
10 022E83460 Idler Pulley
11 – Stopper Collar (Not Spared)
12 022K61490 SCT Exit Roll (REP 15.1.20)
13 127K37840 Mailbox Drive Motor Assembly
(RE
P 15.
3.20)
14 – Motor Bracket (P/O PL 18.10 Item
13)
15 – Mailbox Drive Motor (P/O PL 18.10
I
tem 13)
16 7E56970
Pulley (P/O PL 18.10 Item 13)
17 – Pulley (P/O PL 18.10 Item 13)
18 – Belt (P/O PL 18.10 Item 13)
19 – Collar (P/O PL 18.10 Item 13)
20 – Bearing (Not Spared)
21 413W75959 Bearing
22 499W17061 Idler Pulley
23 499W14123 Pulley
24 162K47500 Wire Harness (Motor Mailbox PWB)
