Xerox DocuColor 12/DCCS50

1/05
8d-143
DocuColor 12/DCCS50
PL 18.9
Finisher/Sorter
Reissue

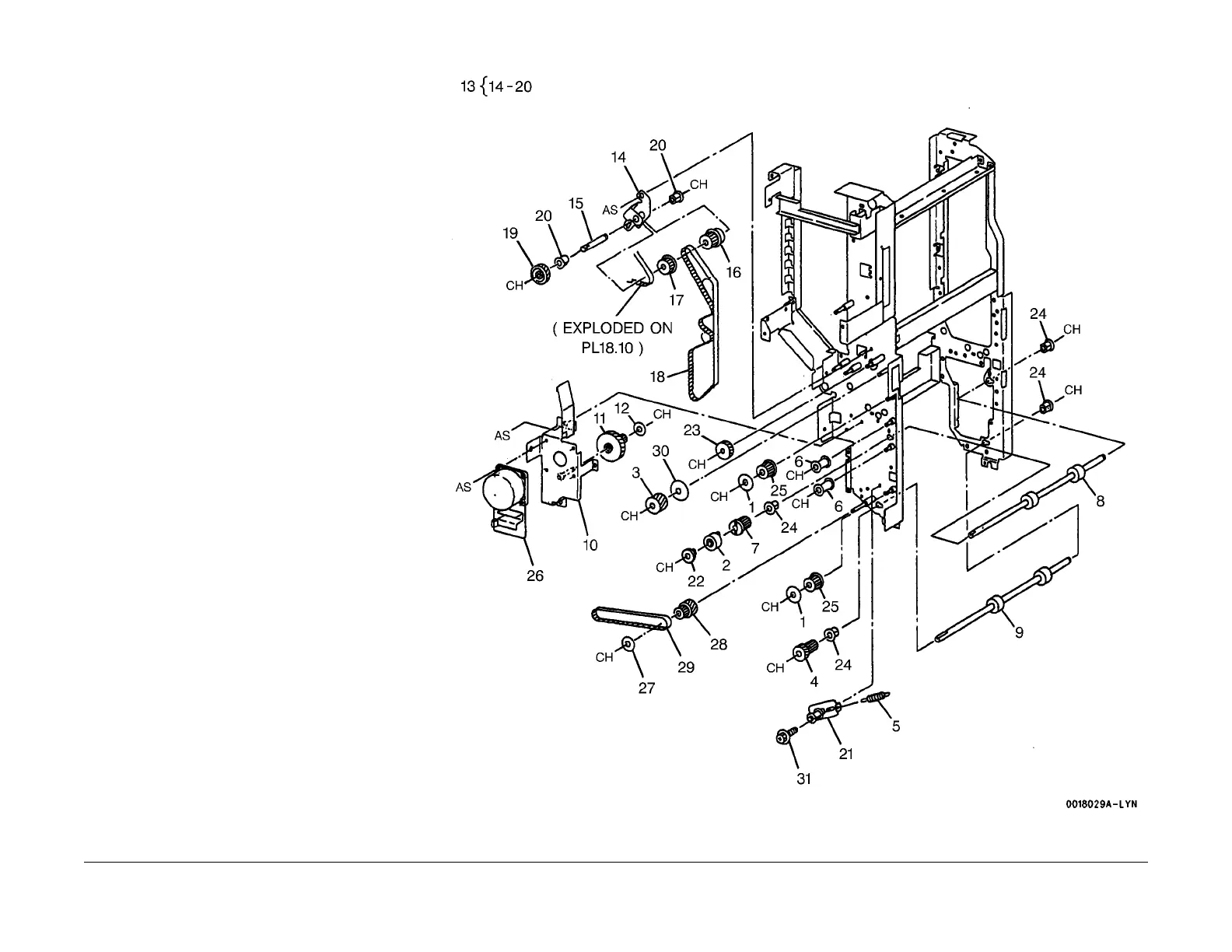

PL 18.9 Mailbox - Stapler Entrance
Roll
Item Part Description
1 – Collar (Not Spared)
2 005E15360 Friction Clutch
3 007E62850 Decurler Gear
4 007E62860 Idler Pulley
5 009E72520 Spring
6 020E25141 Idler Pulley
7 020E33850 Pulley (21)
8 022K61450 Finisher Transport Roll 1 (REP
15.
1.21)
9 022K614
60 Finisher Transport Roll 2 (REP
15.
1.21)
10 – M
otor Bracket (Not Spared)
11 007E62870 Gear Pulley
12 – Collar (Not Spared)
13 015K44950 Transmission Gear Assembly
14 – Bracket (P/O PL 18.9 Item 13)
15 – Shaft (P/O PL 18.9 Item 13)
16 020K09460 One Way Pulley (23)
17 020K98320 One Way Pulley (26)
18 423W87254 Finisher Drive Belt
19 007E62880 Decurler Gear
20 – Bearing (P/O PL 18.9 Item 13)
21 015K44960 Tension Pulley
22 – Stopper Collar (Not Spared)
23 007E62890 Decurler Gear
24 413W75959 Bearing
25 499W14524 Idler Pulley
26 127K24952 Finisher Transport Motor (REP
15.
1.15)
27 – C
ollar (Not Spared)
28 007E62830 Gear Pulley
29 423W30754 Compiler Drive Belt
30 – Plate (Not Spared)
31 – Screw (Not Spared)
