DocuColor 12/DCCS50
REP 15.2.10
Reissue
Finisher/Sorter

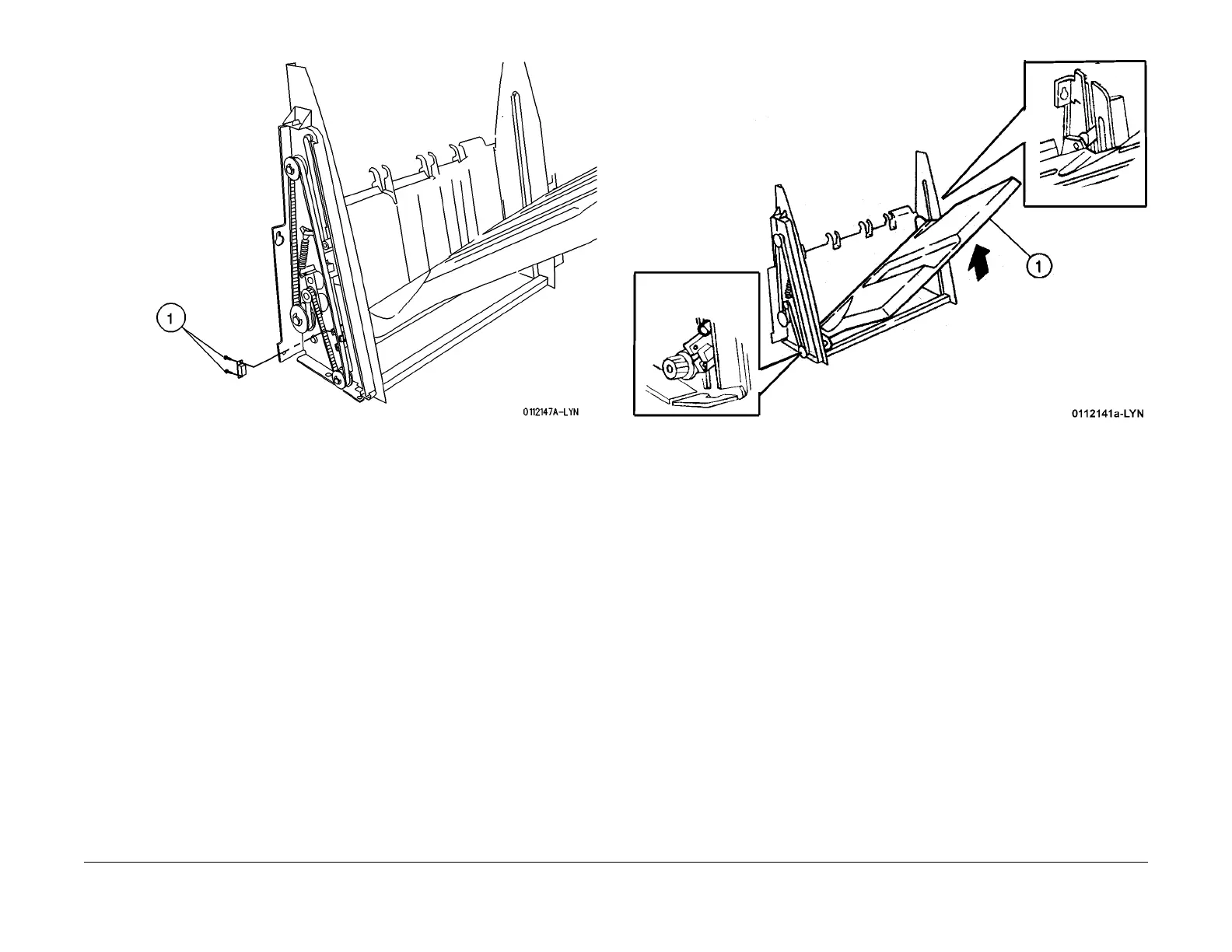

Figure 2 Removing the Stacker Drive Belt Clamps
5. Remove the Stacker Tray (Figu
re 3).
1. Support the Stacker Tray with one hand and pull the front and rear Belt Clamps
from
the Tray brackets.
2. With one end of the Tray Carriage at the bottom of the Carriage track, raise the
opposite end of t
he Tray Carriage out of the slots in the Front and Rear Tray Frames,
and remove the Stacker Tray.
Figure 3 Remove the Stacker Tray
Replacement
1. Reinstall the Stacker Tray into the slots in the Front and Rear Tray Frames.
2. Install the Drive Belts and Belt Clamps into the Stacker Tray Brackets.
3. Reinstall the Sensor Bracket onto the Stacker Fr
ame, ensure the Actuator tab is aligned
properly in the Sensor Bracket. Also ensure that the rear Drive Belt Clamp properly
engages the Sensor Actuator. Use the screws (2) to secure the Sensor Bracket.
4. Connect the Stacker Tray in line connector P
/J
1070 from the Sensor Bracket and install
the wire harness into the harness clamps.
5. Adjust the Stacker Tray Level (ADJ 15.
3.2).
6. Reinstall the Stacker Tray Assembly.
7. Reinstall the Rear Lower Cover.
8. Reinstall the Stapler Cover Assembly.
