Xerox DocuColor 12/DCCS50 User Manual

1/05
4-44
DocuColor 12/DCCS50
REP 2.21.3
Reissue
Repairs and Adjustments

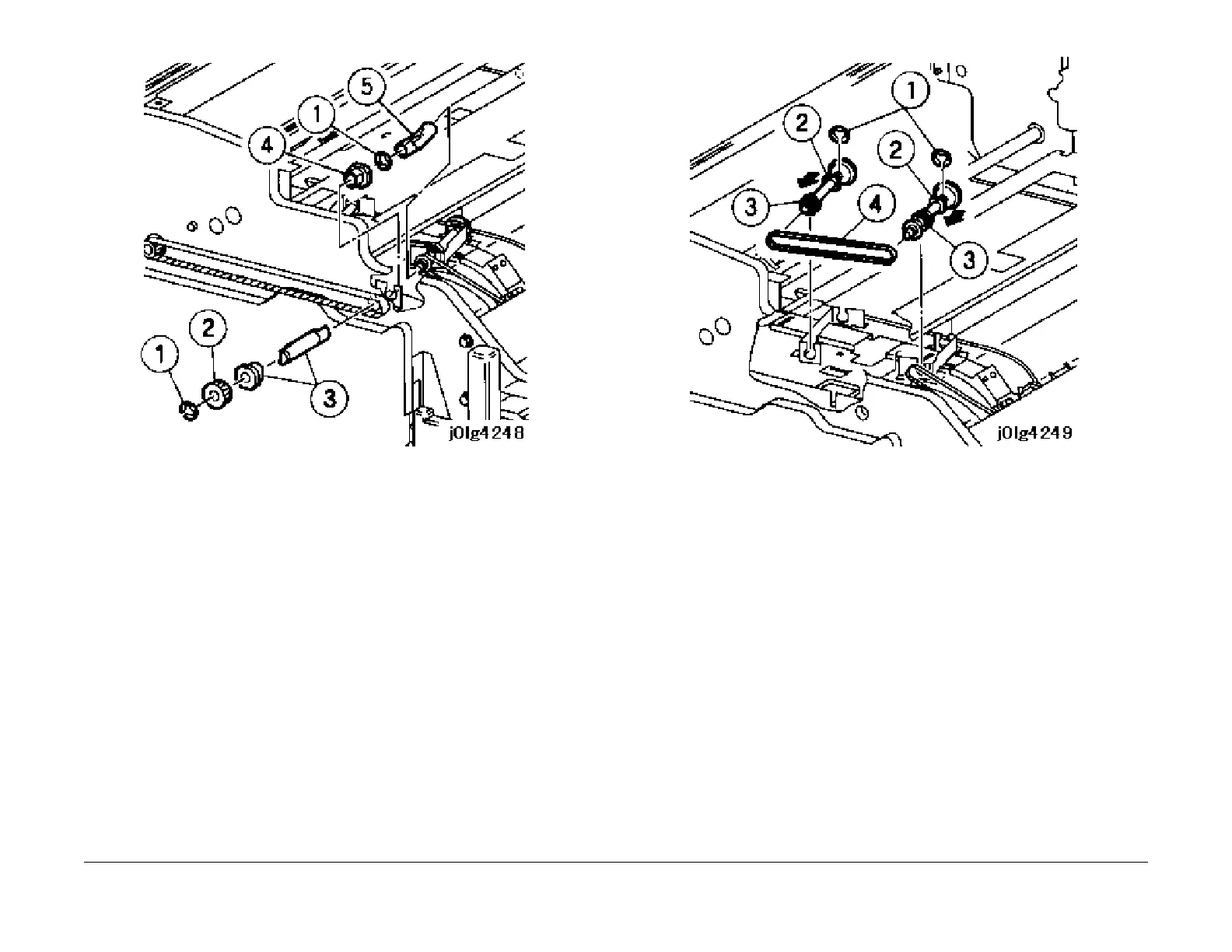

Figure 2 Removing the Joint
5. Remove the Duplex Belt 1 (Figu
re 3).
1. Remove the E-clips (2).
2. Move the bearings (2) in the direction of the arrow.
3. Remove the Aligner Rolls 2/3.
4. Remove the Duplex Belt 1.
Figure 3 Removing the Duplex Belt 1
6. Remove the Duplex Belt 2 (F
igure 4).
1. Remove the E-clip.
2. Move the bearing in the direction of the arrow.
3. Remove the Aligner Roll 1.
4. Remove the Duplex Belt 2.
