Xerox DocuColor 12/DCCS50

1/05
4-53
DocuColor 12/DCCS50
REP 3.1.2
Repairs and Adjustments
Reissue

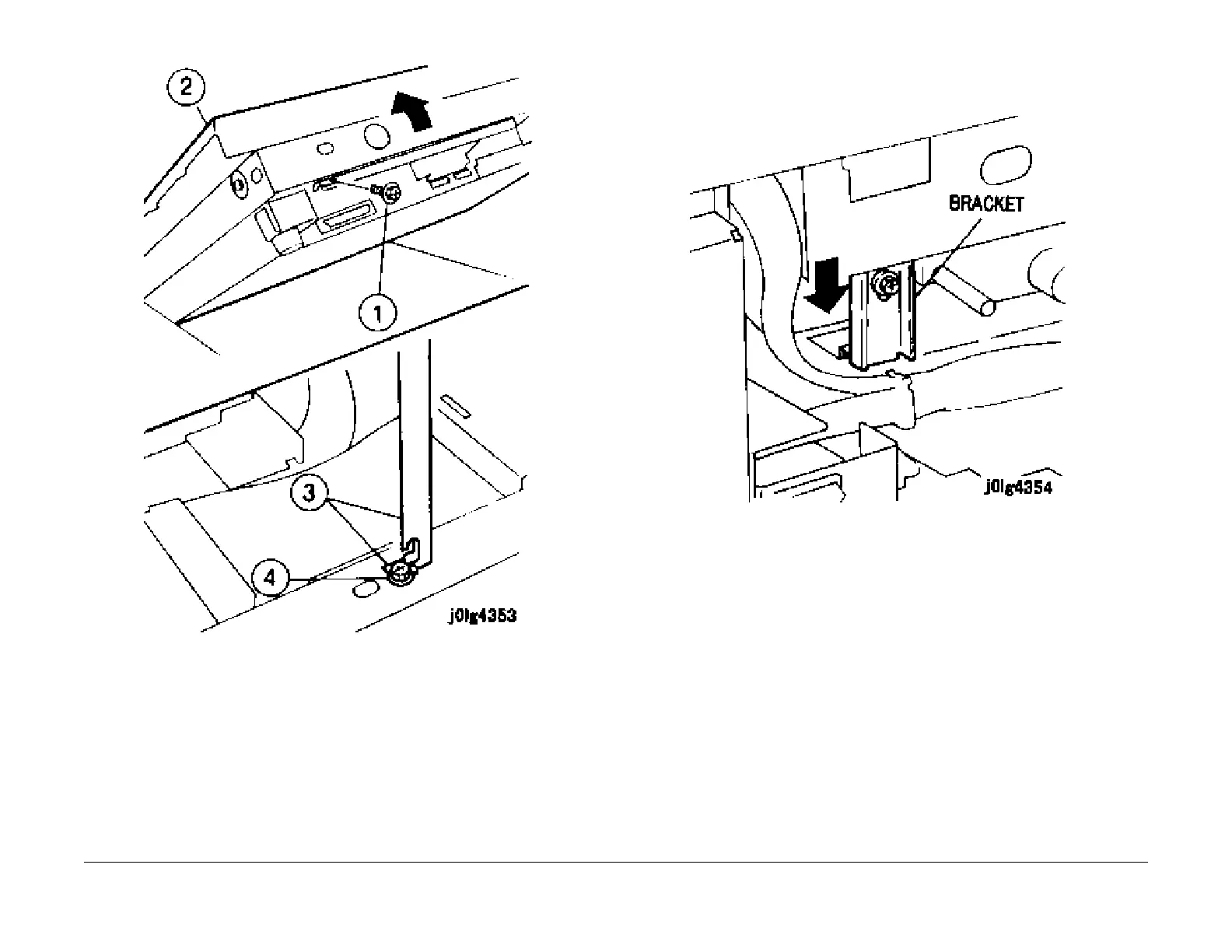

Figure 3 Opening the IIT
Installation
NOTE: When the stopper is installed, set it by pressing it toward the arrow. (Figure 4)
Figure 4 Reassembly
1. Reinstall the parts in the reverse order of disassembly.
