1/05
8d-133
DocuColor 12/DCCS50
ADJ 15.3.2
Finisher/Sorter
Reissue
5. Adjust the Tray level by pulling the Belt Clamp off the front Drive Belt and reinstalling the
Clamp up or down the Belt to move the front end of the Stacker Tray Carriage up or down
in order to be level with the rear end of the Stacker Tray Carriage.
6. Install the Drive Belt and Belt Clamp into the Tray bracket.
7. Check the adjustment and repeat step 5 and step 6 if necessary.
8. Install the screws (2) to secure the front Belt Clamp to the front Drive Belt.
9. Return to REP 15.
2.9 or REP 15.2.10 or reinstall the Stacker Tray Assembly (REP
15.2.2).
10. Reinstall the Rear Lower Cover.
11. Install the Stapler Cover Assembly.

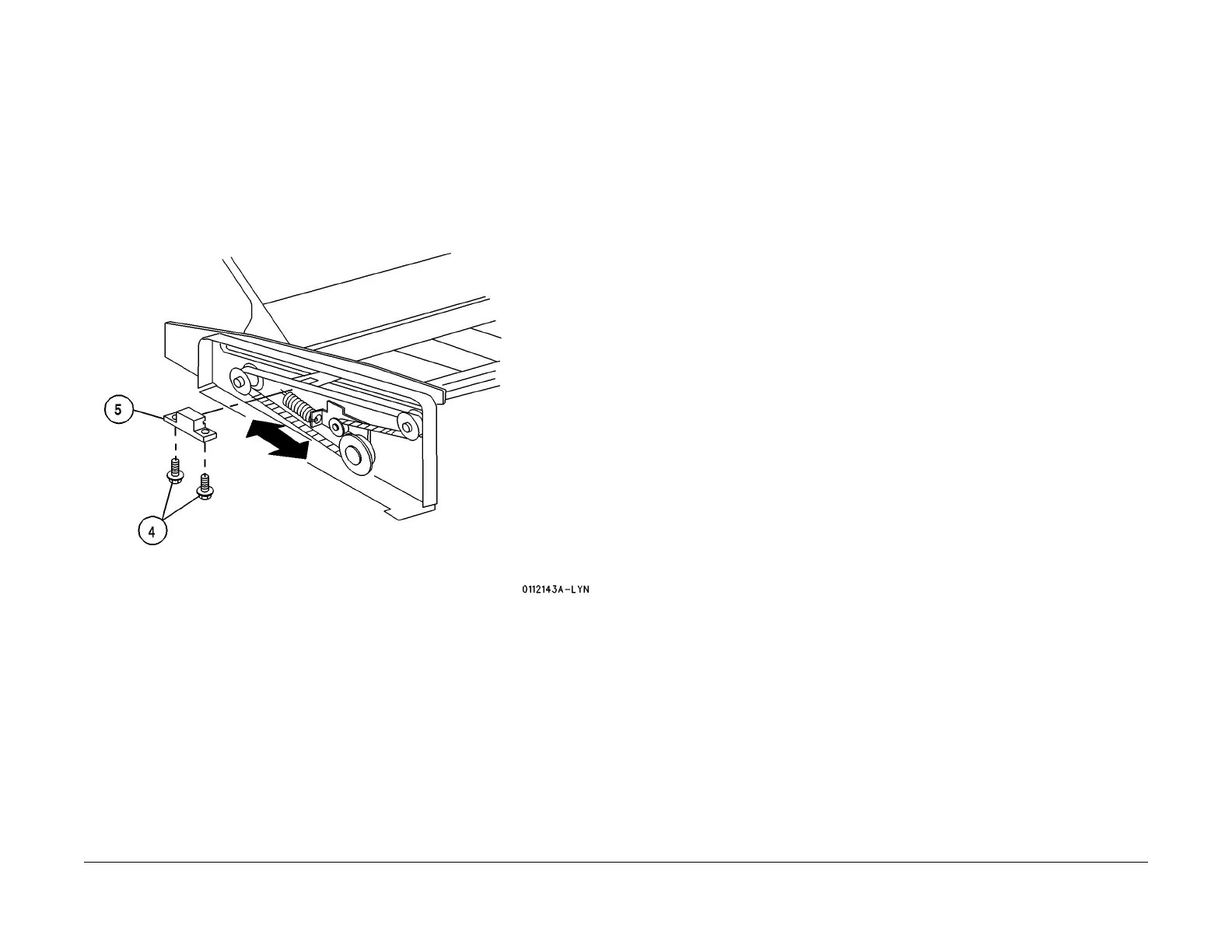

Figure 2 Leveling the Stacker Tray
