Xerox DocuColor 12/DCCS50

1/05
8c-6
DocuColor 12/DCCS50
PL 17.2
Reissue
Edit Pad

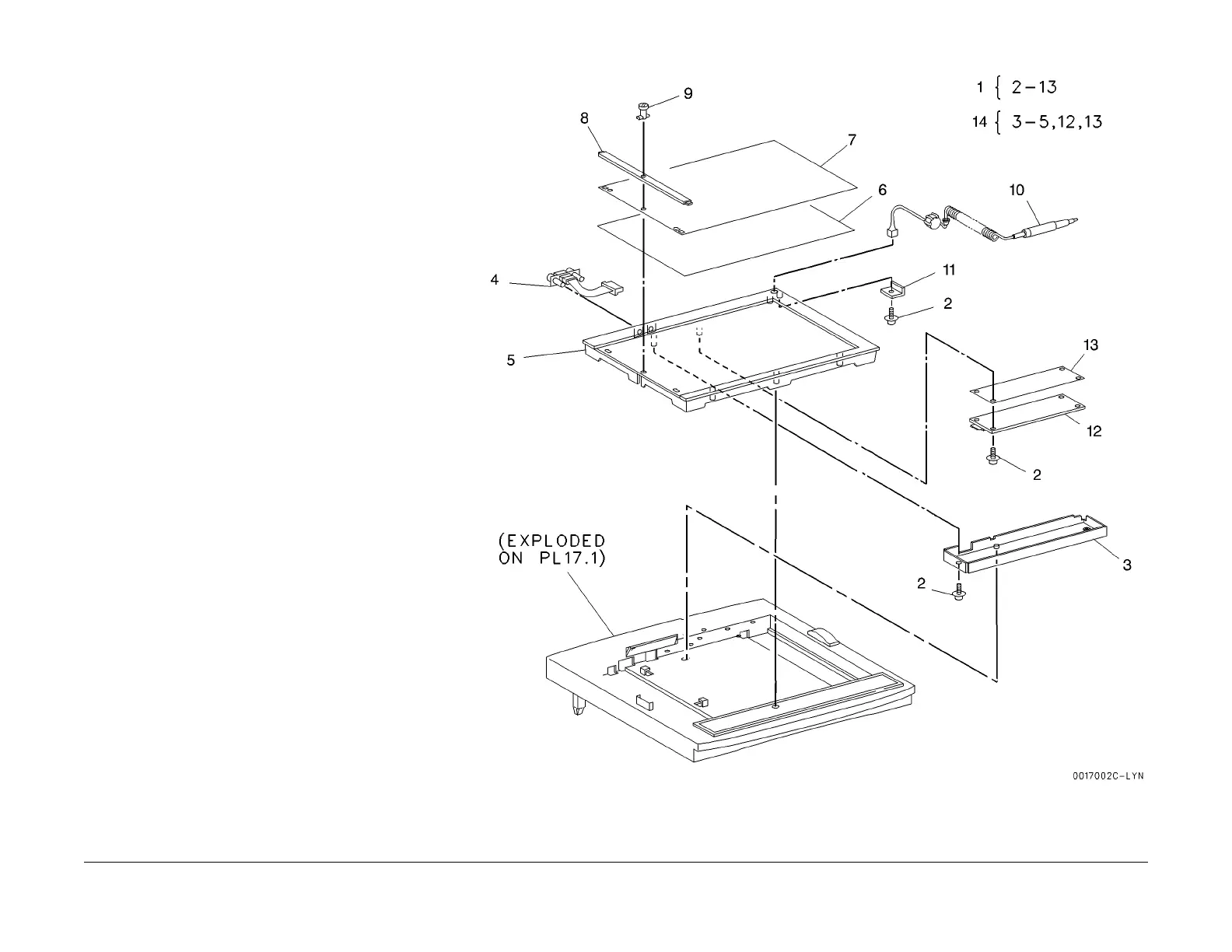

PL 17.2 Edit Pad Components (1 of 2)
Item Part Description
1 802K10940 Edit Pad Assembly
2 – Screw (P/O PL 17.2 Item 1)
3 – PWB Cover (P/O PL 17.2 Item 1)
4 – Wire Harness (P/O PL 17.2 Item 1)
5 802K10960 Edit Pad
6 802E09660 Sheet
7 002K48500 Sheet Cover
8 – Clamp Plate (P/O PL 17.2 Item 1)
9 120E92600 Lock Pin
10 071K90530 Pen
11 – Bracket (P/O PL 17.2 Item 1)
12 160K62600 Edit Pad Control PWB
13 – Shield Sheet (P/O PL 17.2 Item 1)
14 – Edit Pad Control PWB Kit (Not
Sp
ar
ed)
