DocuColor 12/DCCS50
Image Sensing (Digital Copier & Copier/Printer Con-
Reissue
Principles of Operation

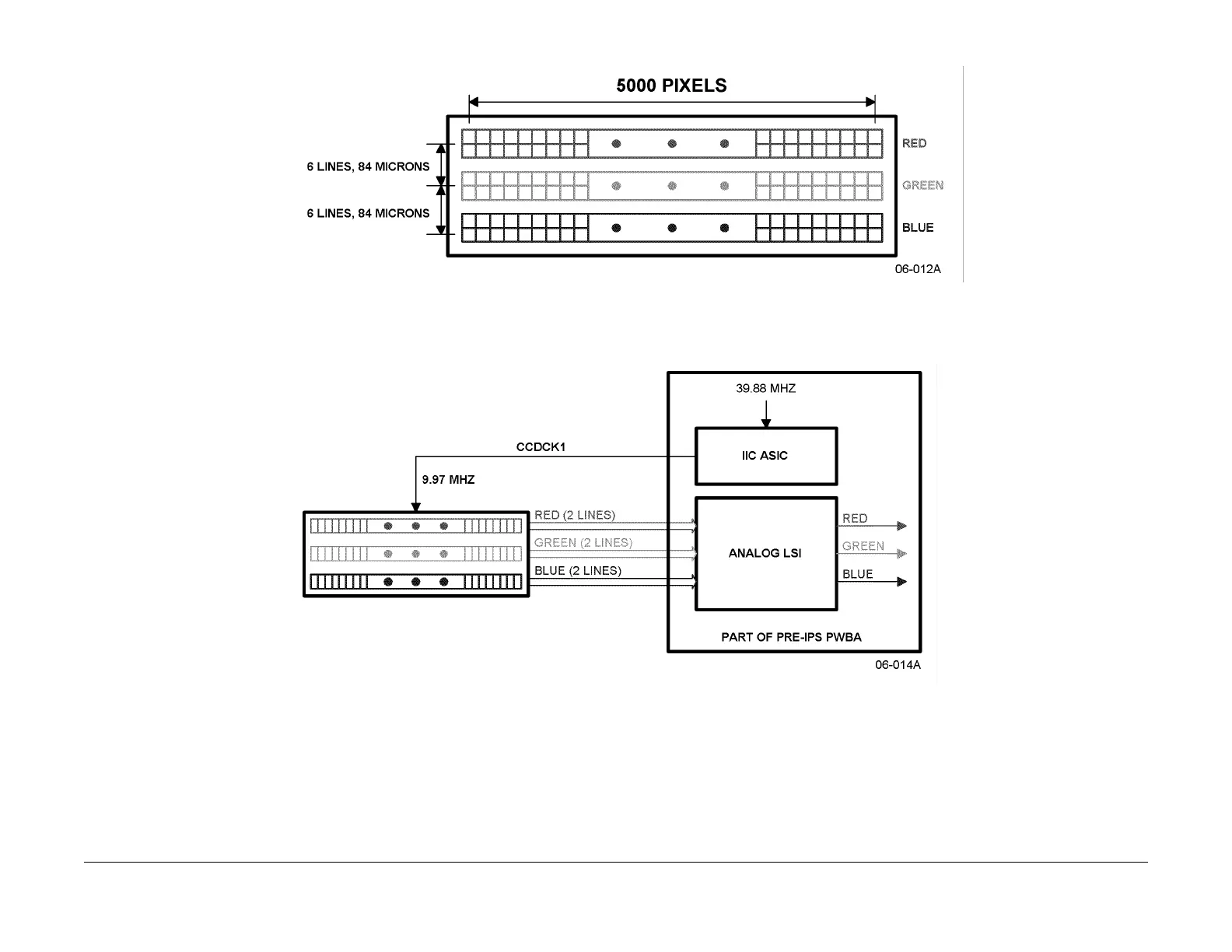

Figure 6 CCD Color Image Sensor
Figure 7 CCD Image Data Clocking
Initialization
Initialization includes several measurements and calculations to calibrate the image scanning
and processing circuits to images of known color and color purity. These include:
1. Automatic Gain Control
2. Automatic Output Control
3. Shading Control
4. White Variation Correction
5. Automatic Density Control
