Xerox DocuColor 12/DCCS50

1/05
4-72
DocuColor 12/DCCS50
REP 5.4.2
Reissue
Repairs and Adjustments

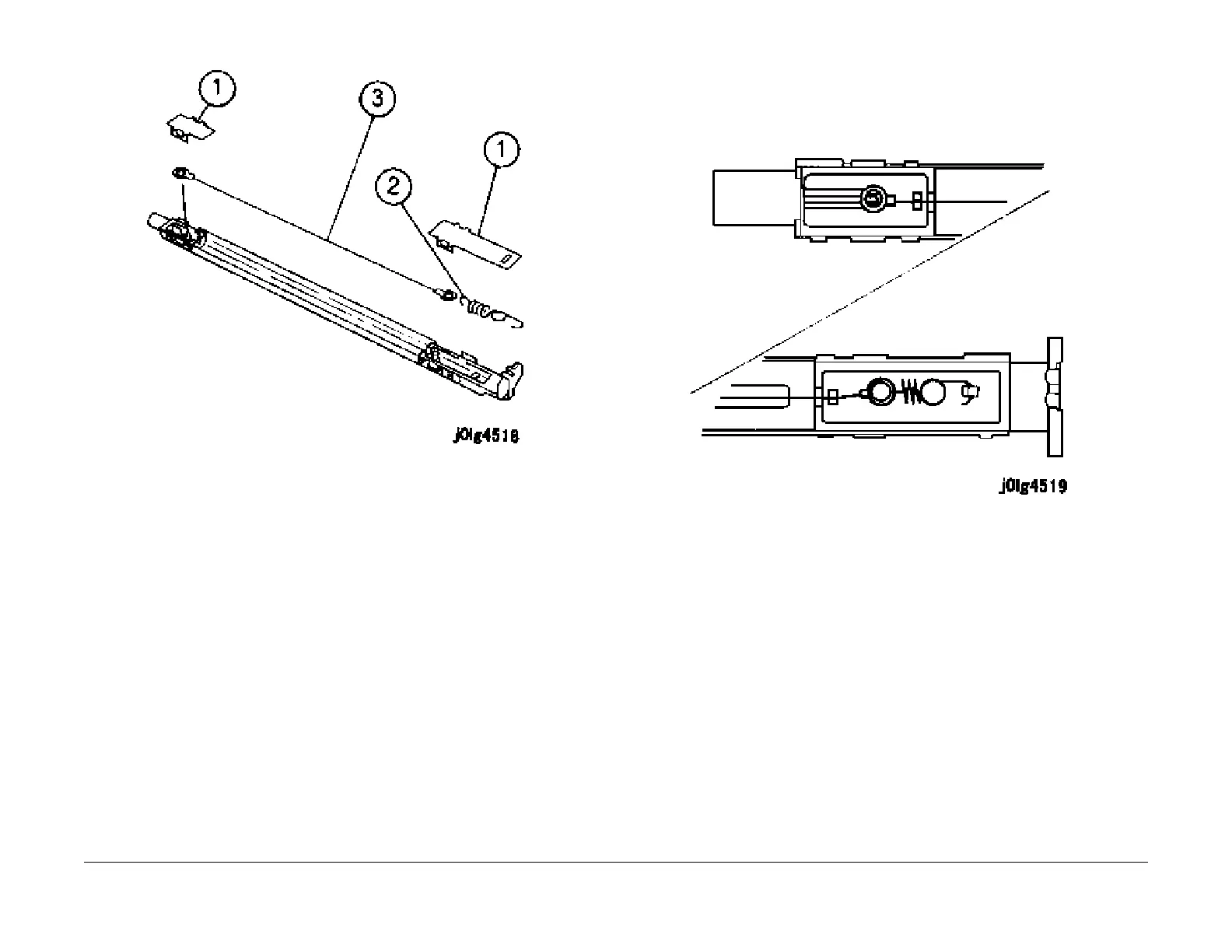

Figure 2 Remove the PCC Wire
Installation
NOTE: Install the PCC Wire as shown in the figure below (Figure 3).
Figure 3 Install the PCC Wire
NOTE: After installing the PCC Wire, clean the PCC Wire.
1. Reinstall the parts in the reverse order of disassembly.
