Xerox DocuColor 12/DCCS50

1/05
4-169
DocuColor 12/DCCS50
REP 12.7.1
Repairs and Adjustments
Reissue

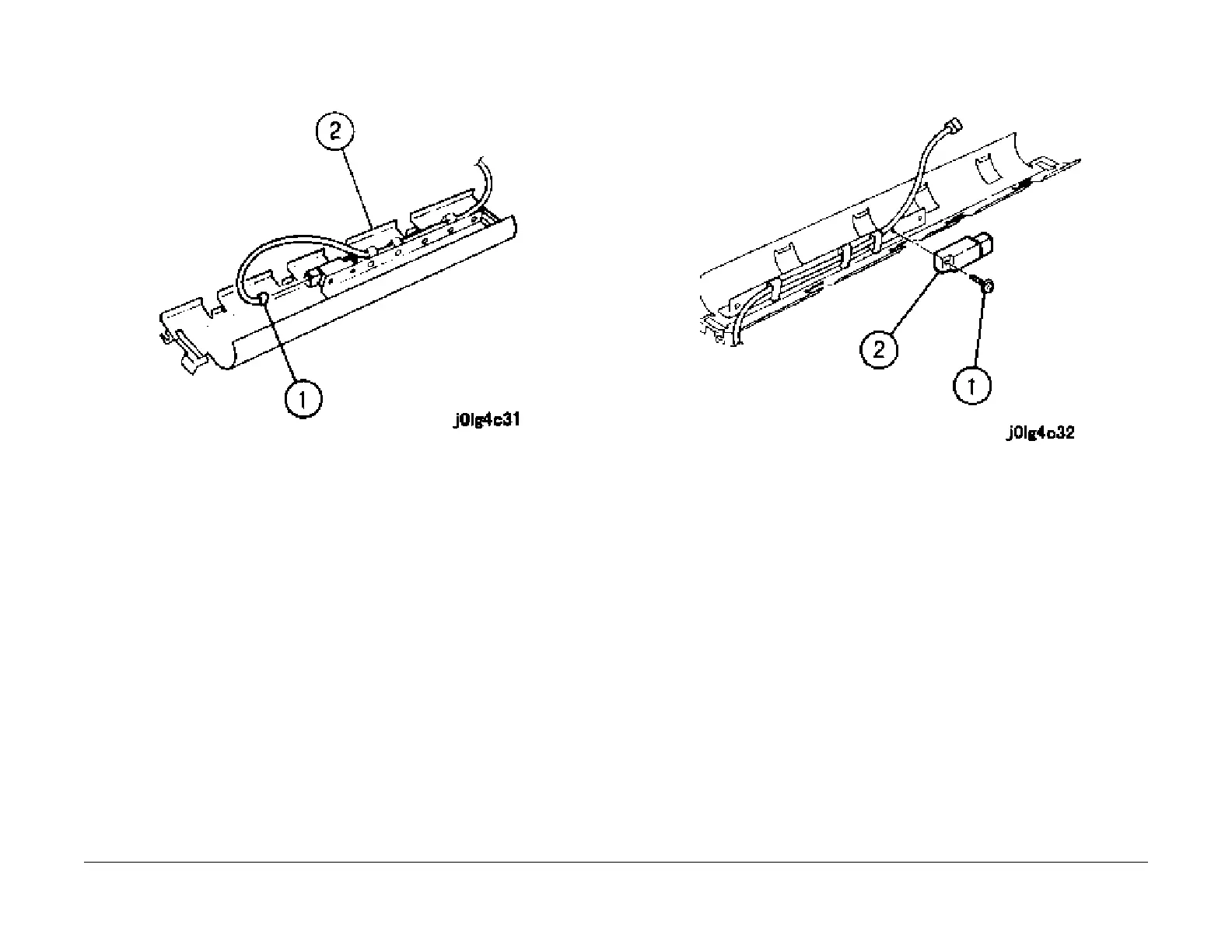

Figure 2 Remove the Invert Chute
5. Remove the Duplex Sensor (Figu
re 3).
1. Remove the screw.
2. Remove the Duplex Sensor.
Figure 3 Remove the Duplex Sensor
Installation
1. Reinstall the parts in the reverse order of disassembly.
