REP 12.8.1
Repairs and Adjustments
Reissue

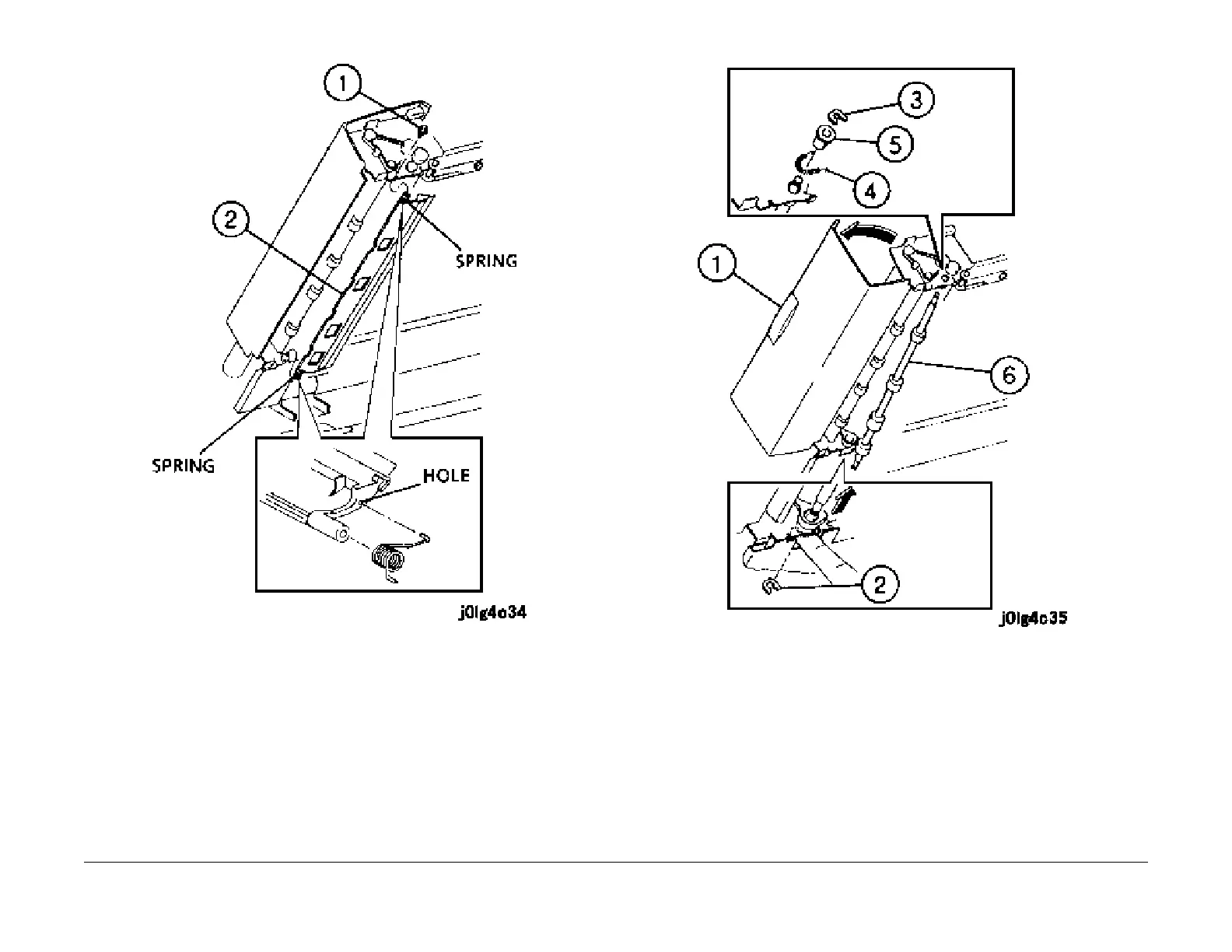

Figure 2 Remove the Gate
5. Open the Top Cover. Press the bearing and spring in the rear so that they do not separate
and remove
the Registration Pinch Roll (Figure 3).
1. Open the Top Cover.
2. Remove the C-clip.
3. Remove the C-clip.
4. Remove the spring.
5. Remove the bearing.
6. Remove the Registration Pinch Roll.
Figure 3 Remove the Registration Pinch Roll
Installation
1. Reinstall the parts in the reverse order of disassembly.
