Xerox DocuColor 12/DCCS50 User Manual

1/05
4-198
DocuColor 12/DCCS50
ADJ 8.8.1
Reissue
Repairs and Adjustments

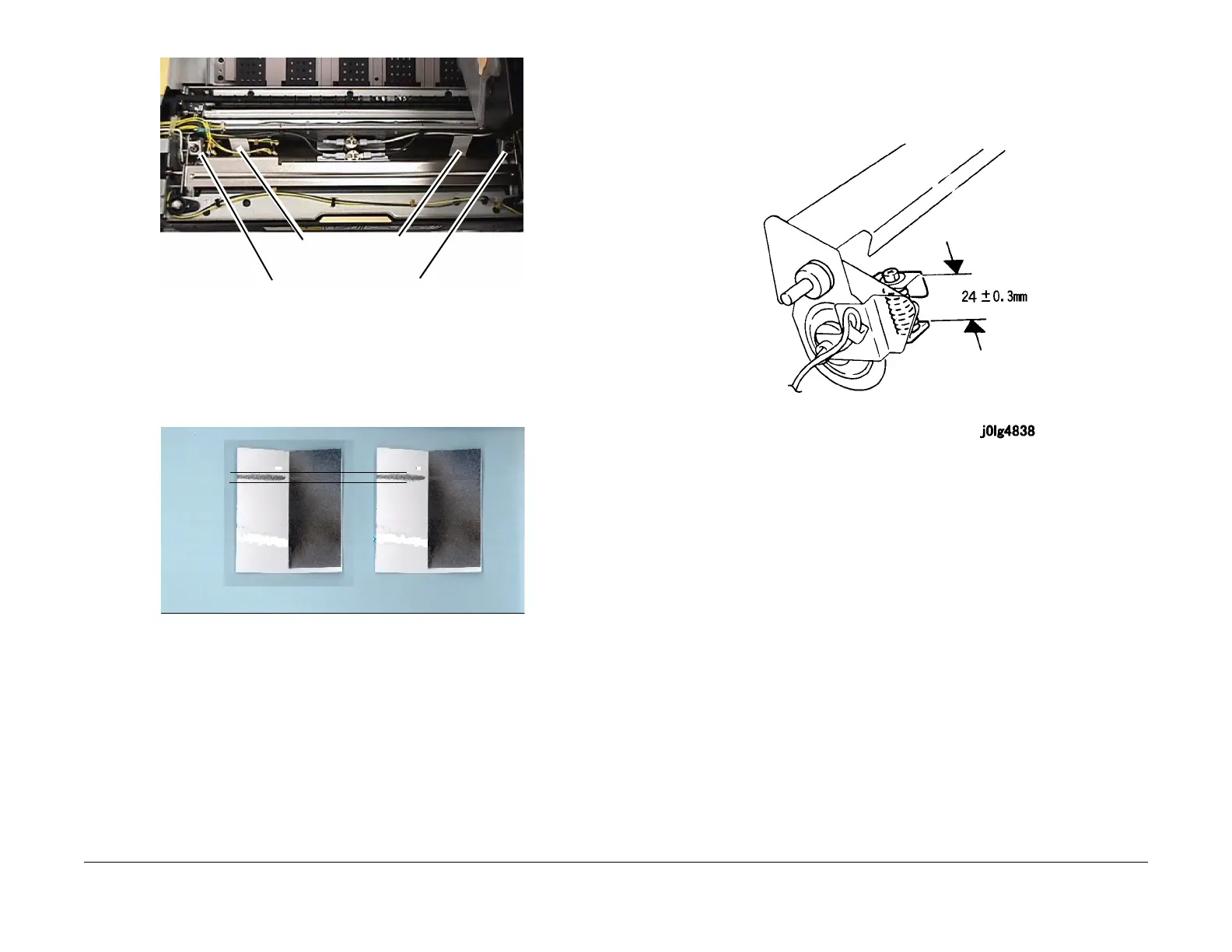

Figure 2 Test Strip/Adjustment Screw locations
10. Close the Copy Drawer. The External Heat Roll Retract Motor will cam and uncam Exter-
nal Heat Roll. This will take approximately 3 seconds.
11. Open the drawer and remove the Test Strips.
12. Unfold the Test Strips slowly and check for a 3mm ± 0.5 fused transfer area on both strips
(Figu
re 3).
Figure 3 Fused Transfer Area
13. If the measurement is not within specification, perform the Adjustment.
Adjustment
NOTE: If there is no fused transfer area, or if the difference between sides is excessive, preset
the height of the External Heat Roll Springs (PL 8.8 Item 18) to 24 mm (Figure 4).
Figure 4 Spring Height
1. Adjust screws (Figure 2
) to achieve 3mm ± 0.5 fused transfer area on both strips.
• To increase nip turn screw counterclockwise.
• To decrease nip turn screw clockwise.
2. Repeat Check/Adjustment until nip is within specification.
TEST STRIPS
ADJUSTMENT SCREWS
3 ± 0.5mm
