1/05
4-210
DocuColor 12/DCCS50
ADJ 9.1.16
Reissue
Repairs and Adjustments

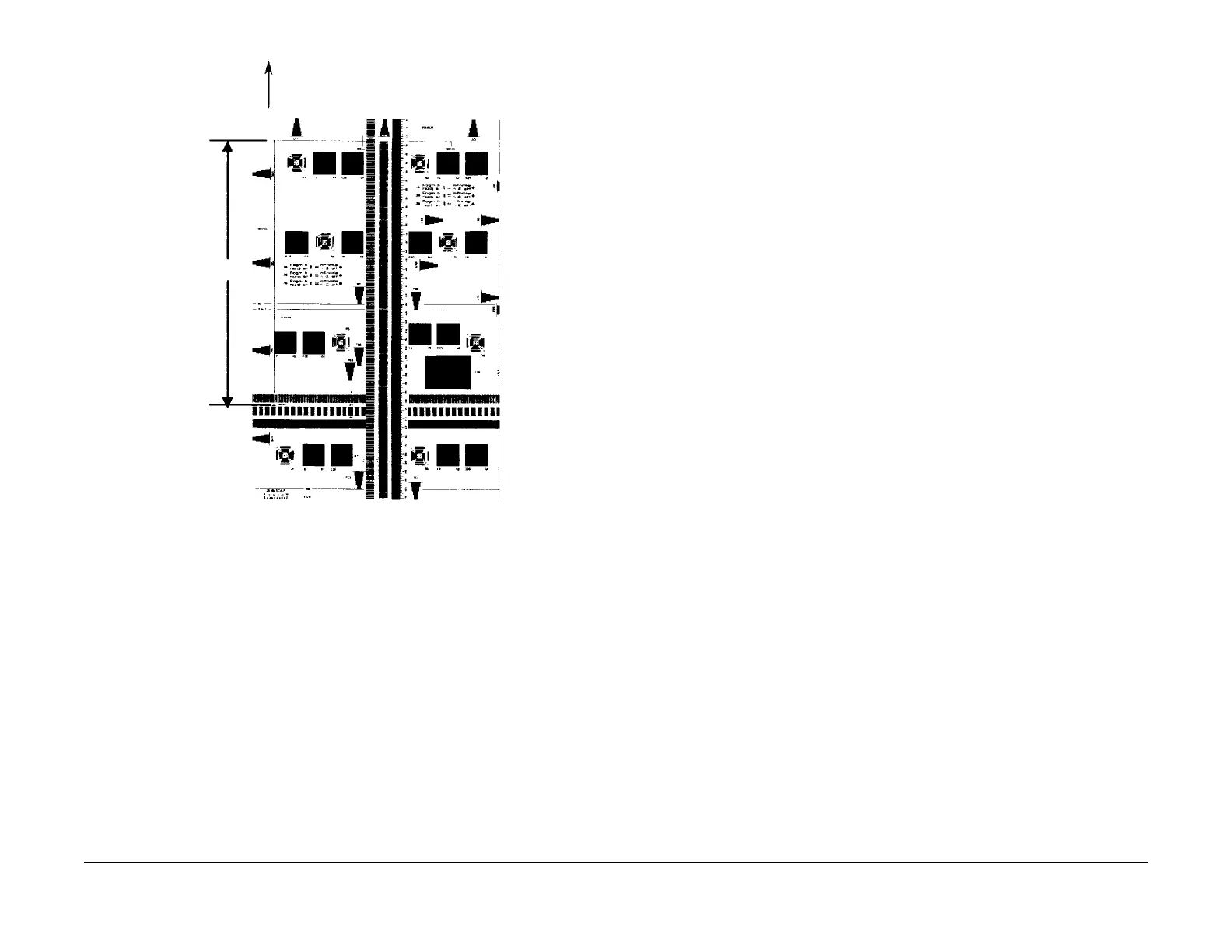

Figure 2 Checking the IIT Vertical Magnification
Adjustment
Horizontal magnification
NOTE: If you change the magnification, the following problems may occur:
a. Degraded resolution because of the ASIC digital correction
b. Degraded AE/ACS/TI separation
1. Enter dC131 NV
M Read/
Write [715-023] (FS Mag Adjustment).
2. Change the value.
a. 1 step = 0.1%
b. Increase the value to enlarge.
c. Decrease the value to reduce.
Vertical magnification
NOTE: If you change the magnification, the following problems may occur:
a. Improper RGB overlapping/color shift
b. Degraded AE/ACS/TI separation
1. Enter dC131 N
VM
Read/Write.
2. Change the value in location [715-133] (MAG Revise VAL).
a. 1 step = 0.1%
b. Increase the value to enlarge.
c. Decrease the value to reduce.
PAPER FEED
DIRECTION
300mm +/-
1.5mm
