1/05
7-187
DocuColor 12/DCCS50
Chain 10
Wiring Data
Reissue

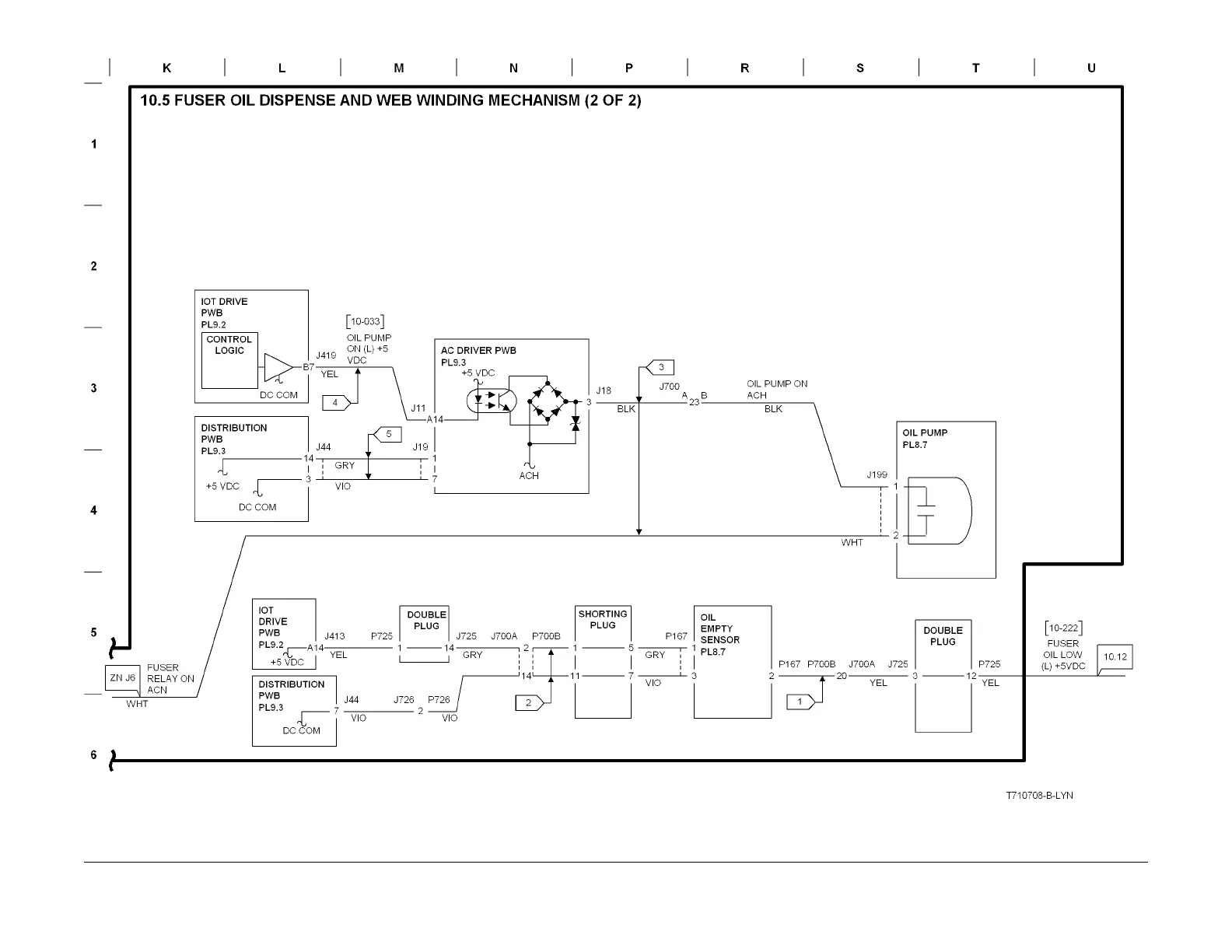

Figure 9 BSD 10.5 Fuser Oil Dispense and Web Winding Mechanism (2 of 2)
