8a-38

DocuColor 12/DCCS50

PL 15.12

Reissue

High Capacity Feeder

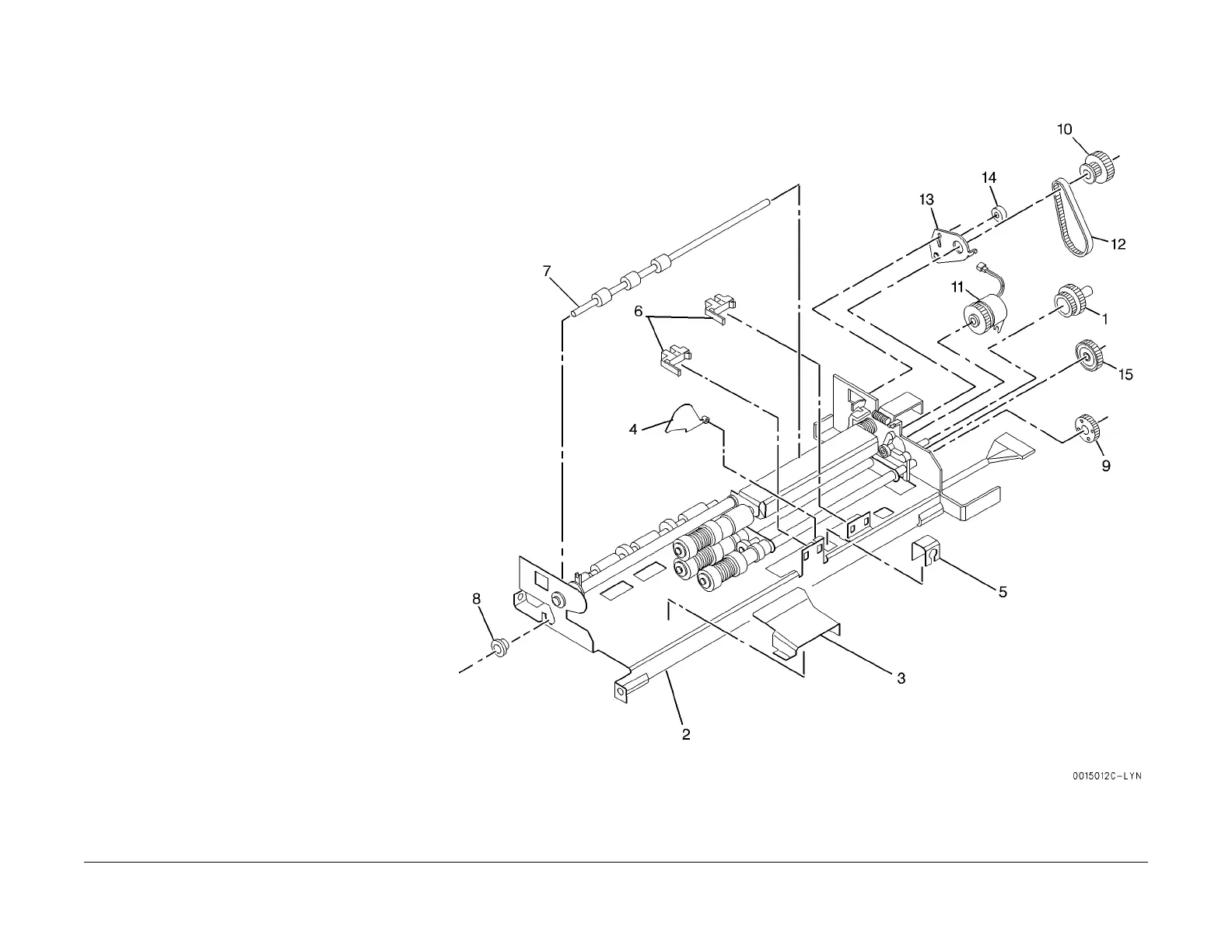

PL 15.12 Paper Feeder Assembly:

Part 3 OF 6

Item Part Description

1 007E89010 Gear (22/20T)

2 – Feeder Housing (P/O PL15.11 Item

3 054E06492 Front Chute

4 120E15182 Sensor Actuator

5 074E91050 Actuator Support

6 107E08680 Tray Empty Sensor (REP 2.8.43),

tack Height

Sensor (REP 2.8.43)

7 022K55041 Drive Roll

8 413W29457 Bearing

9 020E31540 Pulley

10 – Gear/Pulley (P/O PL15.10 Item 1)

11 121K10533 Clutch

12 023E23160 Feed Belt

13 – Idler Bracket (P/O PL15.10 Item 1)

14 – Idler Roller (P/O PL15.10 Item 1)

15 007E88990 Gear (22T)
