1/05
8a-39
DocuColor 12/DCCS50
PL 15.13
High Capacity Feeder
Reissue

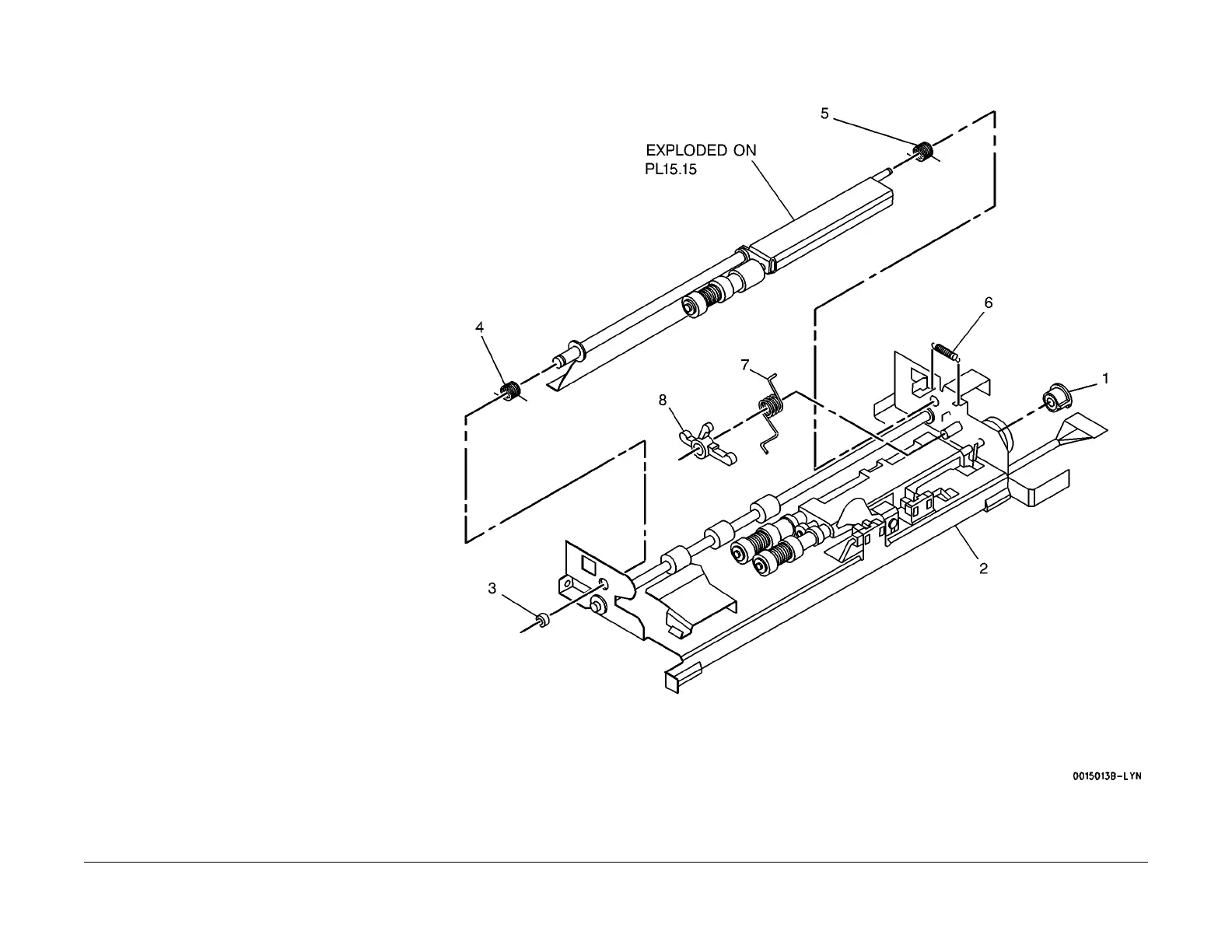

PL 15.13 Paper Feeder Assembly:
Part 4 OF 6
Item Part Description
1 005K04490 One Way Clutch (REP 2.8.41)
2 – Feeder Housing (P/O PL15.11 Item
2)
3 – Bearing (P/O PL15.10 Item 1)
4 – Front Spring (P/O PL15.10 Item 1)
(RE
P 2.
8.35)
5 – Rear Spring (P/O PL15.10 Item 1)
(RE
P 2.
8.35)
6 809E25230 Retard Spring
7 809E02540 Link Spring
8 023E15032 Stopper Link
