Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-128
DocuColor 12/DCCS50
REP 15.3.31
Reissue
Finisher/Sorter
REP 15.3.31 Bin Tray 1
Parts List on PL 18.22
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Remove the following parts:
a. Rear Upper Cover (REP 15.3.
7)
b. Top Cover (REP 15.
3.11)
c. Left Upper Cover (REP 15
.3.10)

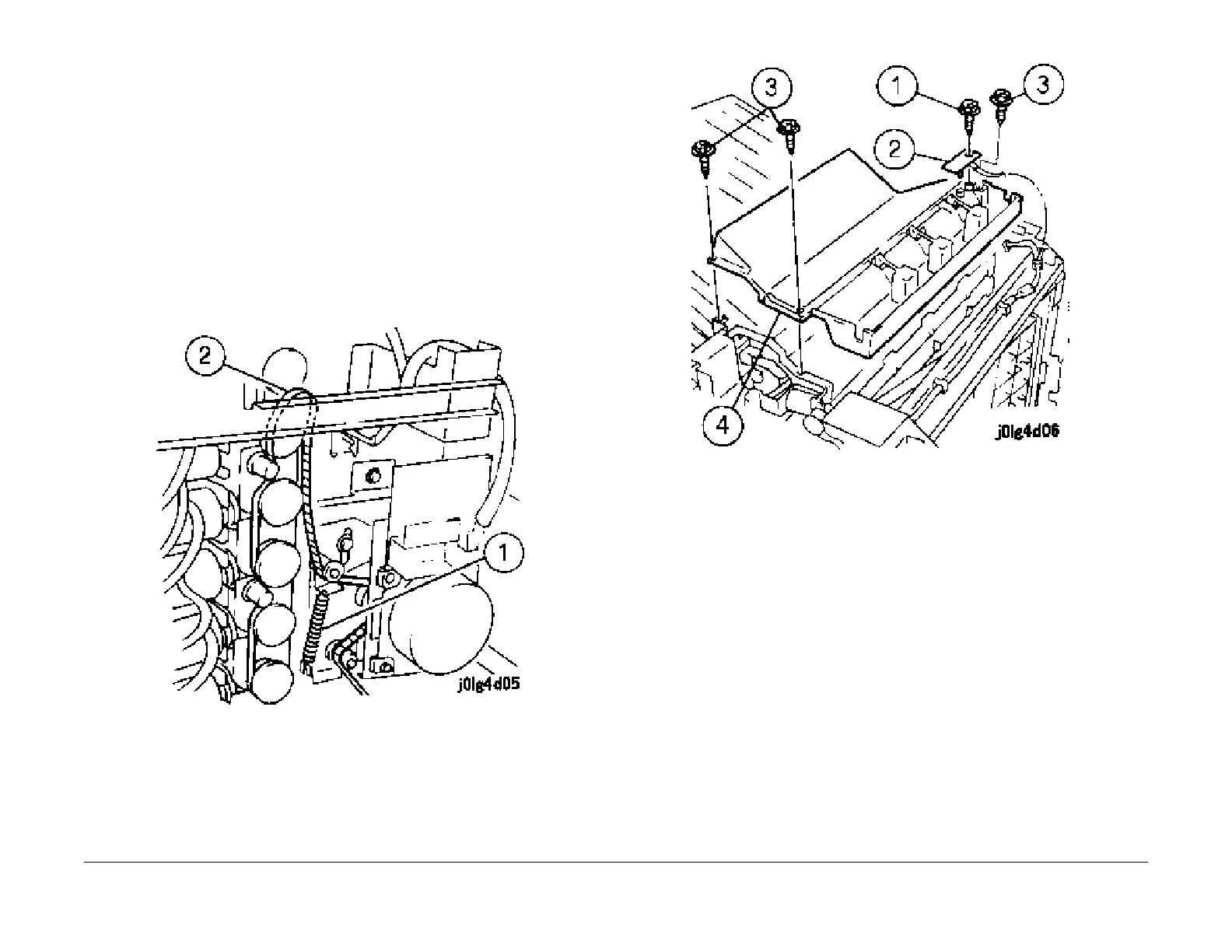

2. Remove the spring (Figu
re 1).
1. Remove the spring.
2. Remove the Mailbox Drive Belt from the pulley.
Figure 1 Remove the Spring
3. Remove the Bin Tray Cover (Figure 2).
1.
Remove the screw from the Vertical LED.
2. Remove the Vertical LED.
3. Remove the screws (3) from the Bin Tray Cover.
4. Remove the Bin Tray Cover.
Figure 2 Remove the Bin Tray Cover
4. Remove the Panel Assembly (Numbered Panel) (PL 18.
2 it
em 25).
5. Remove the Bin Tray 1 (Figure 3
).
1. Remove the screws (3).
2. Lift up on Bin Tray 1 to snap the pawl free from the gate, then remove Bin Tray 1.
