1/05
8d-129
DocuColor 12/DCCS50
REP 15.3.31, REP 15.3.32
Finisher/Sorter
Reissue
Figure 3 Remove Bin Tray 1
Replacement
1. Reinstall the Bin Tray 1 in the reverse order of removal.
REP 15.3.32 Bin Trays 2 - 10
Parts List on PL 18.23
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
NOTE: This page describes how to disassemble Bin Tray 2.
NOTE: To remove any Bin Tray (n), first remove Bin Trays 1 to (n-1).
1. Remove the Bin Tray 1 (REP 15.3.
31).
2. Remove the Panel Assembly (Numbered Panel) (PL 18.2 it
em 25).

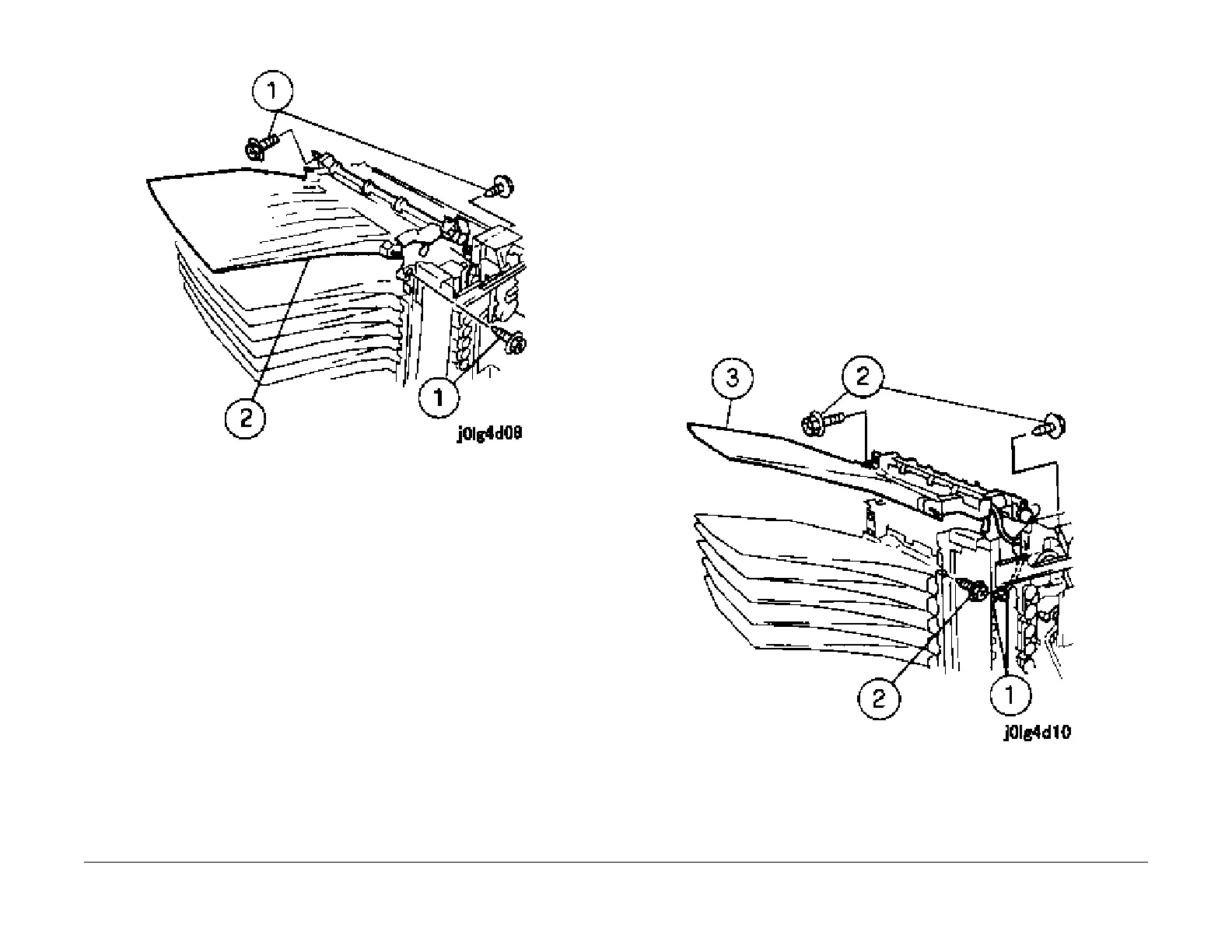

3. Remove the Bin Tray 2 (Figure 1
).
1. Disconnect the connector (if required).
2. Remove the screws (3).
3. Lift up on Bin Tray 2 to snap the pawl free from the gate, then remove Bin Tray 2.
Figure 1 Remove the Bin Tray 2
Installation
1. Reinstall the Bin Trays 2 - 10 in the reverse order of removal.
