8d-147

DocuColor 12/DCCS50

PL 18.13

Finisher/Sorter

Reissue

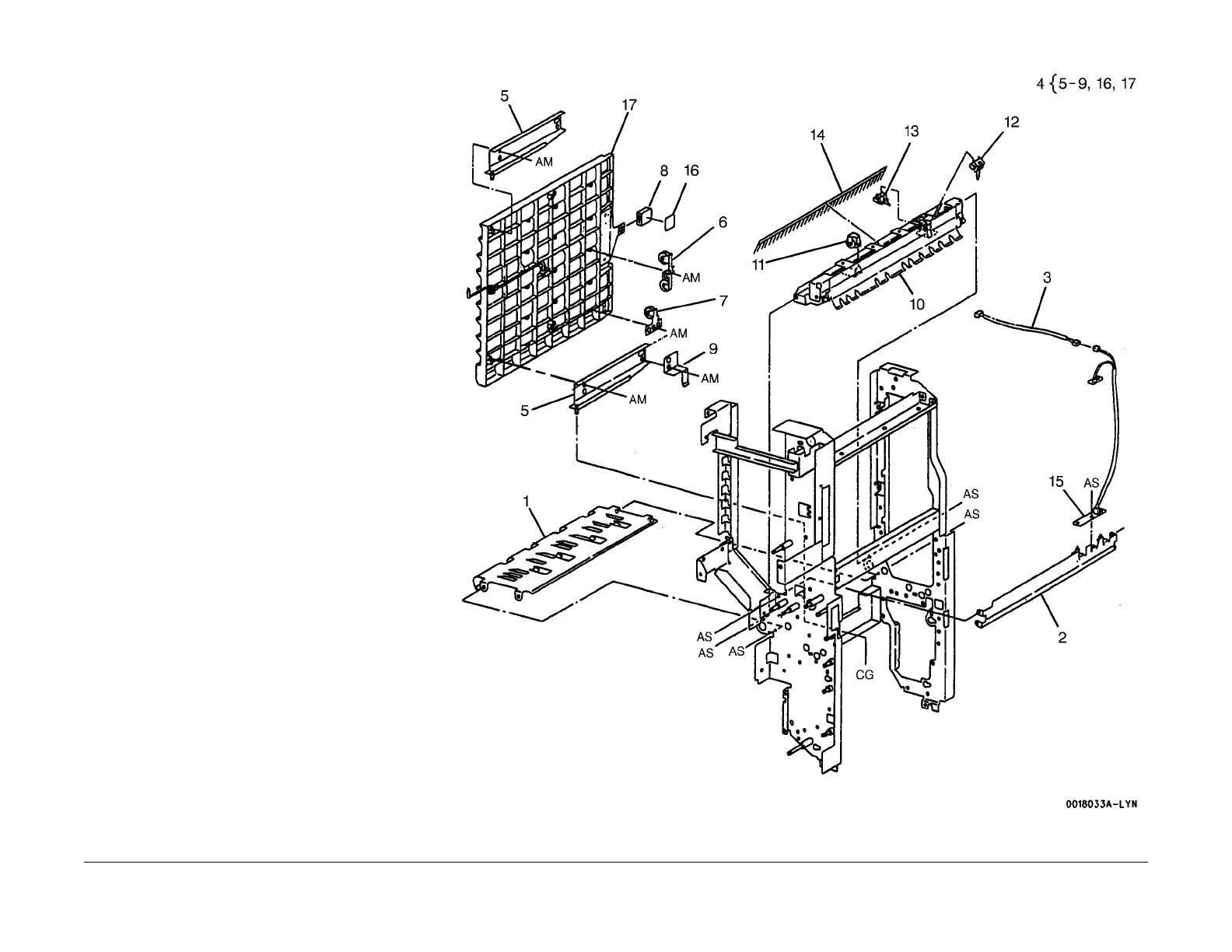

PL 18.13 Mailbox Chute

Item Part Description

1 – SCT Exit Lower Chute (Not

Spar

ed)

2 – Bin Tray Lower Chute (Not Spared)

3 162K60451 Wire Harness (Sensor-Mailbox

4 054K167

80 Mailbox Transport Baffle Assembly

5 – Support (P/O PL 18.13 Item 4)

6 022K43720 Pinch Roll (12 Places)

7 022K48240 Pinch Roll (3 Places)

8 – Knob (P/O PL 18.13 Item 4)

9 – Bracket (P/O PL 18.13 Item 4)

10 127K31260 10-SCT Exit Upper Chute

11 059K08590 Lower Baffle Pinch Rolls (4 Places)

(RE

P 15.

1.20)

12 130E80100 SCT Exit Sensor (REP 15.1.19)

13 130K94740 Mailbox Entrance Sensor

14 105E98690 Static Eliminator (REP 15.1.18)

15 160K53431 Mailbox Vertical Sensor (REP

15.

3.30)

16 – L

abel (P/O PL 18.13 Item 4)

17 – Mailbox Transport Baffle (P/O PL

18.

13 I

tem 4)
