DocuColor 12/DCCS50
PL 18.14
Reissue
Finisher/Sorter

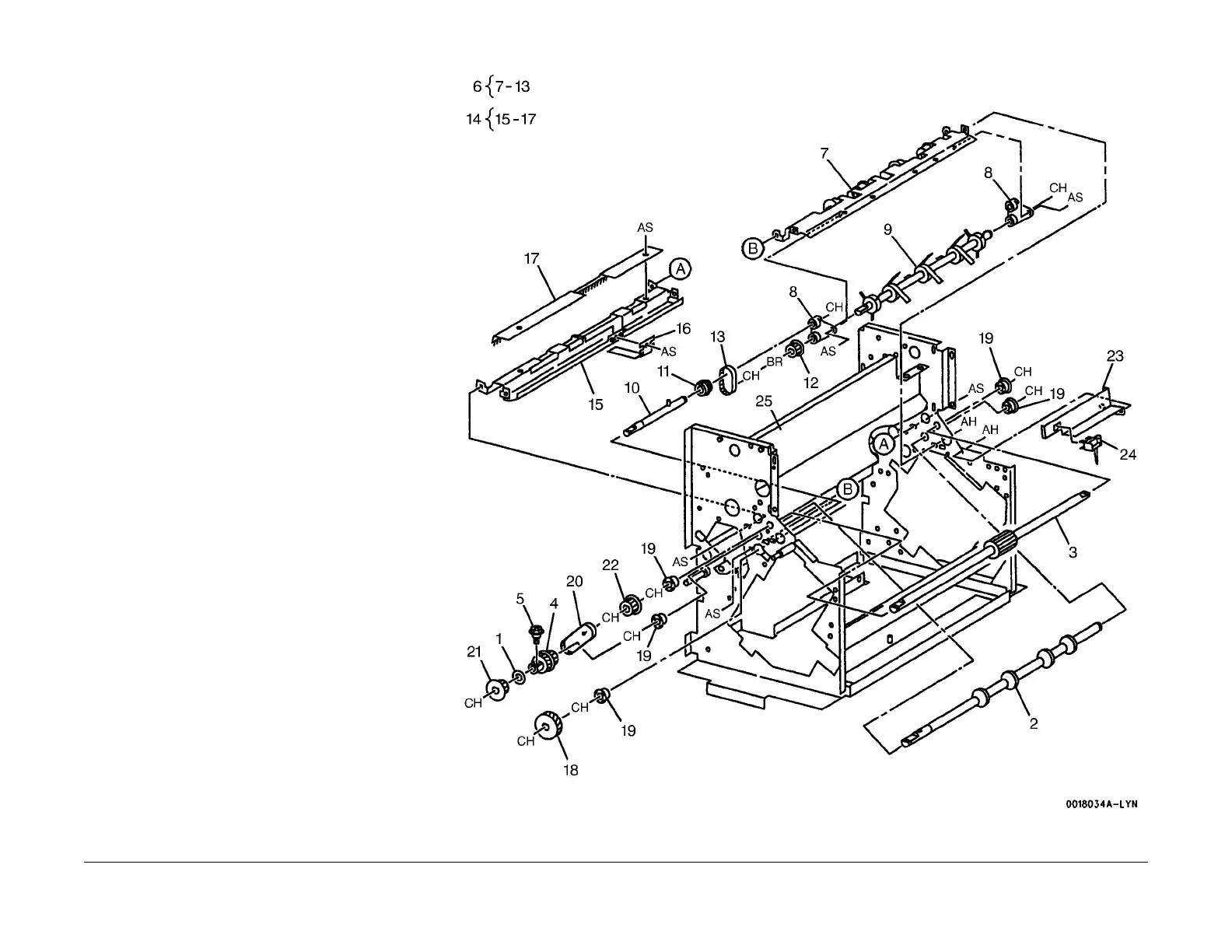

PL 18.14 Stapler - Exit Chute
Item Part Description
1 – Collar (Not Spared)
2 006K83590 Exit Roll (REP 15.2.25)
3 006K83620 Reverse Paddle Drive Shaft
4 007E45120 Gear Pulley
5 – Screw (Not Spared)
6 054K09360 Lower Exit Chute Assembly (REP
15.
2.26)
7 054K094
62 Lower Exit Chute
8 – Bearing (P/O PL 18.14 Item 6)
9 – Compiler Paddle (P/O PL 18.14
I
tem 6) (REP
15.2.26)
10 – Paddle Drive Shaft (P/O PL 18.14
It
em
6)
11 – Pulley (P/O PL 18.14 Item 6)
12 – Pulley (P/O PL 18.14 Item 6)
13 423W23354 Compiler Paddle Belt
14 054K16770 Upper Exit Chute Assembly (REP
15.
2.24)
15 – U
pper Exit Chute (P/O PL 18.14
I
tem 14)
16 – P
late Spring (P/O PL 18.14 Item
14)
17 105K18810 Static Eliminator
18 407W08174 Gear
19 – Bearing (Not Spared)
20 423W24953 Belt
21 020E33860 Pulley
22 499W15121 Pulley
23 – Sensor Bracket (Not Spared)
24 130K94740 Compiler Entrance Sensor (REP
15.
2.30)
25 – T
ie Plate (Not Spared)
