Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-149
DocuColor 12/DCCS50
PL 18.15
Finisher/Sorter
Reissue

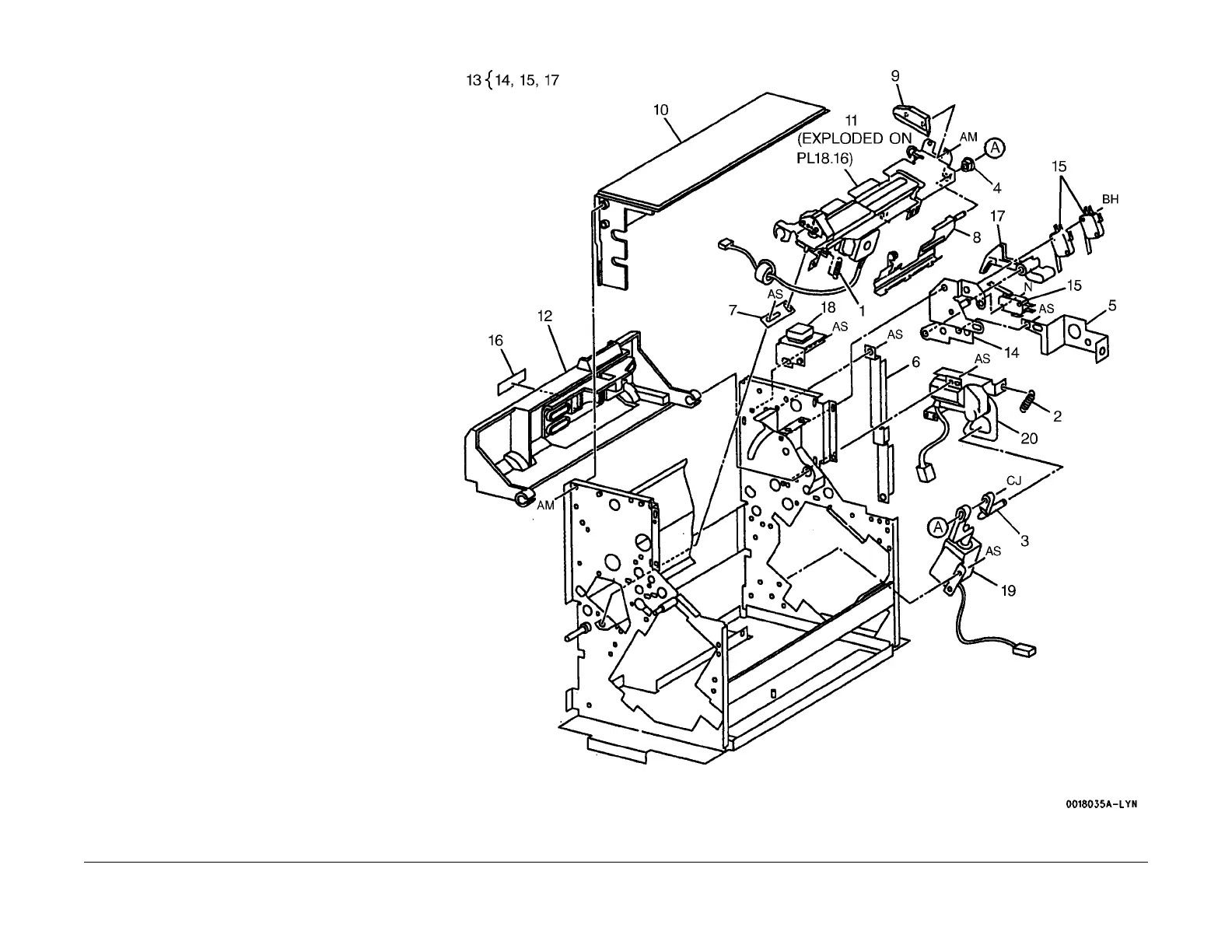

PL 18.15 Stapler-Compiler
Item Part Description
1 009E72530 Spring
2 009E72550 Spring
3 012E94950 Link
4 013E13600 Bearing
5 – Support (Not Spared)
6 – Harness Holder (Not Spared)
7 – Registration Guide (Not Spared)
8 038K83030 End Guide
9 – Guide (Not Spared)
10 – Eject Cover (Not Spared)
11 050K41330 Compiler Tray Assembly (REF: PL
18.
16)
12 054K093
82 Compiler Exit Cover (REP 15.2.22)
13 110K10710 Switch Assembly
14 – Switch Bracket (P/O PL 18.15 Item
13)
15 110E94510 Compiler Cover Safety Switch (1
Place)
, Compiler Cover I
nterlock
Switch (2 Places)
16 – Label (Not Spared)
17 120E99661 Actuator
18 110K08140 Unload While Run Switch (REP
15.
2.29)
19 121K130
70 Compiler Tray Solenoid (REP
15.
2.1)
20 127K233
20 End Wall Motor (REP 15.2.16)
