Xerox DocuColor 12/DCCS50

1/05
8d-150
DocuColor 12/DCCS50
PL 18.16
Reissue
Finisher/Sorter

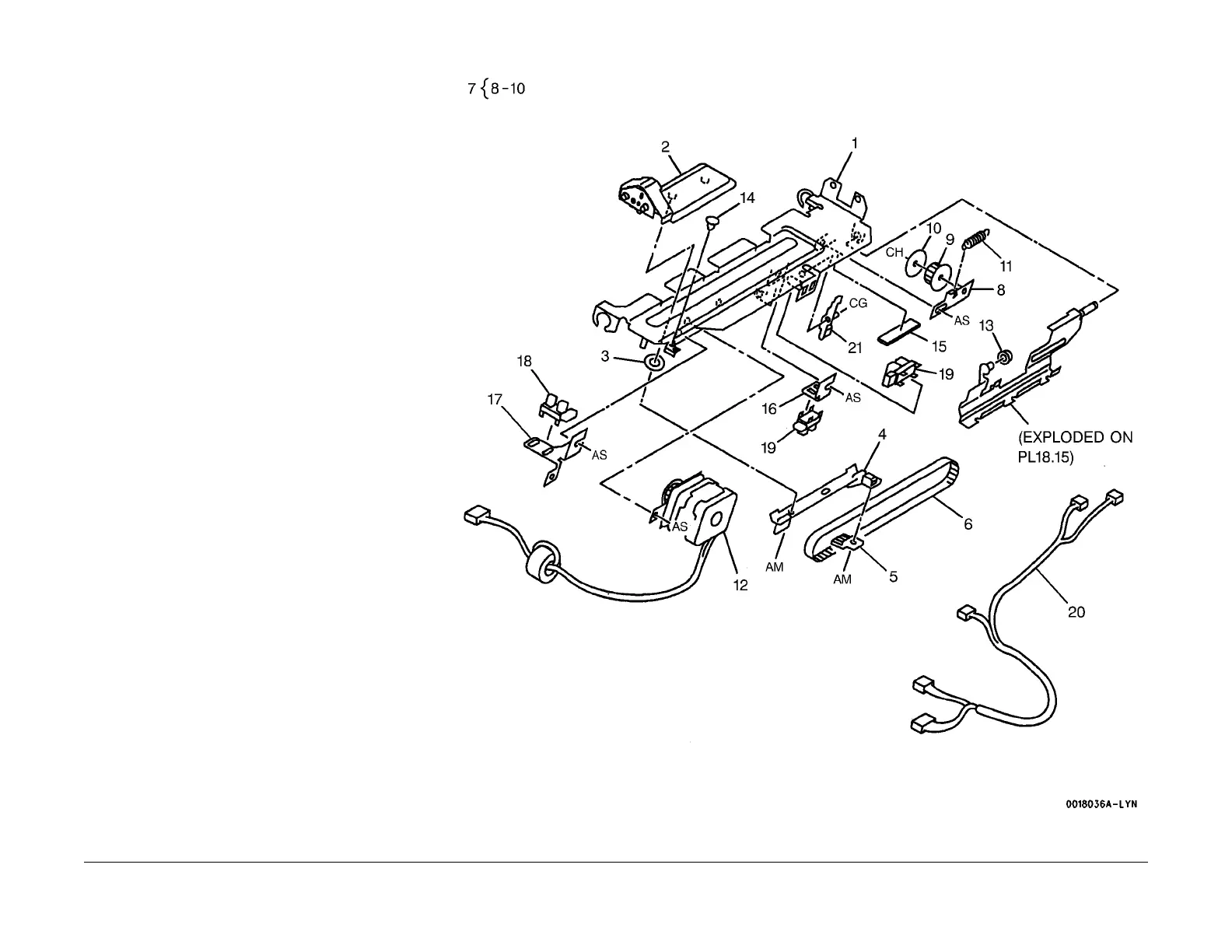

PL 18.16 Compiler Tray Components
Item Part Description
1 – Compiler Tray (Not Spared)
2 038K83340 Tamper
3 – Actuator (Not Spared)
4 – Holder (Not Spared)
5 – Belt Clip (Not Spared)
6 423W21053 Tamper Drive Belt (REP 15.2.15)
7 015K28290 Tension Pulley Assembly
8 – Bracket (P/O PL 18.16 Item 7)
9 – Pulley (P/O PL 18.16 Item 7)
10 005E91640 Flange
11 009E72520 Spring
12 127K20871 Tamper Motor (REP 15.2.11)
13 – Bearing (Not Spared)
14 004E08030 Damper
15 – Damper (Not Spared)
16 – Sensor Bracket (Not Spared)
17 – Sensor Bracket (Not Spared)
18 130E82530 Tamper Home Sensor (REP
15.
2.12)
19 130E825
40 Compiler Paper Sensor (REP
15.
2.13),
End Wall Open Sensor
(REP 15.2.16)
20 – Wire Harness (Not Spared)
21 120E99480 Actuator (Not Spared)
