DocuColor 12/DCCS50
Edit Pad Installation
Reissue
Installation Instructions

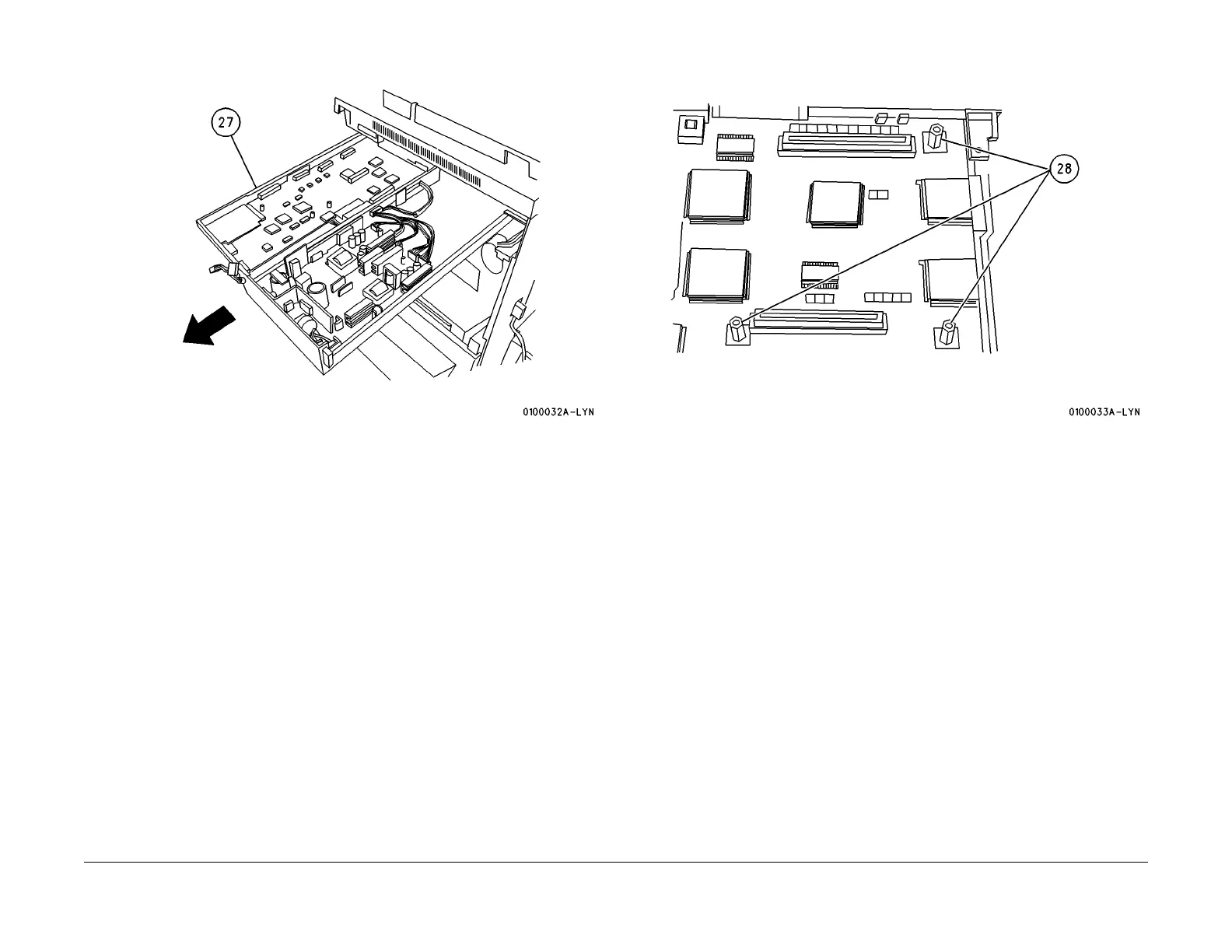

Figure 7 Open the IPS PWB Drawer
28. Remove the (3) screws securing the Post IPS PWB. (save the screw) Install the (3)
mounting s
tand-offs, supplied in the kit, in the screw holes. (Figure 8)
Figure 8 Install the Stand-offs
29. Install the IPS-EDIT PWB, supplied in the kit, on the mounting stand-offs and secure with
the screws removed in step 28. (Figure 9)
