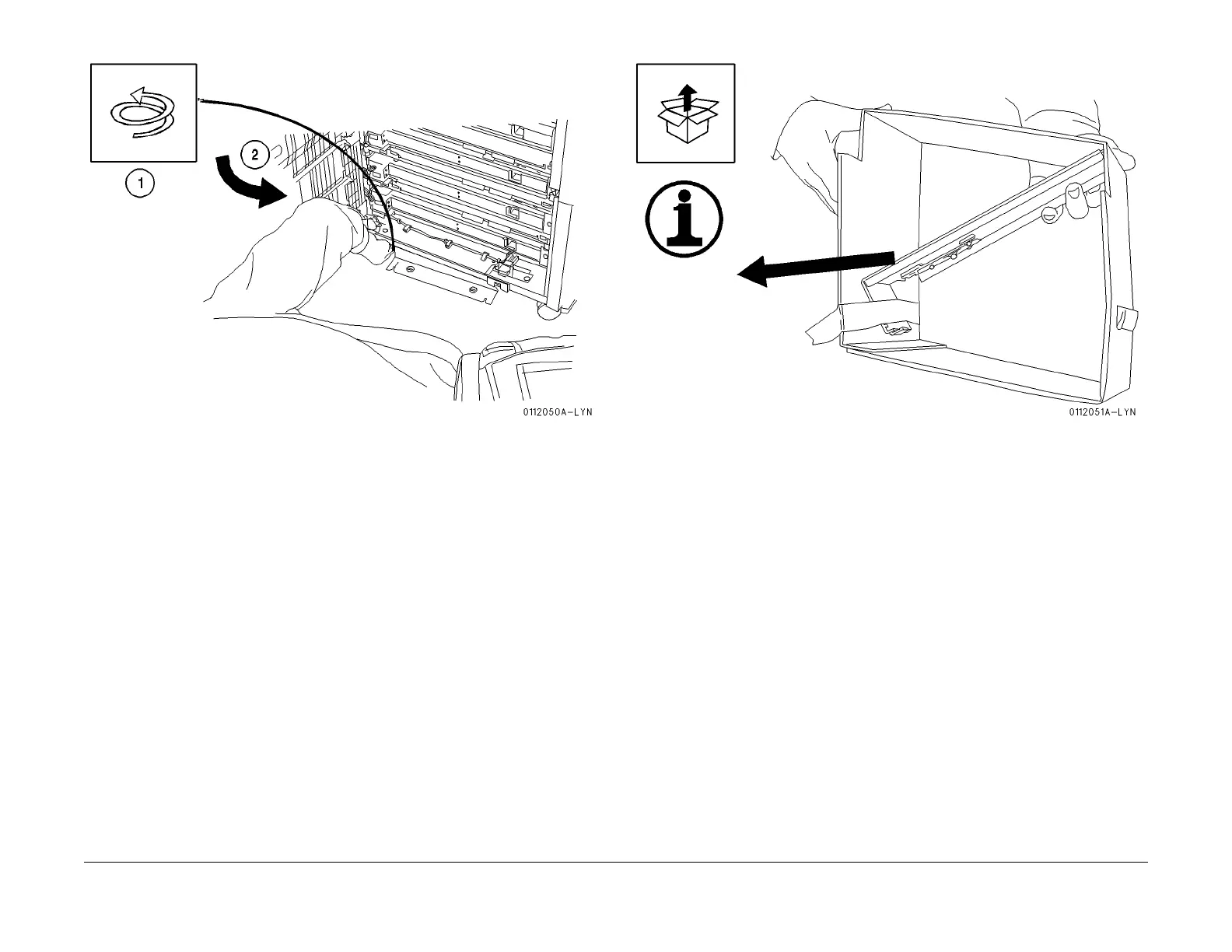

Figure 11 Secure the Bracket
NOTE: The paper size guide is found inside the HCF drawer. It is held in place by a magnet
under the
top edge, as well as top and bottom tabs.
12. Unpack the paper size guide (Figure 12).
F
igure 12 Unpack the Paper Size Guide
NOTE: The paper size guide can be set for either 8.5 x 11 or A4.
13. 1. Align the bottom guide tabs with the appropriate slots on the HCF (Figur
e 13).
2. Align the top guide tabs with the appropriate indicator slots on the HCF.
