Xerox DocuColor 12/DCCS50

1/05
9-23
DocuColor 12/DCCS50
Installation Instructions
Reissue

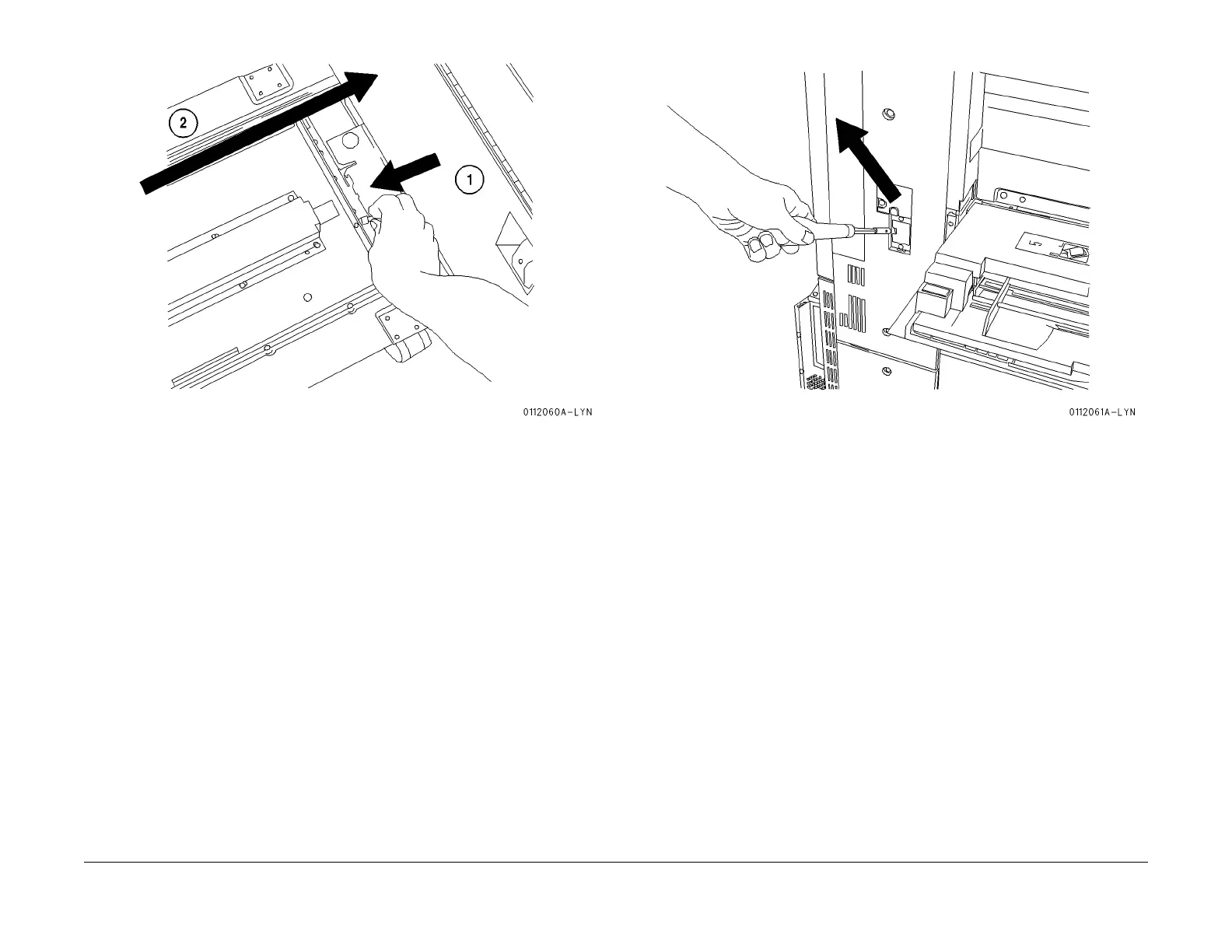

Figure 21 Store the Wrench
22. Remove the lower knockout on the processor (to the rear of the bypass tray) (Figure 22
).
Figure 22 Remove the Knockout
23. Connect the HCF harness to the processor (Figure 23).
