DocuColor 12/DCCS50
Convenience Stapler Installation
Installation Instructions
Reissue
Convenience Stapler Installation
Procedure
NOTE: The wing with convenience stapler may come pre assembled.

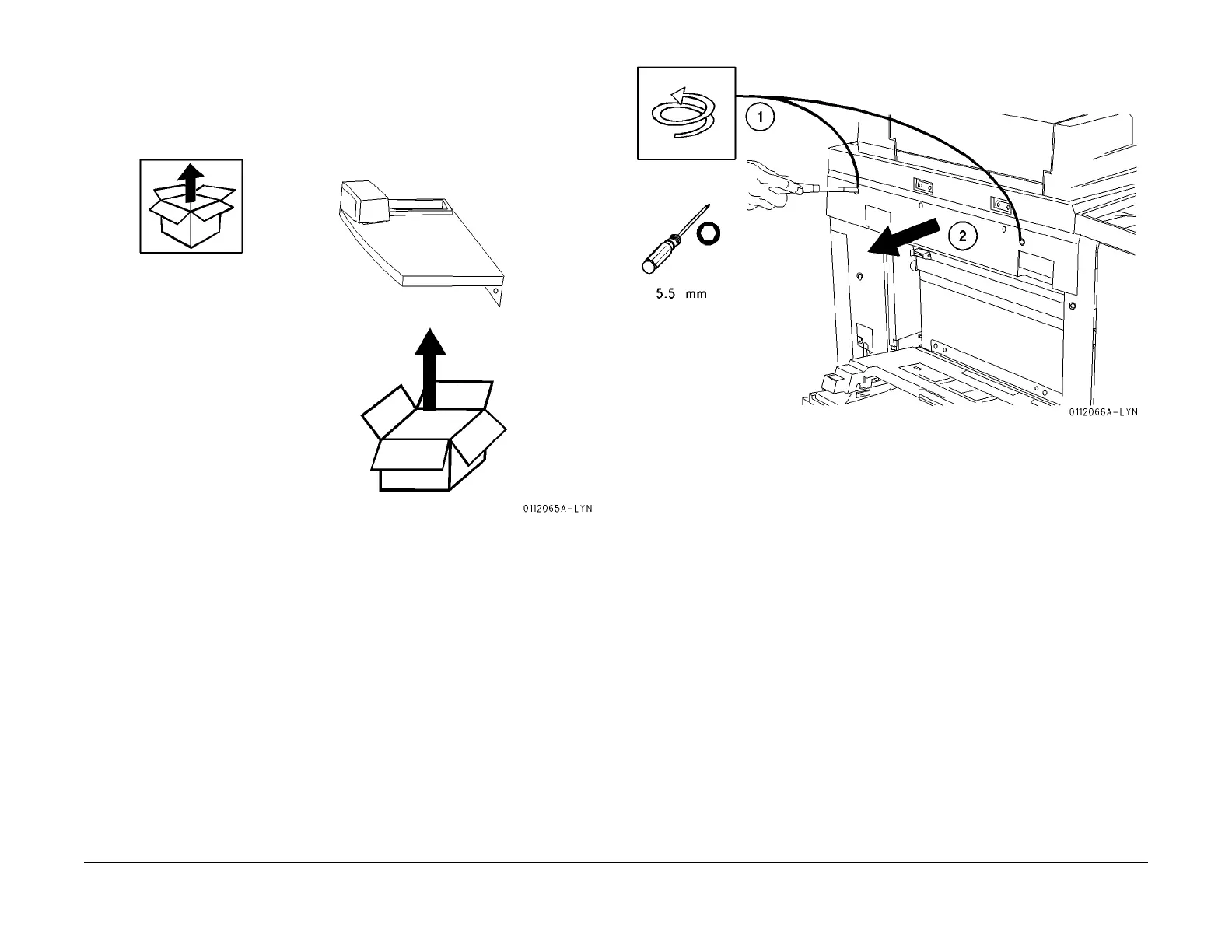

1. Unpack the wing with convenience stapler and hardware (Figure 1
).
Figure 1 Unpack
2. 1. Remove the two 5.5 mm screws (Figu
re 2).
2. Remove the upper left side panel.
Figure 2 Remove the Screws
3. 1. Remove the two 5.5 mm screws (F
igure 3
).
2. Remove the mounting bracket from the Convenience Stapler.
