Xerox DocuColor 12/DCCS50

1/05
9-26
DocuColor 12/DCCS50
Convenience Stapler Installation
Reissue
Installation Instructions

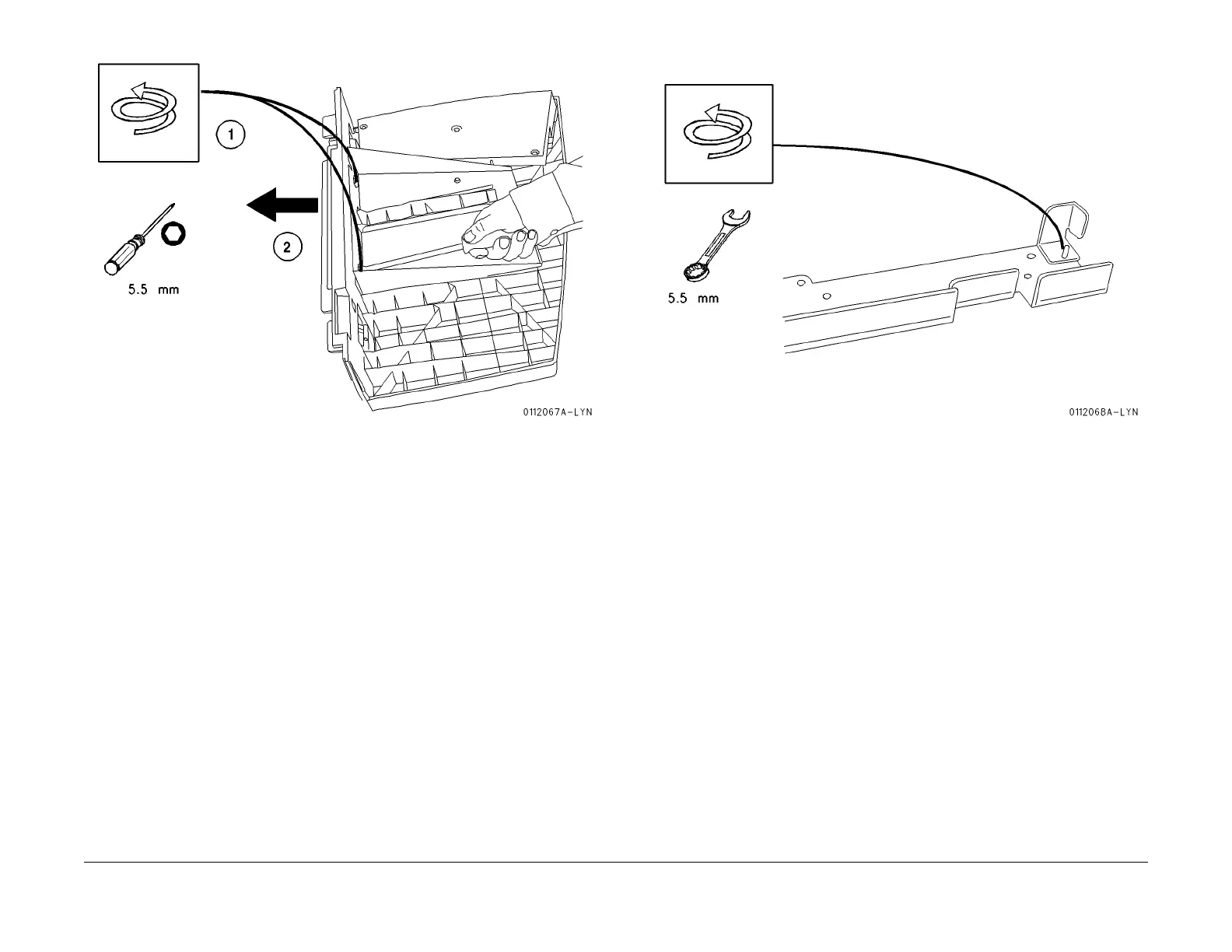

Figure 3 Remove the Screws
4. Remove the corner support bracket attached to the wing with convenience stapler (Figure
4).
F
igure 4 Remove the Corner Support Bracket
5. 1. Slip the corner support bracket into the opening at the left rear (Figure 5).
2. Insert the tab on the bracket through the hole in the frame.
