1/05
9-32
DocuColor 12/DCCS50
Convenience Stapler Installation
Reissue
Installation Instructions

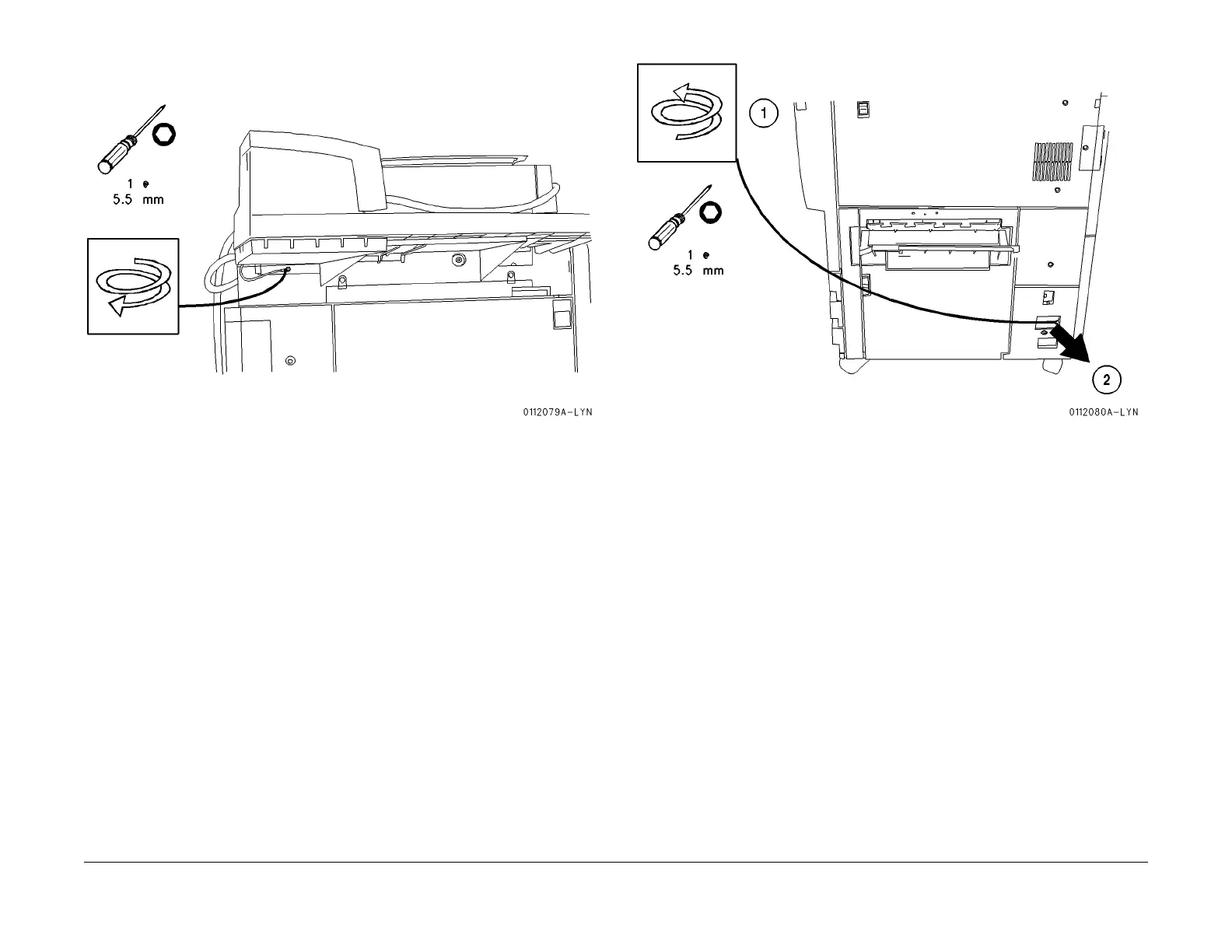

Figure 15 Attach the Ground Strap
16. 1. Remove the screw (Figu
re 16).
2. Remove the cutout.
Figure 16 Prepare the Cutout
17. Connect the stapler power cord to the processor (Figure 17).
