Xerox DocuColor 12/DCCS50

1/05
9-31
DocuColor 12/DCCS50
Convenience Stapler Installation
Installation Instructions
Reissue

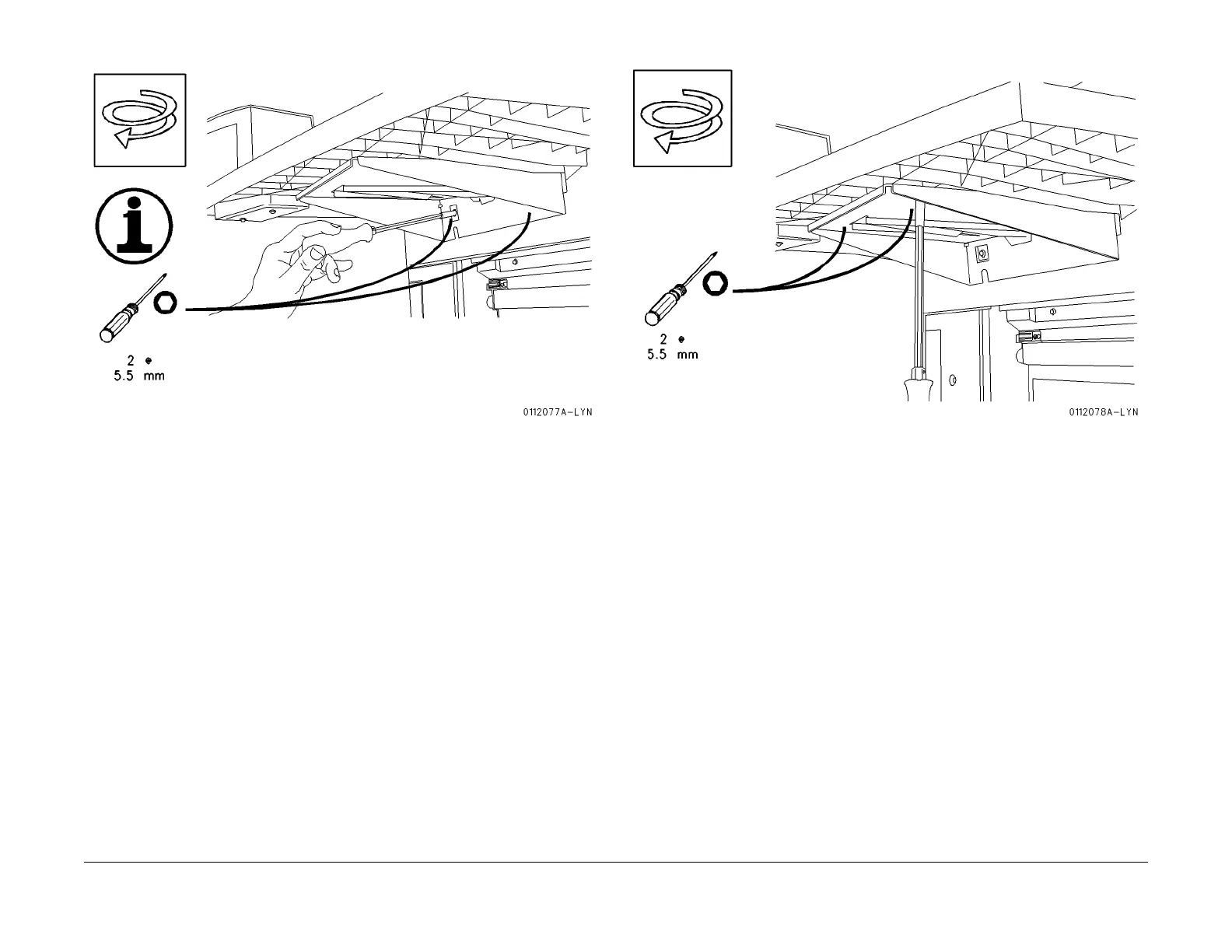

Figure 13 Attach the Stabilizer Bracket
14. Attach the stabilizer bracket to the wing with convenience stapler using two 5.5 mm
screws (F
igure 14).
Figure 14 Install the Stabilizer Bracket
15. Attach the convenience stapler ground strap to the processor (Figure 15).
