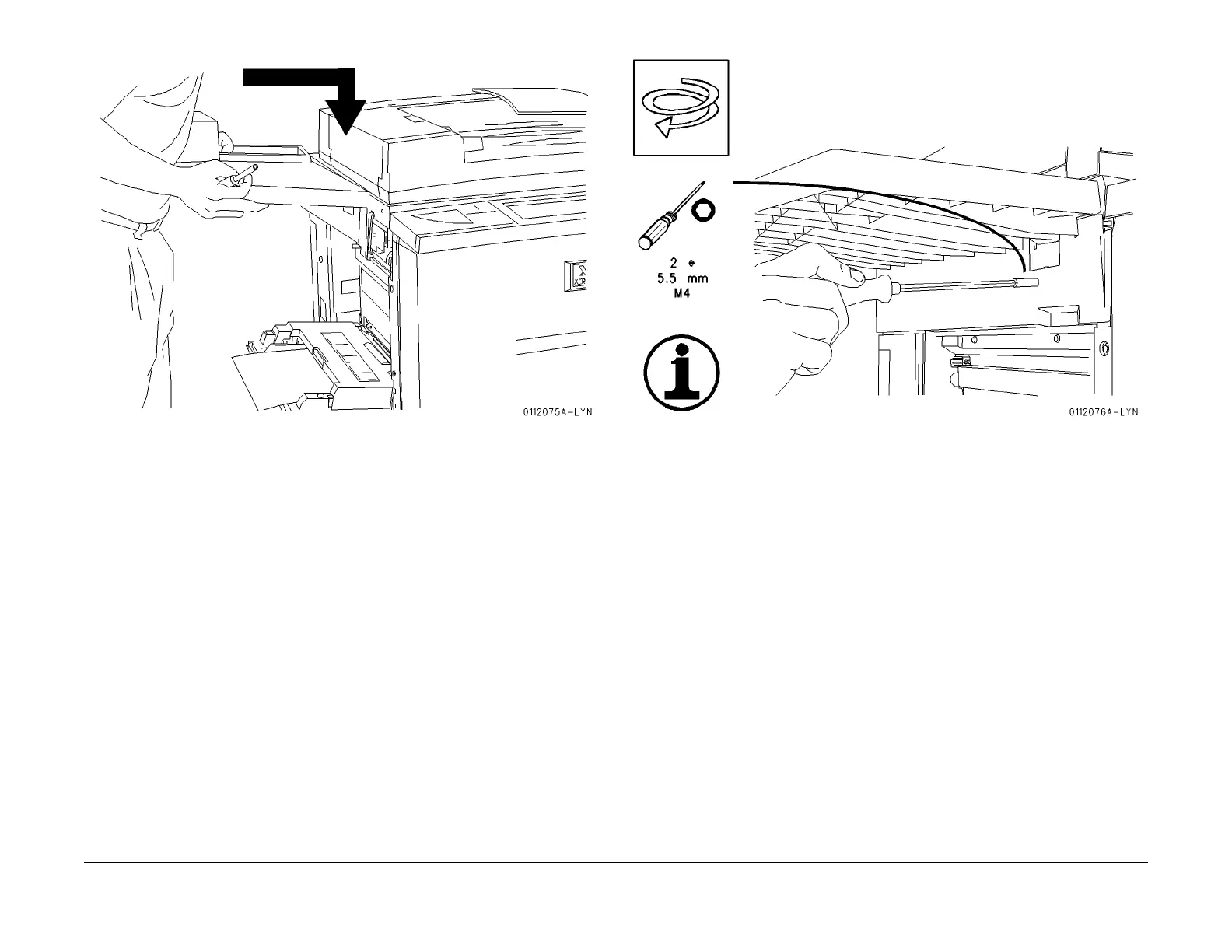

Figure 11 Install the Wing
NOTE: Be sure to attach the wing with convenience stapler through the mounting bracket and
into
the corner support bracket.
12. Install two 5.5 mm M4 screws to secure the wing with convenience stapler to the mount-
ing bracket (Fi
gu
re 12).
Figure 12 Secure the Wing
13. Install the stabilizer bracket and secure using two 5.5 mm screws (Fi
gu
re 13).
