DocuColor 12/DCCS50
Installation Instructions
Reissue

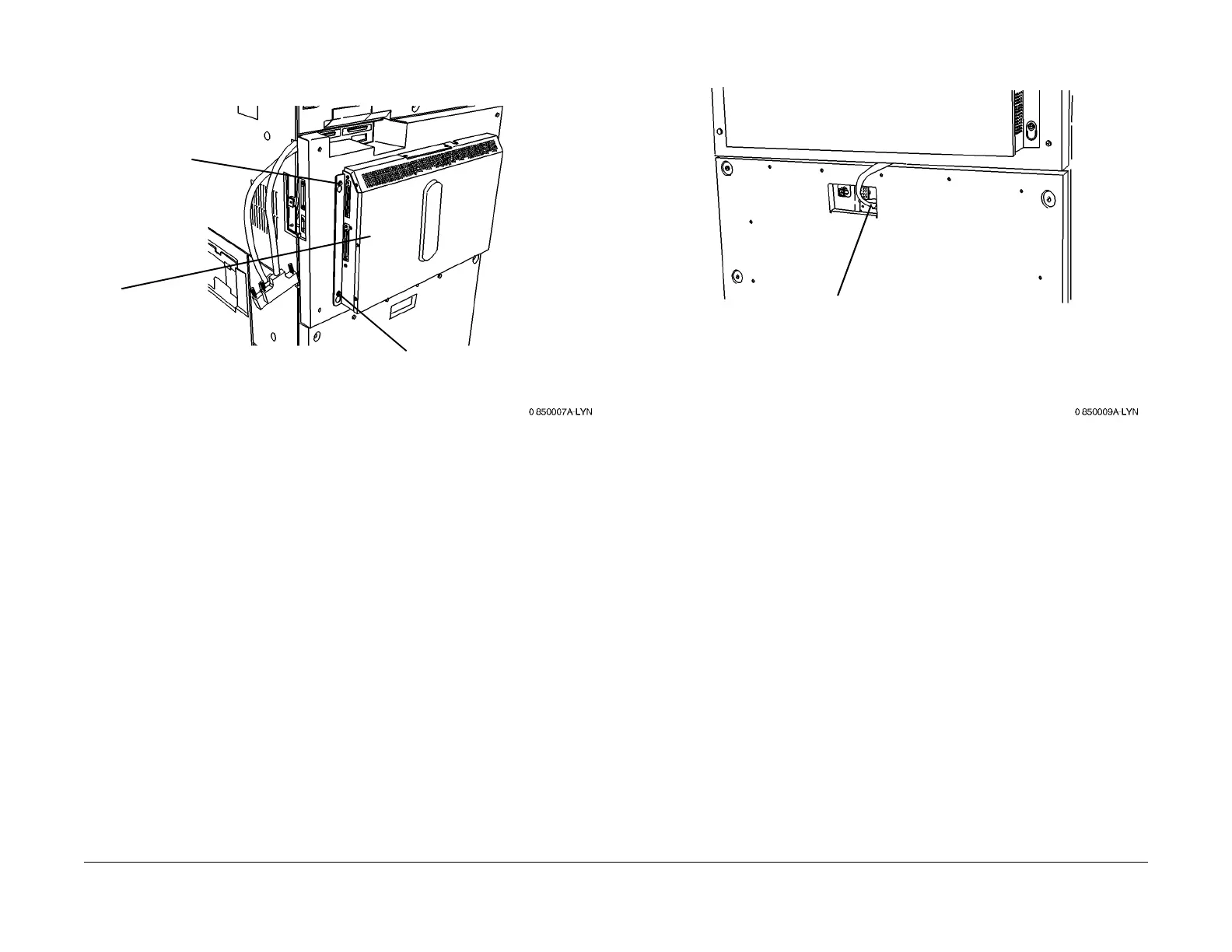

Figure 6 Installing the EPC Assembly
3. Remove the Connector Cover, if present (PL 11
.3 Item 12).
Figure 7 Connecting EPC DC Power
4. Connect the EPC DC Power connector (Figure 7):
5. Connect the Scan Cable (Figur
e 8):
1
Install the EPC
Assembly
2
Secure the upper
screws (2)
3
Install the
remaining lower
screws (2)
1
Connect the EPC DC Power
Connector
