1/05
10-25
DocuColor 12/DCCS50
Electri
cal Interlocks
Principles of Operation
Reissue

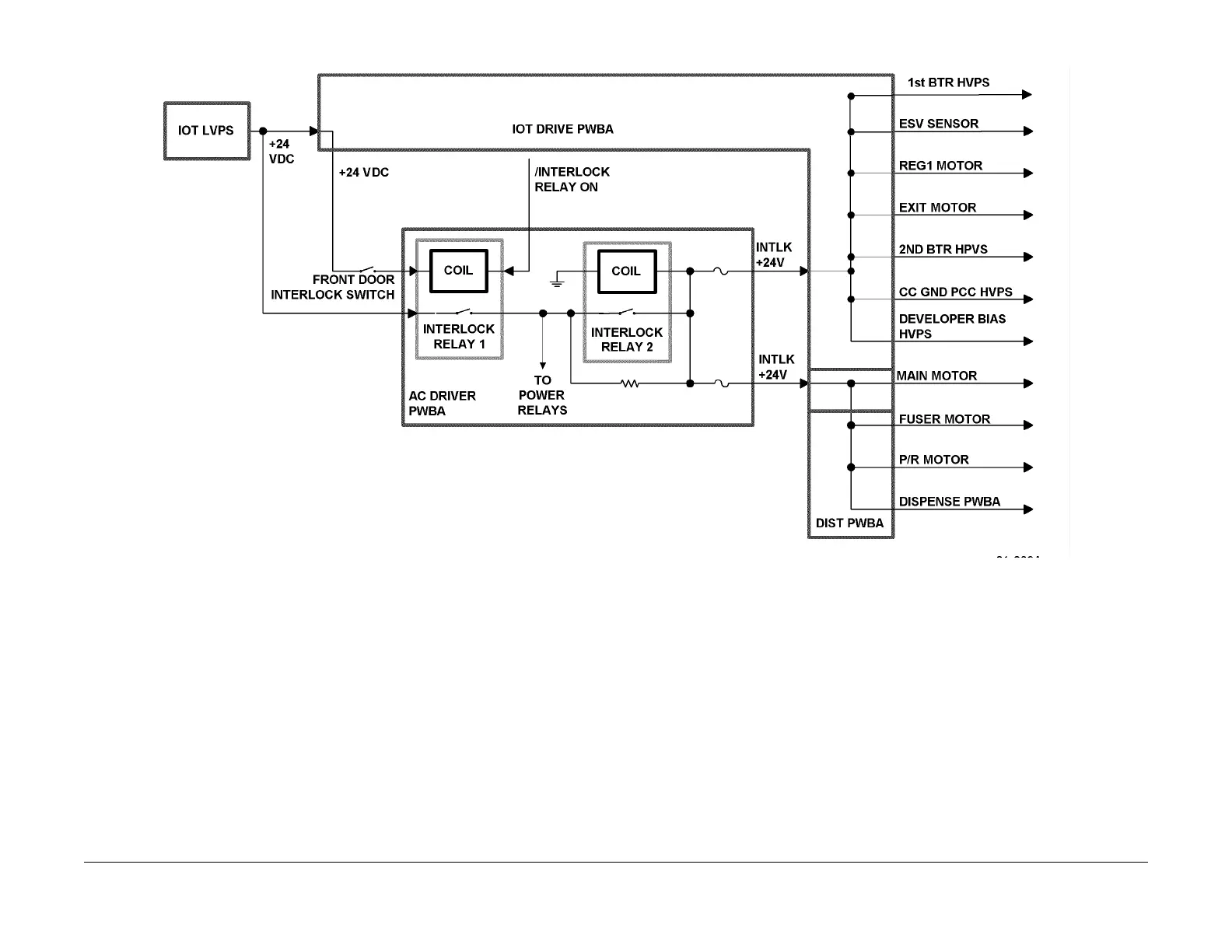

Figure 4 Front
Door & Drawer
+24 VDC Power Interlo
ck Signal Flow
1444
1446
