DocuColor 12/DCCS50
Overview
Principles of Operation
Reissue
Overview
The paper supplies for the DocuColor 12 and the DocuCentre Color Series 50 machines are
the same. They consist of four (4) Paper Trays and a bypass tray (Tray 5) for single feeding or
special weights of copy material. Refer to Figure 1
This Paper Supply chapter will describe up to the point where the paper or copy material is
ready
to
feed into the paper path. Chapter 7 includes:
• Paper Tray Specifications
• Paper Size Sensing
• Tray Level Lift and Sensing
• No Paper Sensing
• Tray 5
Re
fer to Chapter 8 for paper transportation issues.

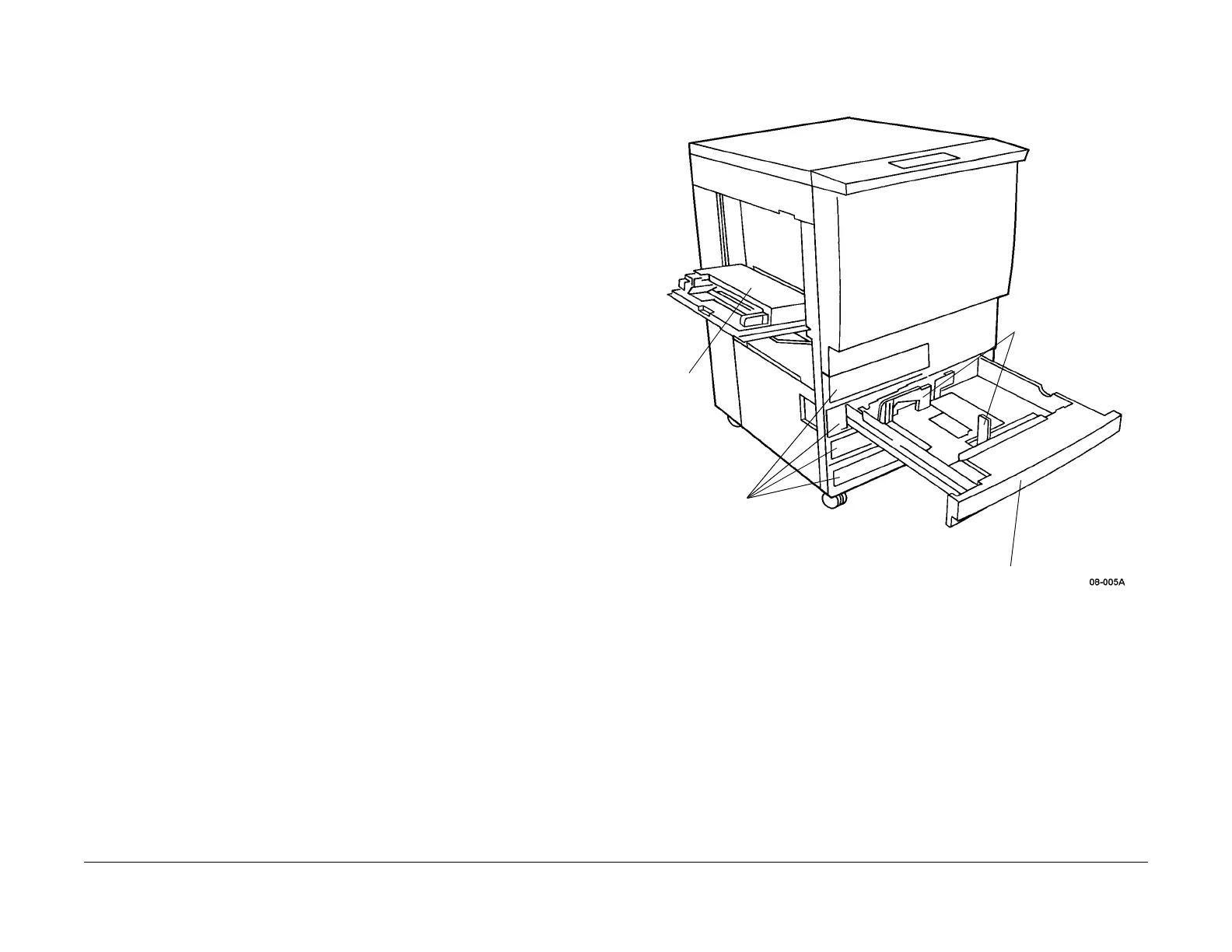

Figure 1 Paper Supply Trays
Tray 5
Paper Trays 1-4
Tray 2
Paper Size Guides
