DocuColor 12/DCCS50
Photoreceptor Exposure
Reissue
Principles of Operation

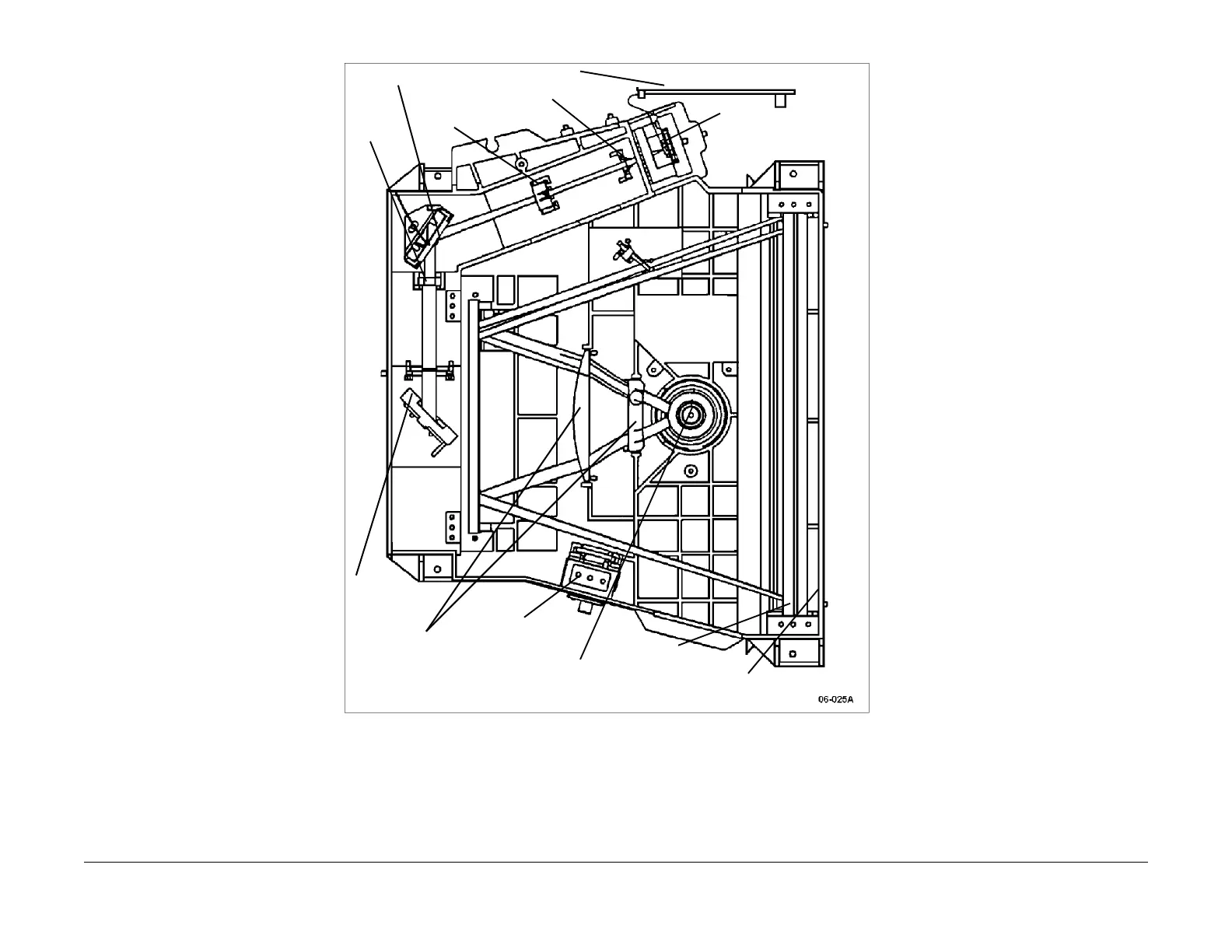

Figure 2 ROS Components Locations
LDD PWBA
DUAL SPOT LD
SLIT
MIRROR
MIRROR
START-OF- SCAN
PWBA
MIRROR
CYLINDER
MOTOR
POLYGON
ASSY
CYLINDER
LENS
SOS PICKUP
LENS
HOUSING
LENSES
