DocuColor 12/DCCS50
End Wall Motor
Reissue
Principles of Operation
End Wall Motor
The End Wall Motor raises and lowers the Compiler Tray End Wall (Figure 1). When paper is
sent to the Compiler Bin, the Finisher PWB switches on the End Wall Motor. The End Wall
Motor raises the End Wall of the Compiler Tray. When a set of paper is collected in the Com-
piler Bin and the set is ready to be sent to the Stapler, the End Wall Motor lowers the End Wall
t
o allow t
he paper set to move to the Stapler.

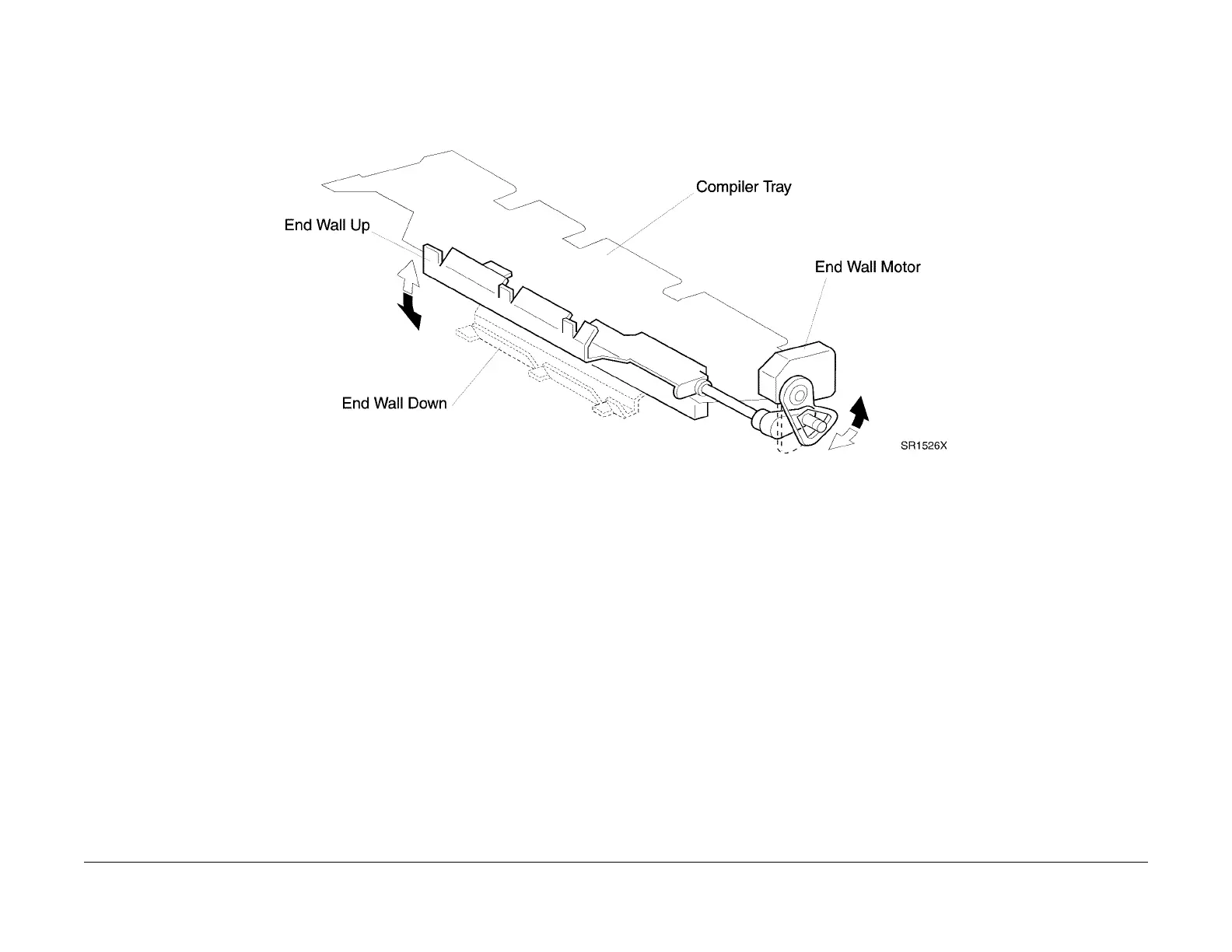

Figure 1 Compiler End Wall and Its Associated Components
End Wall Mechanical Drive Components
1. End Wall Motor
A +24 VDC stepper motor. Raises and lowers the End Wall.
2. End Wall
Raised to close off the end of the Compiler Tray. Lowered to open the end of the Compiler
Tray
and allow the paper set to move to the Stapler.
